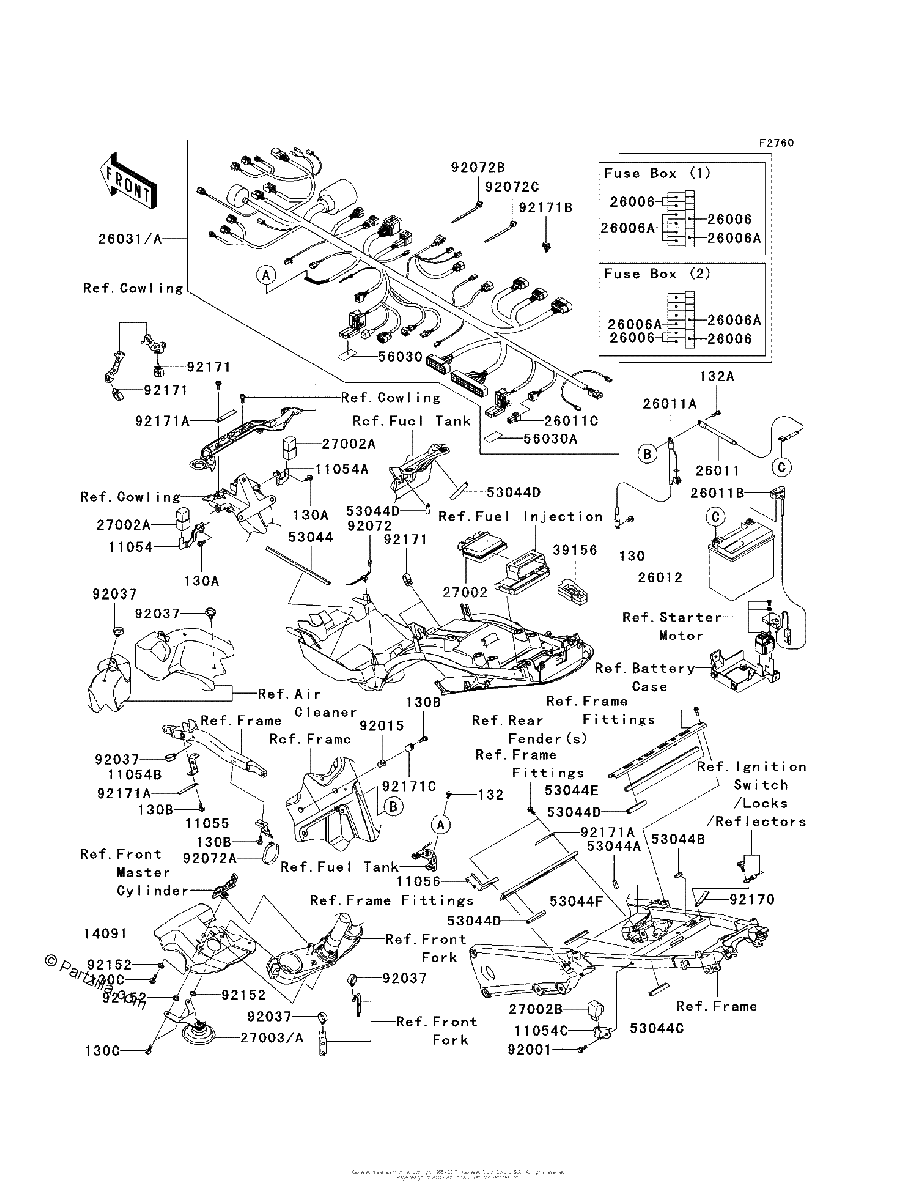

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.16¢581
#130A
BOLT FLANGED,6X14
$1.16¢581
#130B
BOLT FLANGED,6X16
$1.16¢581
#130C
BOLT-FLANGED,6X18
$1.40¢701
#132
BOLT-FLANGED-SMALL,6X12
$1.16¢581
#132A
BOLT FLANGED SMALL,6X16
$1.39¢696
#11054
BRACKET,RELAY,Left Hand
$15.50¢7 751
#11054A
BRACKET,RELAY,RH
$15.50¢7 751
#11054B
BRACKET,HARNESS
$9.11¢4 554
#11054C
BRACKET,SIGNAL LAMP RELAY
$9.42¢4 709
#11055
BRACKET,HARNESS
$10.70¢5 348
#11056
BRACKET,HARNESS
$10.66¢5 330
#14091
COVER,RADIATOR
$45.60¢22 799
#26006
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
#26006A
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
#26011
WIRE LEAD,BATTERY( )
$32.51¢16 255
#26011A
WIRE-LEAD,BATTERY(-)
$36.12¢18 061
#26011B
WIRE LEAD,BATTERY(+)
$62.54¢31 269
#26011C
WIRE-LEAD,CAP
$15.06¢7 532
#26012
BATTERY,FTZ14 BS,12V 14AH
No Disponible
#26031
HARNESS,MAIN
$1206.19¢603 094
#26031
HARNESS,MAIN
$1142.71¢571 354
#27002
RELAY-ASSY,BOX
No Disponible
#27002A
RELAY Assembly
$38.66¢19 332
#27002B
RELAY Assembly,TURN SIGNAL
$80.72¢40 359
#27003
HORN
$89.63¢44 815
#27003
HORN
$95.08¢47 541
#39156
PAD,DIAG COUPLER
$12.12¢6 060
#53044B
TRIM,L=22
$2.92¢1 461
#53044C
TRIM,L=60
$7.99¢3 996
#53044D
TRIM,L=60
$6.15¢3 076
#53044E
TRIM,AIR DUCT COVER
$12.37¢6 187
#53044F
TRIM,L=75
$9.92¢4 962
#53044A
TRIM,L=15
$2.92¢1 461
#53044
TRIM,L=220
$13.95¢6 975
#56030A
LABEL,FUSE BOX
$3.94¢1 972
#56030
LABEL,FUSE BOX1
$3.76¢1 880
#92001
BOLT,6X20
$3.63¢1 817
#92015
NUT
$7.84¢3 922
#92037
CLAMP,HOSE
$6.82¢3 410
#92072A
BAND,L=140
$6.30¢3 151
#92072B
BAND
$3.40¢1 702
#92072C
BAND
$3.40¢1 702
#92072
BAND
$2.92¢1 461
#92152
COLLAR,6.5X10X5.6
$4.48¢2 242
#92170
CLAMP
$2.14¢1 070
#92171A
CLAMP,L=60
$2.22¢1 110
#92171B
CLAMP
$11.38¢5 693
#92171
CLAMP,CLIP,DIA=20
$2.46¢1 231
#92171C
CLAMP
$9.11¢4 554
