FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

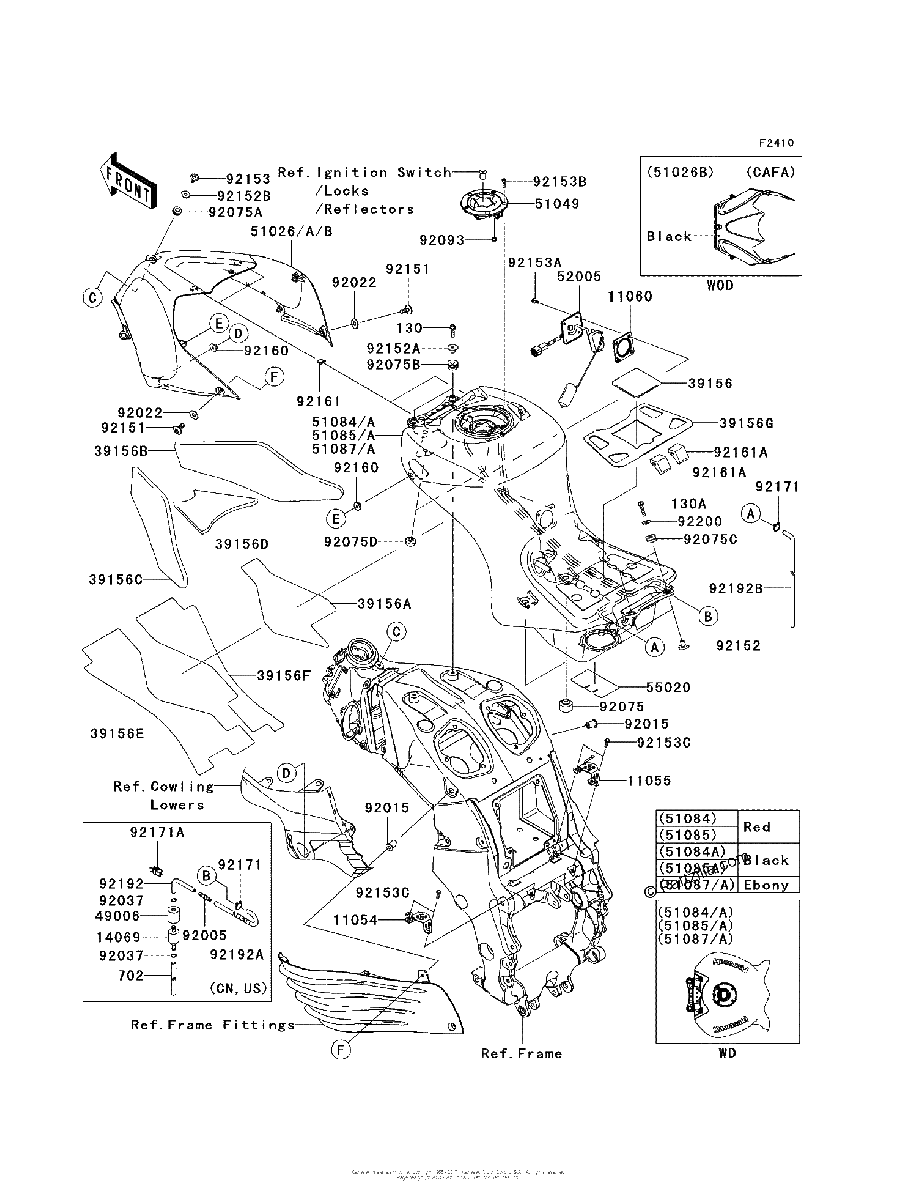

Diagrama de FUEL TANK

Repuestos

#130
130BA0625
BOLT FLANGED,6X25
$1.26¢631
1
#130A
130BA0630
BOLT-FLANGED,6X30
$1.47¢737
1
#702
702A07200
TUBE RUBBER,7X10X200
$13.16¢6 581
1
#11054
11054-0681
BRACKET,FUEL TANK,CNT,Left Hand
$10.97¢5 488
1
#11055
11055-0063
BRACKET,FUEL TANK,CNT,RH
$13.38¢6 688
1
#11060
11060-1952
GASKET,FUEL GAUGE
$22.34¢11 169
1
#14069
14069-1051
BREATHER
$10.11¢5 056
1
#39156A
39156-0147
PAD,FUEL TANK,CNT
$10.26¢5 131
1
#39156E
39156-0173
PAD,FUEL TANK,Left Hand
$53.25¢26 625
1
#39156D
39156-0161
PAD,FUEL TANK COVER,CNT
$17.78¢8 888
1
#39156C
39156-0160
PAD,FUEL TANK COVER,LH
$25.54¢12 769
1
#39156
39156-0129
PAD,SEAT
$6.13¢3 063
1
#39156B
39156-0159
PAD,FUEL TANK COVER,Right Hand
$25.54¢12 769
1
#39156F
39156-0174
PAD,FUEL TANK,RH
$53.25¢26 625
1
#39156G
39156-0592
PAD,FUEL TANK
$9.74¢4 869
1
#49006
49006-1267
BOOT,BREATHER
$8.66¢4 331
1
#51026
51026-0007-A5
COVER TANK,FUEL,C P RED
$392.25¢196 125
1
#51026
51026-0007-H8
COVER TANK,FUEL,EBONY
$371.85¢185 925
1
#51026
51026-0007-660
COVER TANK,FUEL,M S BLACK
$358.86¢179 431
1
#51049
51049-0039
CAP TANK,FUEL
$173.86¢86 931
1
#51084
51084-5441-660
TANK COMP FUEL,M S BLACK
No Disponible
1
#51084
51084-5441-A5
TANK COMP FUEL,C P RED
$1604.03¢802 013
1
#51085
51085-5351-660
TANK COMP FUEL,M S BLACK
No Disponible
1
#51085
51085-5351-A5
TANK COMP FUEL,C P RED
$1607.90¢803 950
1
#51087
51087-5033-H8
TANK COMP FUEL,EBONY
No Disponible
1
#51087
51087-5034-H8
TANK COMP FUEL,EBONY
$1604.03¢802 013
1
#52005
52005-0026
GAUGE,FUEL
$267.95¢133 975
1
#55020
55020-0551
GUARD,FUEL TANK
$18.77¢9 388
1
#92005
92005-0096
FITTING | [US]
$10.13¢5 063
1
#92015
92015-1692
NUT,RUBBER,6MM
$7.30¢3 650
1
#92022
92022-1143
WASHER,6.5X16X1
$3.90¢1 950
1
#92037
92037-147
CLAMP,TUBE | [CA]
$7.30¢3 650
1
#92075A
92075-1634
DAMPER
$4.65¢2 325
1
#92075D
92075-281
DAMPER,9X24X14
$6.09¢3 044
1
#92075C
92075-209
DAMPER
$4.65¢2 325
1
#92075B
92075-1690
DAMPER,10X24X12
$4.96¢2 481
1
#92075
92075-015
DAMPER
$4.96¢2 481
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.72¢3 863
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.19¢1 094
1
#92152B
92152-0424
COLLAR
$6.21¢3 106
1
#92152A
92152-0365
COLLAR
$1.35¢675
1
#92152
92152-0364
COLLAR
$12.70¢6 350
1
#92153C
92153-1694
BOLT,FLANGED,6X20
$2.13¢1 063
1
#92153B
92153-1616
BOLT,SOCKET,5X16
$1.35¢675
1
#92153A
92153-1421
BOLT,FLANGED,5X12
$1.72¢862
1
#92153
92153-1267
BOLT,SOCKET,6X23
$2.58¢1 288
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92161A
92161-0458
DAMPER
$10.36¢5 181
1
#92161
92161-0365
DAMPER
$5.26¢2 631
1
#92171A
92171-1720
CLAMP | [CN,US]
$4.33¢2 163
1
#92171
92171-0573
CLAMP
$1.41¢706
1
#92192B
92192-0693
TUBE,DRAIN
$21.89¢10 944
1
#92192A
92192-0648
TUBE,BREATHER,UPP | [US]
$21.59¢10 794
1
#92192
92192-0615
TUBE,BREATHER,INNER
$6.79¢3 394
1
#92200
92200-0283
WASHER,6.5X20X1.6
$1.41¢706
1
