FUEL TANK 1 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

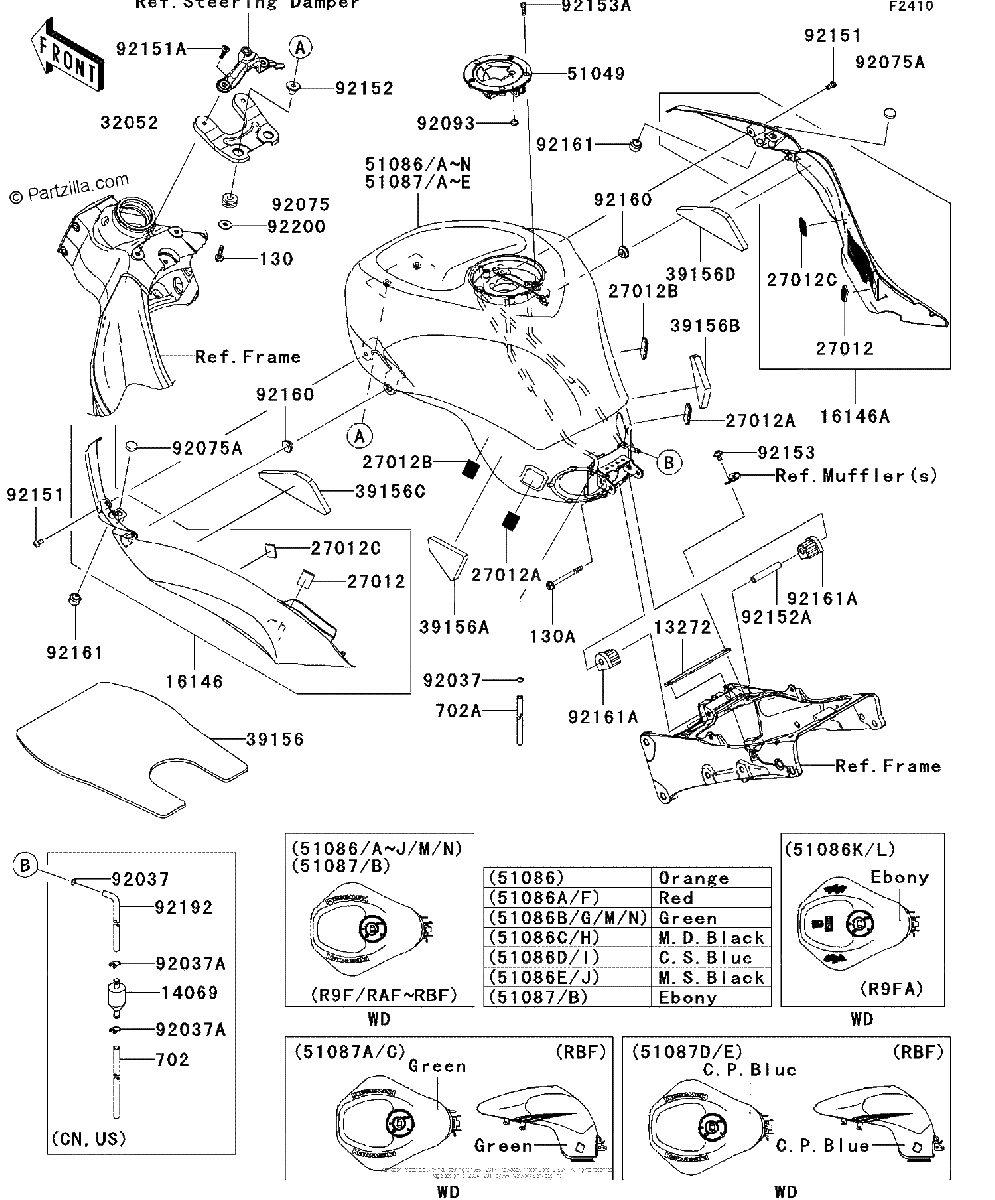

Diagrama de FUEL TANK 1 3

Repuestos

#13272
13272-0505
PLATE,FUEL TANK,Rear
$8.75¢4 375
1
#16146
16146-0112
COVER Assembly,KNEE GRIP,Left Hand
$69.35¢34 675
1
#16146A
16146-0113
COVER Assembly,KNEE GRIP,Right Hand
$69.35¢34 675
1
#27012
27012-0091
HOOK
$5.79¢2 894
1
#27012A
27012-0115
HOOK
$5.56¢2 781
1
#27012B
27012-0170
HOOK
$5.67¢2 838
1
#27012C
27012-0171
HOOK
$5.80¢2 900
1
#32052
32052-0131
BRACKET TANK,Front
$56.41¢28 206
1
#39156
39156-0469
PAD,FUEL TANK
$15.45¢7 725
1
#39156A
39156-0507
PAD,FUEL TANK,Left Hand
$3.79¢1 894
1
#39156B
39156-0508
PAD,FUEL TANK,Right Hand
$3.79¢1 894
1
#39156C
39156-0511
PAD,KNEE GRIP,Left Hand
$3.79¢1 894
1
#39156D
39156-0512
PAD,KNEE GRIP,Right Hand
$3.79¢1 894
1
#51049
51049-0030
CAP TANK,FUEL
$163.85¢81 925
1
