FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

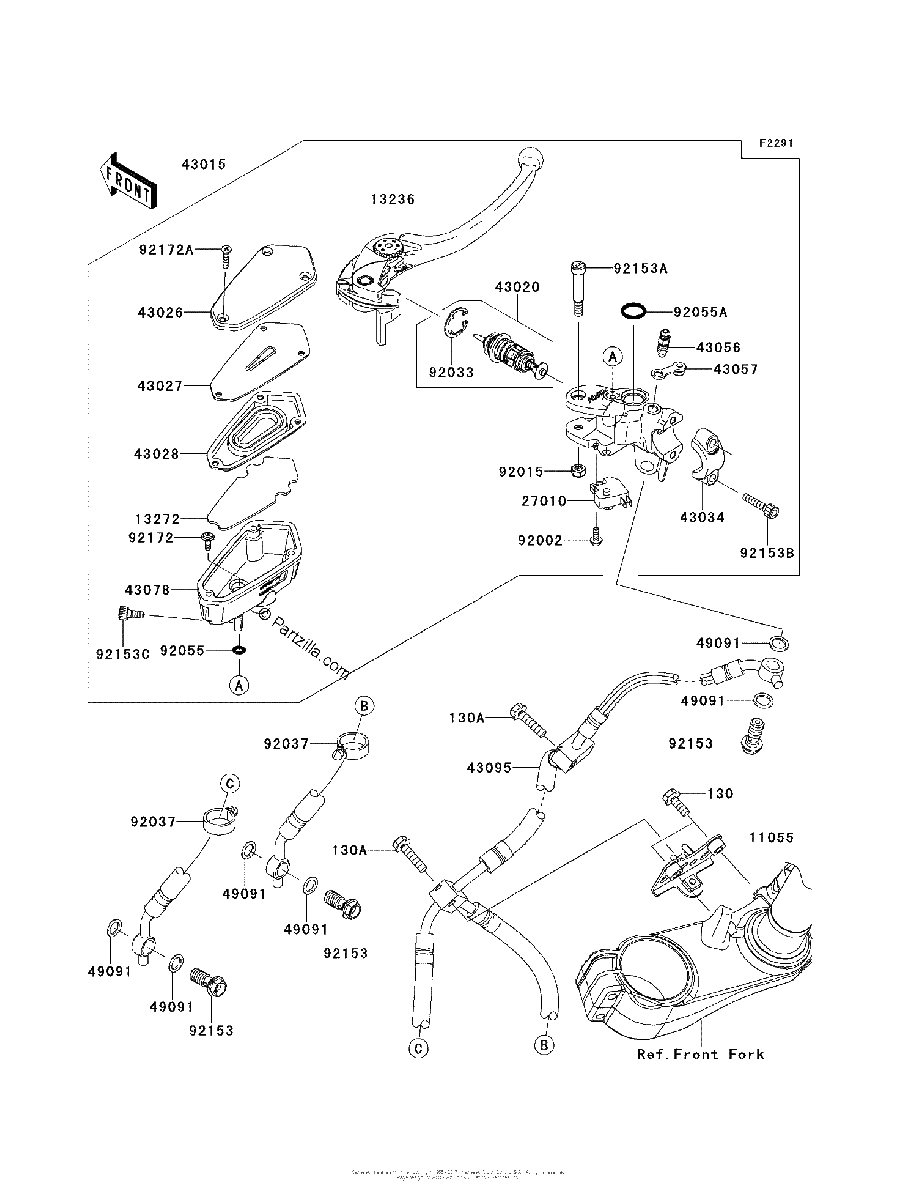

Diagrama de FRONT MASTER CYLINDER

Repuestos

#130
130BA0618
BOLT-FLANGED,6X18
$1.40¢701
1
#130A
130BB0625
BOLT-FLANGED,6X25
$2.21¢1 104
1
#11055
11055-1717
BRACKET,UNDER FORK
$38.51¢19 257
1
#13236
13236-0103
LEVER COMP,FRONT BRAKE
$74.85¢37 427
1
#13272
13272-0220
PLATE
$10.70¢5 348
1
#27010
27010-0025
SWITCH,BRAKE
$36.71¢18 354
1
#43015
43015-0148
CYLINDER Assembly MASTER,Front
$503.90¢251 948
1
#43020
43020-0010
PISTON-COMP-BRAKE
$69.08¢34 540
1
#43026
43026-0011
CAP-BRAKE
$83.08¢41 538
1
#43027
43027-0003
PLATE DIAPHRAGM
$8.77¢4 387
1
#43028
43028-0008
DIAPHRAGM
$16.62¢8 309
1
#43034
43034-0056
HOLDER BRAKE,MASTER CYLINDER
$23.25¢11 626
1
#43056
43056-1056
BREATHER BRAKE
$13.02¢6 509
1
#43057
43057-1001
CAP BREATHER
$4.47¢2 237
1
#43078
43078-0048
RESERVOIR
$99.19¢49 594
1
#43095
43095-0501
HOSE BRAKE,Front
$191.36¢95 680
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
1
#92002
92002-1323
BOLT,SCREW,4X12
$3.59¢1 794
1
#92015
92015-1233
NUT,FLANGED,6MM,BLACK
$5.01¢2 507
1
#92033
92033-0034
RING SNAP
$4.38¢2 191
1
#92037
92037-1827
CLAMP,HOSE
$6.82¢3 410
1
#92055A
92055-1251
RING-O,14.8X2.4
No Disponible
1
#92055
92055-0137
RING-O
$3.78¢1 892
1
#92153B
92153-1518
BOLT,SOCKET,6X22
$3.58¢1 788
1
#92153C
92153-1853
BOLT,SOCKET,6X12
$8.20¢4 100
1
#92153A
92153-0868
BOLT,LEVER
$7.16¢3 582
1
#92153
92153-0627
BOLT,OIL,L=23
$4.98¢2 490
1
#92172
92172-0319
SCREW
$3.78¢1 892
1
#92172A
92172-0320
SCREW,4X20
$3.58¢1 788
1
