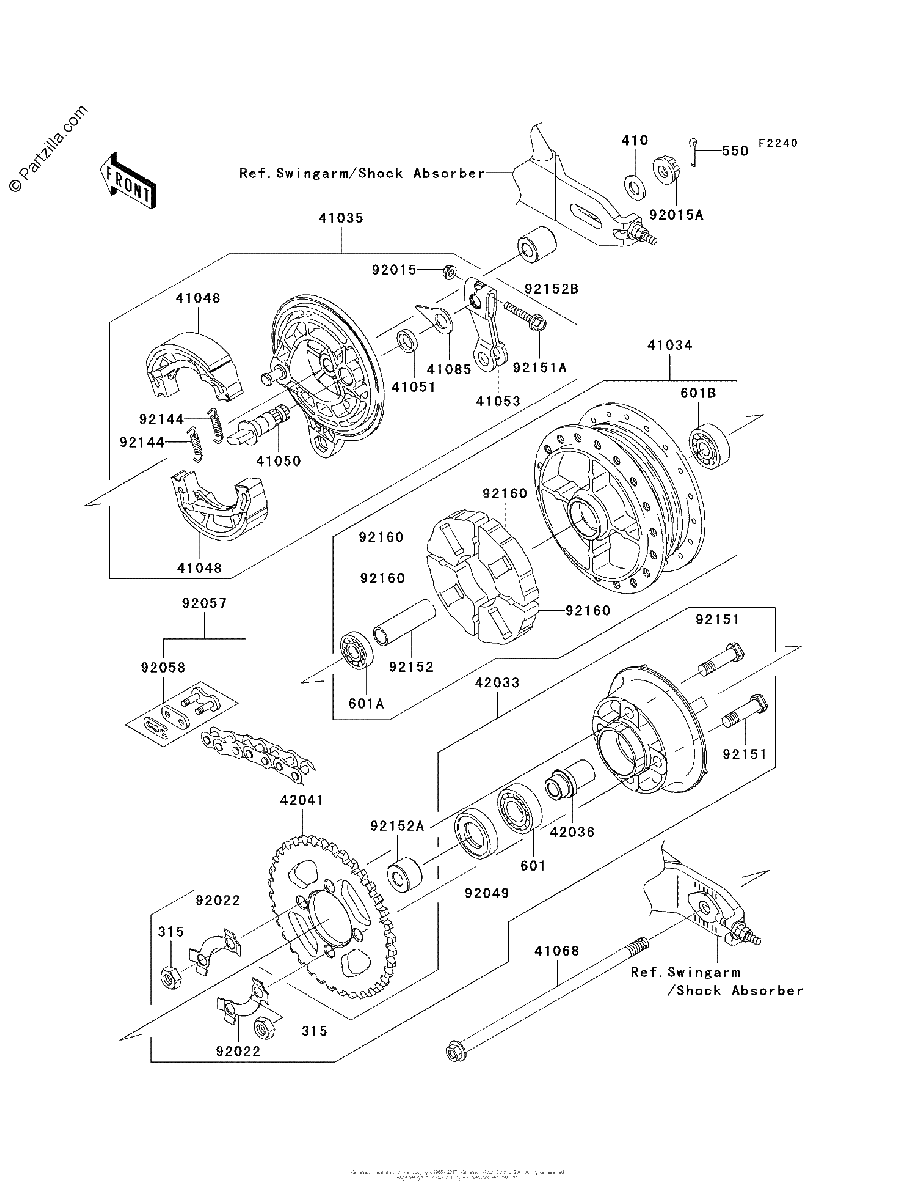

REAR HUB AAF
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#315
NUT HEX FINE,10MM
$0.70¢350
#410
WASHER PLAIN SMALL,12MM
$0.85¢425
#550
PIN COTTER,3.0X25
$0.76¢381
#601B
BEARING BALL,#6301UG
$35.34¢17 669
#601A
BEARING-BALL,#6201UG
$21.23¢10 613
#601
BEARING BALL,#6004UG
$44.96¢22 481
#41034
DRUM-ASSY,REAR BRAKE
$283.89¢141 944
#41035
PANEL-ASSY-BRAKE,RR
$152.89¢76 444
#41048
SHOE-BRAKE
$16.31¢8 156
#41050
CAM BRAKE
$9.98¢4 988
#41051
SEAL,BRAKE CAM
$4.24¢2 119
#41053
LEVER-BRAKE CAM
$12.00¢6 000
#41068
AXLE,RR
$28.20¢14 100
#41085
INDICATOR
$0.95¢475
#42033
COUPLING-ASSY,RR HUB
$117.64¢58 819
#42036
SLEEVE,RR HUB COUPLING,L=41
$80.75¢40 375
#42041
SPROCKET-HUB,36T
No Disponible
#92015A
NUT,CASTLE,12MM
$6.23¢3 113
#92015
NUT,FLANGED,6MM
$3.29¢1 644
#92022
WASHER,LOCK
$8.85¢4 425
#92049
SEAL OIL,SC26X42X8
$2.97¢1 487
#92057
CHAIN,DRIVE,RK420SBX104L
$53.51¢26 756
#92058
JOINT CHAIN,DRIVE
$6.89¢3 444
#92144
SPRING,BRAKE SHOE
$4.80¢2 400
#92151A
BOLT,FLANGED,6X34
$3.67¢1 838
#92151
BOLT,Rear HUB COUPLING,10X36
$2.84¢1 419
#92152B
COLLAR,RR AXLE,L=24
$12.13¢6 063
#92152A
COLLAR,RR AXLE,LH,L=17
$18.93¢9 463
#92152
COLLAR,RR BRAKE DRUM,L=58
$14.15¢7 075
#92160
DAMPER,SHOCK,RR HUB
$13.35¢6 675
