TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

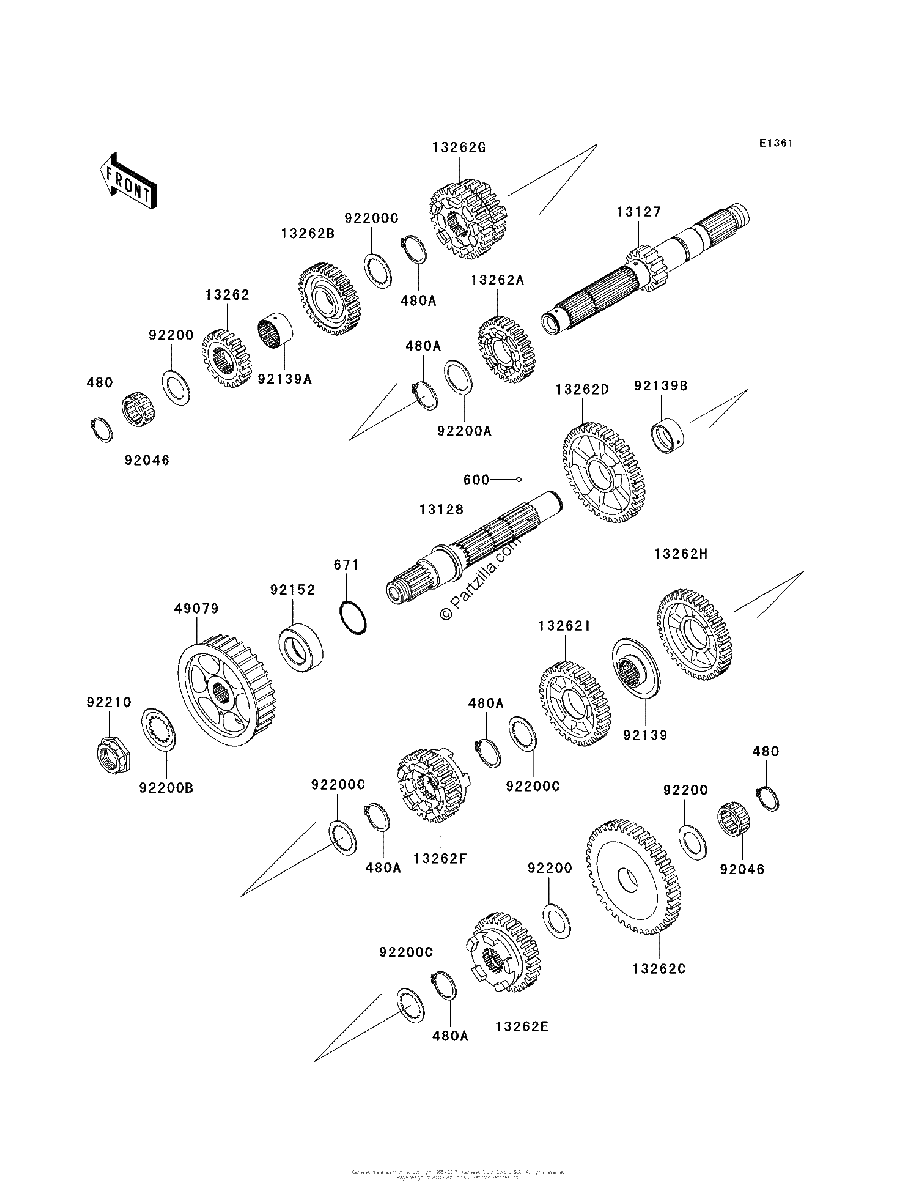

Diagrama de TRANSMISSION

Repuestos

#480A
480J2900
CIRCLIP
$5.84¢2 921
1
#480
480J2500
CIRCLIP TYPE C,25MM
$1.76¢880
1
#600
600A0500
BALL-STEEL,5/32
$0.82¢408
1
#671
671D2535
O RING
$5.60¢2 800
1
#13127
13127-0059
SHAFT TRANSMISSION INPUT
$555.60¢277 800
1
#13128
13128-0057
SHAFT TRANSMISSION OUTPUT
$521.63¢260 814
1
#13262I
13262-0741
GEAR,OUTPUT 4TH,32T
$189.04¢94 518
1
#13262H
13262-0740
GEAR,OUTPUT 3RD,38T
$189.04¢94 518
1
#13262G
13262-0739
GEAR,INPUT 3RD&4TH,27T&28T
$180.37¢90 183
1
#13262F
13262-0612
GEAR,OUTPUT 6TH,29T
$168.97¢84 485
1
#13262E
13262-0611
GEAR,OUTPUT 5TH,29T
$168.97¢84 485
1
#13262D
13262-0608
GEAR,OUTPUT 2ND,38T
$189.04¢94 518
1
#13262C
13262-0607
GEAR,OUTPUT LOW,40T
$189.04¢94 518
1
#13262B
13262-0606
GEAR,INPUT 6TH,36T
$150.74¢75 371
1
#13262A
13262-0605
GEAR,INPUT 5TH,30T
$168.97¢84 485
1
#13262
13262-0603
GEAR,INPUT 2ND,20T
$168.97¢84 485
1
#49079
49079-0020
PULLEY-BELT
$138.08¢69 040
1
#92046
92046-0007
BEARING-NEEDLE,KT 253515E02 C3
$23.40¢11 701
1
#92139B
92139-0237
BUSHING,OUTPUT 2ND GEAR
$55.29¢27 646
1
#92139A
92139-0236
BUSHING,INPUT TOP GEAR
$55.29¢27 646
1
#92139
92139-0007
BUSHING,OUTPUT 3RD 4TH GEAR
$100.45¢50 226
1
#92152
92152-0657
COLLAR,30X50X17.5
$39.23¢19 613
1
#92200C
92200-1381
WASHER,30.3X40X1.5
$12.96¢6 480
1
#92200B
92200-0505
WASHER,31X50X1
$3.38¢1 691
1
#92200A
92200-0428
WASHER,30.3X40X1.5
$6.19¢3 093
1
#92200
92200-0427
WASHER,25.3X40X1.6
$5.22¢2 610
1
#92210
92210-0554
NUT,25MM
$42.88¢21 442
1
