TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

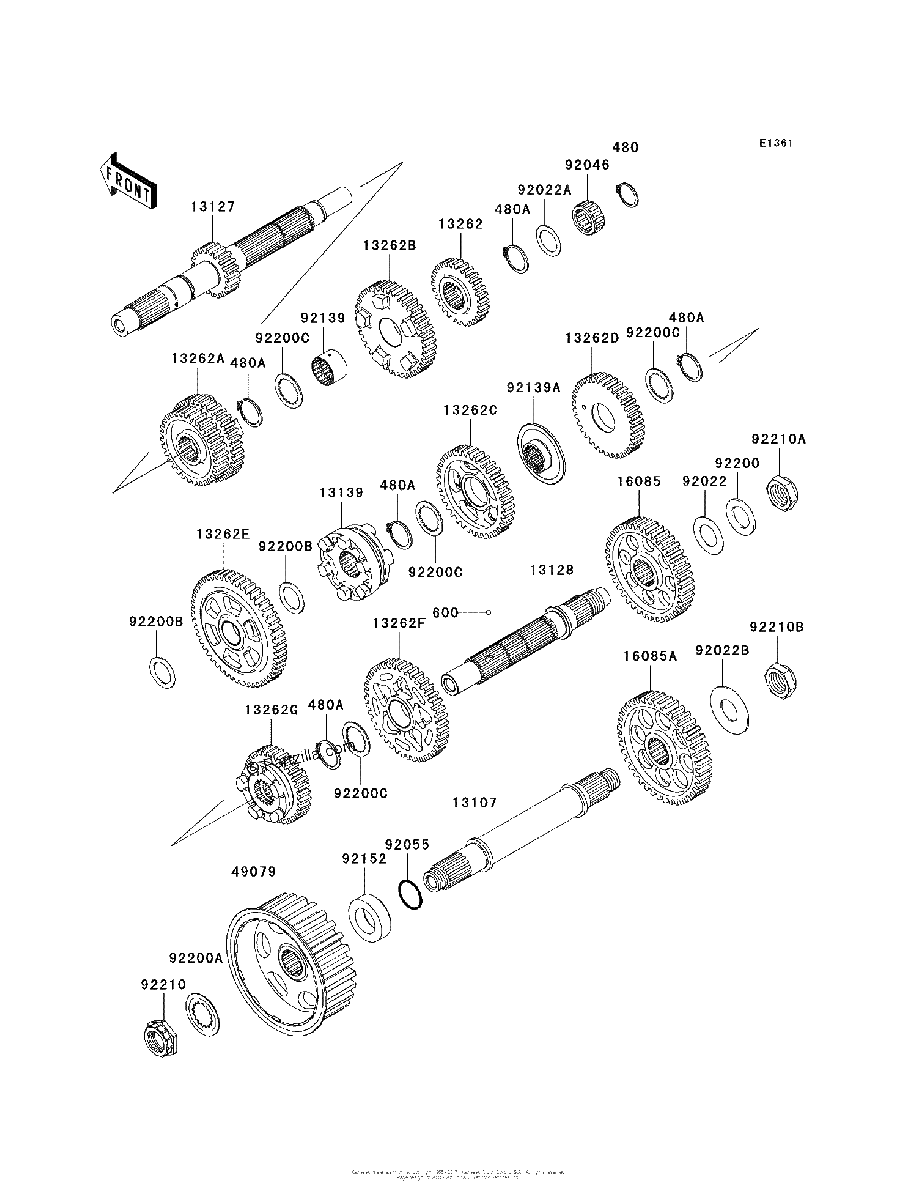

Diagrama de TRANSMISSION

Repuestos

#480
480J2500
CIRCLIP TYPE C,25MM
$1.76¢880
1
#480A
480J2900
CIRCLIP
$5.84¢2 921
1
#600
600A0500
BALL-STEEL,5/32
$0.82¢408
1
#13107
13107-0108
SHAFT,PULLEY
$377.67¢188 836
1
#13127
13127-0003
SHAFT TRANSMISSION INPUT
$565.29¢282 647
1
#13128
13128-0013
SHAFT-TRANSMISSION OUTPUT
$595.71¢297 856
1
#13139
13139-0001
SHIFTER,OUTPUT
$163.47¢81 736
1
#13262
13262-0004
GEAR,INPUT 2ND,27T
$222.85¢111 423
1
#13262A
13262-0005
GEAR,INPUT 3RD4TH,32T33T
$235.28¢117 639
1
#13262B
13262-0006
GEAR,INPUT 5TH,37T
$235.28¢117 639
1
#13262C
13262-0008
GEAR,OUTPUT 3RD,39T
$235.28¢117 639
1
#13262D
13262-0009
GEAR,OUTPUT 4TH,31T
$235.28¢117 639
1
#13262E
13262-0010
GEAR,OUTPUT LOW,51T
$235.28¢117 639
1
#13262F
13262-0011
GEAR,OUTPUT 2ND,44T
$235.28¢117 639
1
#13262G
13262-0012
GEAR,OUTPUT 5TH,27T
$235.28¢117 639
1
#16085
16085-0004
GEAR,TRANSFER,41T
$222.85¢111 423
1
#16085A
16085-0032
GEAR,TRANSFER,50T
$222.85¢111 423
1
#49079
49079-0014
PULLEY BELT
$265.87¢132 934
1
#92022B
92022-1857
WASHER,25.3X56X2.0
$14.55¢7 274
1
#92022A
92022-1855
WASHER,25.5X36X1.0
$10.29¢5 146
1
#92022
92022-1390
WASHER,25.3X44X1
$4.66¢2 329
1
#92046
92046-0007
BEARING-NEEDLE,KT 253515E02 C3
$23.40¢11 701
1
#92055
92055-0006
RING-O,29.7X2.4
$5.57¢2 783
1
#92139A
92139-0007
BUSHING,OUTPUT 3RD 4TH GEAR
$100.45¢50 226
1
#92139
92139-0006
BUSHING
$62.50¢31 251
1
#92152
92152-0021
COLLAR,30X50X16
$38.48¢19 240
1
#92200C
92200-1381
WASHER,30.3X40X1.5
$12.96¢6 480
1
#92200B
92200-0116
WASHER,25.5X36X1.6
$12.19¢6 095
1
#92200A
92200-0017
WASHER,31X50X1
$3.90¢1 949
1
#92200
92200-0016
WASHER,25.5X42X2.6
$5.47¢2 737
1
#92210A
92210-0136
NUT,LEFT HANDED,25MM
$6.04¢3 019
1
#92210
92210-0060
NUT,25MM
No Disponible
1
#92210B
92210-0138
NUT,25MM
$5.47¢2 737
1
