IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

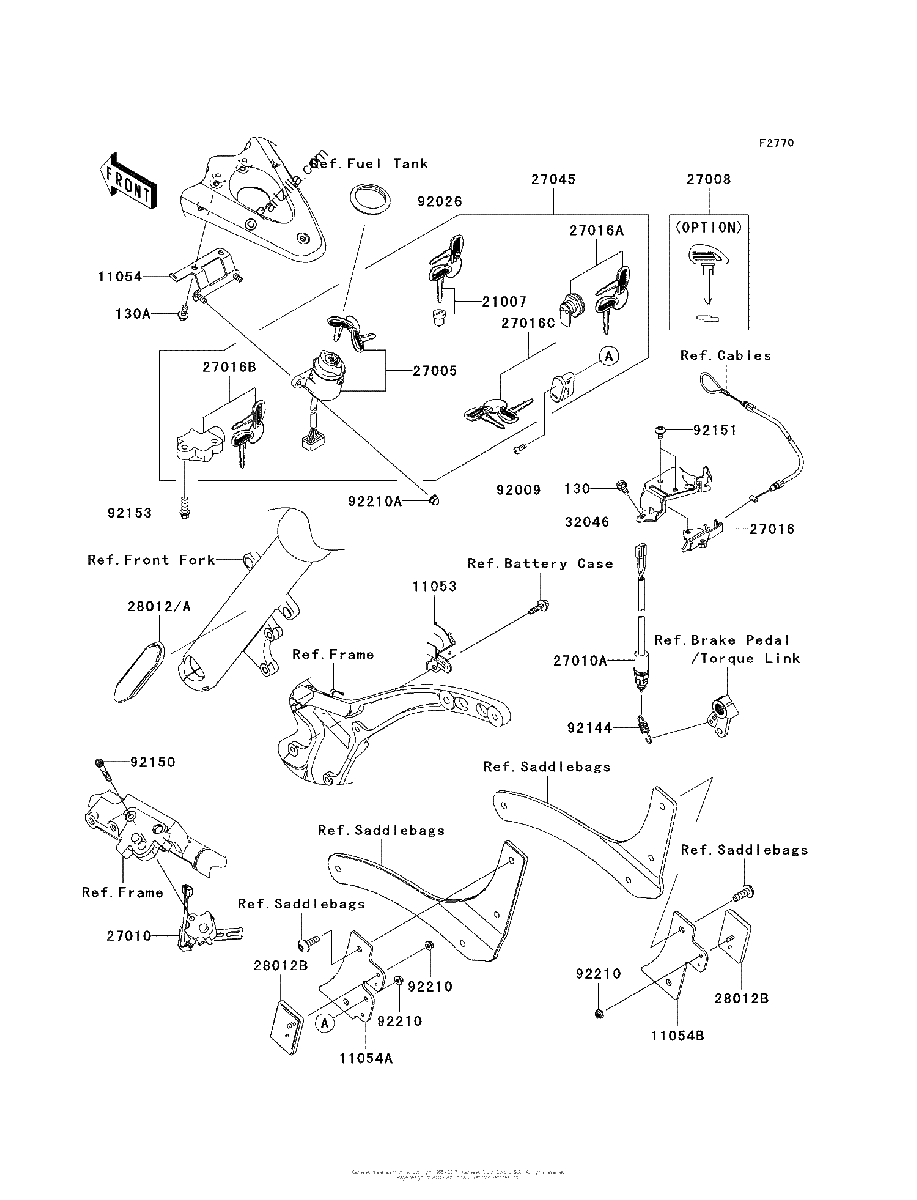

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#130A
130BB0614
BOLT FLANGED,6X14
$2.30¢1 150
1
#130
130BB0612
BOLT FLANGED,6X12
$2.19¢1 094
1
#11053
11053-0920
BRACKET,SIDE COVER LOCK
$21.29¢10 644
1
#11054
11054-0095
BRACKET,IGNITION SWITCH
$51.73¢25 863
1
#11054B
11054-0358
BRACKET,REFLECTOR,RR,RH
$82.29¢41 144
1
#11054A
11054-0357
BRACKET,REFLECTOR,Rear,Left Hand
$82.29¢41 144
1
#21007
21007-5053
ROTOR,LOCK,TANK CAP
$66.11¢33 056
1
#27005
27005-0027
SWITCH Assembly IGNITION
$249.55¢124 775
1
#27008
27008-1211
KEY LOCK,BLANK
$36.25¢18 125
1
#27010A
27010-0023
SWITCH,REAR BRAKE
$47.33¢23 663
1
#27010
27010-0011
SWITCH,SIDE STAND
$90.97¢45 488
1
#27016C
27016-5311
LOCK Assembly,HELMET
$82.44¢41 219
1
#27016B
27016-5298
LOCK-ASSY,STEERING
$142.03¢71 013
1
#27016A
27016-5279
LOCK-ASSY,PAD
$88.75¢44 375
1
#27016
27016-1115
LOCK Assembly,SEAT STRIKER
$34.35¢17 175
1
#27045
27045-5324
SWITCH-ASSY
$766.09¢383 044
1
#28012B
28012-1088
REFLECTOR REFLEX
$23.64¢11 819
1
#28012
28012-0019
REFLECTOR REFLEX
$28.59¢14 294
1
#28012A
28012-0019
REFLECTOR REFLEX
$28.59¢14 294
1
#28012
28012-0009
REFLECTOR REFLEX,Front,SIDE
No Disponible
1
#32046
32046-0037
BRACKET-SEAT
$43.71¢21 856
1
#92009
92009-1341
SCREW,5X14
$4.39¢2 194
1
#92026
92026-0018
SPACER,IGNITION SWITCH
$10.14¢5 069
1
#92144
92144-1141
SPRING,REAR BRAKE SWITCH
$5.40¢2 700
1
#92150
92150-1958
BOLT,SOCKET,6X40
$5.67¢2 838
1
#92151
92151-1219
BOLT,SOCKET,6X12
$5.96¢2 981
1
#92153
92153-1273
BOLT,TORX,8X22
$5.71¢2 856
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
#92210A
92210-1252
NUT,CAP,6MM
No Disponible
1
