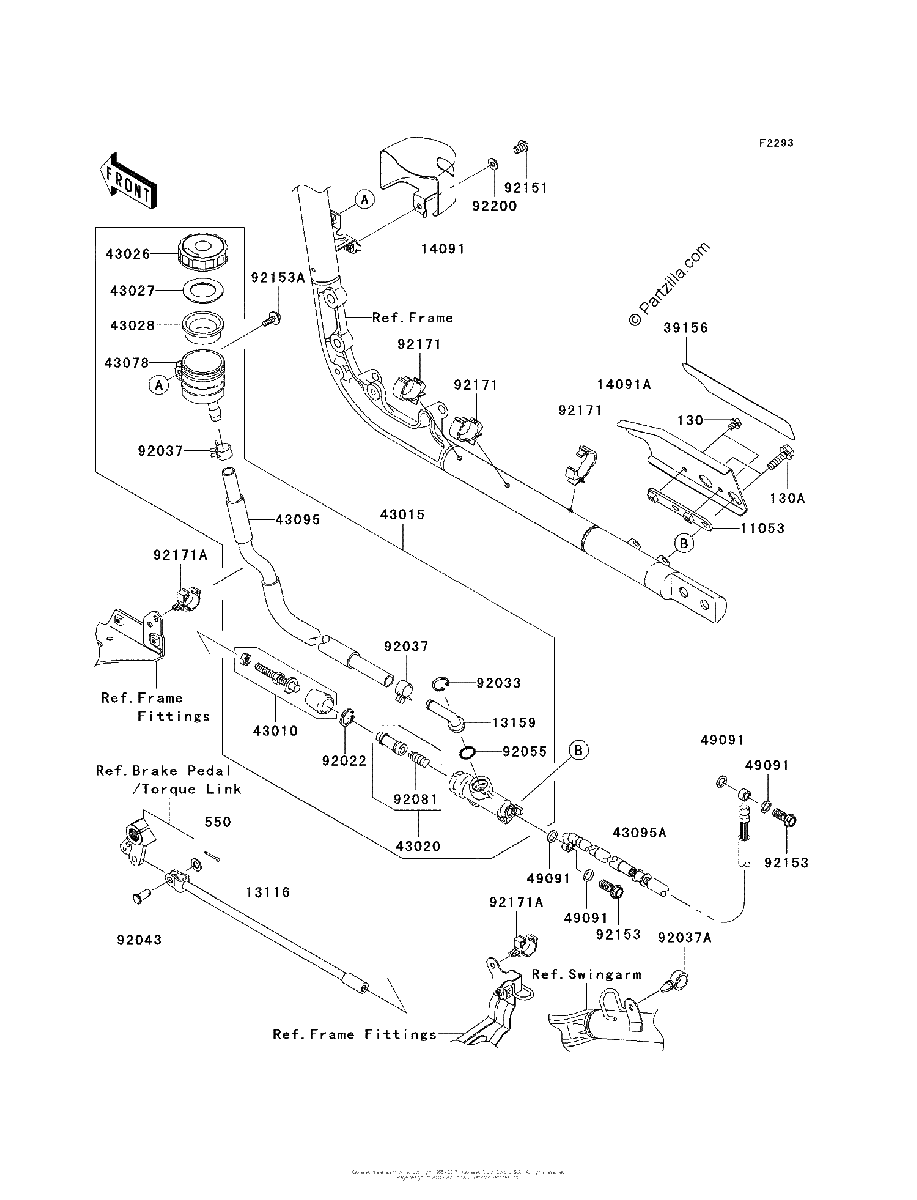

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT-FLANGED,6X10 | [CA]
$2.12¢1 058
#130A
BOLT-FLANGED,8X30
$4.09¢2 047
#550
PIN COTTER,2.0X15
$1.08¢541
#11053
BRACKET,HEAT GUARD COVER
$9.89¢4 945
#13116
ROD-PUSH
$81.09¢40 543
#13159
CONNECTOR,RR MASTER CYLINDER
$14.42¢7 210
#14091A
COVER,HEAT GUARD,F S BLACK
$38.32¢19 159
#14091
COVER,RESERVOIR TANK
$104.41¢52 204
#39156
PAD,Rear MASTER CYLINDER
$9.26¢4 629
#43010
ROD Assembly BRAKE
$87.53¢43 763
#43015
CYLINDER Assembly MASTER,Rear
$348.24¢174 121
#43020
PISTON-COMP-BRAKE
$68.37¢34 184
#43026
CAP BRAKE
$35.82¢17 911
#43027
PLATE DIAPHRAGM
$4.84¢2 421
#43028
DIAPHRAGM,MASTER CYLINDER
$17.26¢8 631
#43078
RESERVOIR,Rear MASTER CYLINDER
$26.48¢13 242
#43095A
HOSE BRAKE,Rear
$171.22¢85 612
#43095
HOSE BRAKE,Rear MASTER CYLINDER
$74.09¢37 047
#49091
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
#92022
RING-SNAP,20.9X24.6X1.2
No Disponible
#92033
RING-SNAP,20.5MM
$4.53¢2 266
#92037A
CLAMP,HOSE
$6.82¢3 410
#92037
CLAMP,BRAKE HOSE
$12.72¢6 360
#92043
PIN,8X16
$9.04¢4 520
#92055
RING-O,14.8X2.4
No Disponible
#92081
SPRING,MASTER CYLINDER
$12.59¢6 296
#92151
BOLT,SOCKET,6X12
$3.40¢1 702
#92153A
BOLT,FLANGED,6X20
$2.83¢1 414
#92153
BOLT,OIL,L=23
$4.98¢2 490
#92171A
CLAMP,BRAKE HOSE
$3.51¢1 754
#92171
CLAMP,20MM DIA.
$4.04¢2 018
#92200
WASHER,6.5X14.5X1.5
$1.56¢782
