RADIATOR T9F TAF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

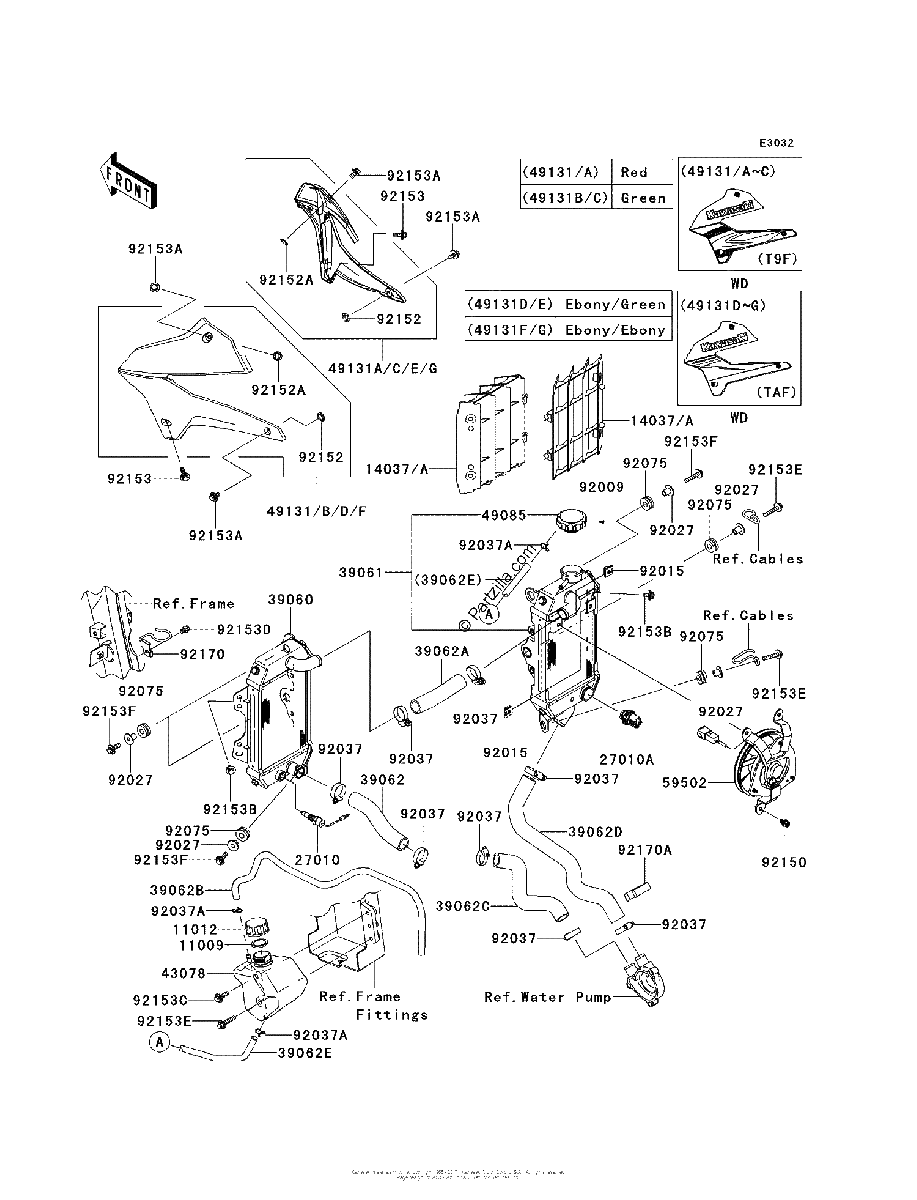

Diagrama de RADIATOR T9F TAF

Repuestos

#11009
11009-1145
GASKET,RESERVOIR TANK CAP
$1.30¢650
1
#11012
11012-1084
CAP
$1.51¢753
1
#14037A
14037-0067-6C
SCREEN,EBONY
$26.02¢13 012
1
#14037
14037-0067-6C
SCREEN,EBONY
$26.02¢13 012
1
#14037
14037-0067-RZ
SCREEN,WHITE
$30.58¢15 289
1
#27010
27010-1199
SWITCH,WARNING
$162.30¢81 150
1
#27010A
27010-1443
SWITCH
$141.81¢70 903
1
#39060
39060-0045
RADIATOR
$401.21¢200 606
1
#39061
39061-0184
RADIATOR Assembly
$514.15¢257 077
1
#39062B
39062-0204
HOSE-COOLING,OVERFLOW
$19.58¢9 792
1
#39062
39062-0199
HOSE COOLING,HEAD RAD Left Hand
$22.98¢11 489
1
#39062A
39062-0200
HOSE-COOLING,RAD. LH-RAD. RH
$22.98¢11 489
1
#39062C
39062-1563
HOSE COOLING,PUMP CYLINDER
$31.85¢15 927
1
#39062D
39062-1564
HOSE COOLING,RADIATOR PUMP
$47.28¢23 638
1
#39062E
39062-1786
HOSE COOLING,RESERVOIR
$14.97¢7 486
1
#43078
43078-0044
RESERVOIR
$49.77¢24 886
1
#49085
49085-1075
CAP Assembly PRESSURE
$48.27¢24 133
1
#49131G
49131-5278-25L
SHROUD ENGINE,Right Hand,EBONY/EBONY
$146.66¢73 330
1
#49131A
49131-5278-25L
SHROUD ENGINE,Right Hand,EBONY/EBONY
$146.66¢73 330
1
#49131F
49131-5277-25L
SHROUD ENGINE,Left Hand,EBONY/EBONY
$130.85¢65 423
1
#49131
49131-5277-25L
SHROUD ENGINE,Left Hand,EBONY/EBONY
$130.85¢65 423
1
#49131A
49131-5276-27W
SHROUD ENGINE,Right Hand,EBONY/GREEN
$146.66¢73 330
1
#49131E
49131-5276-27W
SHROUD ENGINE,Right Hand,EBONY/GREEN
$146.66¢73 330
1
#49131
49131-5130-6B
SHROUD ENGINE,Left Hand,S RED
$129.50¢64 751
1
#49131A
49131-5131-6B
SHROUD ENGINE,Right Hand,S RED
$129.50¢64 751
1
#49131
49131-5132-290
SHROUD ENGINE,Left Hand,L GREEN
$129.50¢64 751
1
#49131A
49131-5133-290
SHROUD ENGINE,Right Hand,L GREEN
$129.50¢64 751
1
#49131D
49131-5275-27W
SHROUD ENGINE,Left Hand,EBONY/GREEN
$146.66¢73 330
1
#49131
49131-5275-27W
SHROUD ENGINE,Left Hand,EBONY/GREEN
$146.66¢73 330
1
#59502
59502-0028
FAN Assembly
$670.35¢335 173
1
#92009
92009-1844
SCREW,TAPPING,3X6
$0.85¢426
1
#92015
92015-1487
NUT
$4.36¢2 179
1
#92027
92027-1183
COLLAR,6.5X10X14.1
$5.01¢2 507
1
#92037A
92037-1712
CLAMP
$4.57¢2 283
1
#92037
92037-1589
CLAMP,COOLING HOSE
$16.79¢8 395
1
#92075
92075-209
DAMPER
$4.28¢2 139
1
#92150
92150-1186
BOLT,6X12
$3.06¢1 529
1
#92152A
92152-1235
COLLAR
$3.78¢1 892
1
#92152
92152-0909
COLLAR,8.8X11.2X4
$5.12¢2 559
1
#92153A
92153-0503
BOLT,6X12
$2.37¢1 185
1
#92153B
92153-0936
BOLT,FLANGED,6X14
$2.51¢1 254
1
#92153
92153-0502
BOLT,6X20
$2.37¢1 185
1
#92153C
92153-0950
BOLT,FLANGED,6X22
$3.58¢1 788
1
#92153D
92153-1354
BOLT,FLANGED,6X10
$2.32¢1 162
1
#92153E
92153-1457
BOLT,FLANGED,6X30
$2.92¢1 461
1
#92153F
92153-1560
BOLT,FLANGED-SMALL,6X22
$1.95¢977
1
#92170
92170-1357
CLAMP
$15.39¢7 694
1
#92170A
92170-1419
CLAMP
$5.22¢2 610
1
