TRANSMISSION

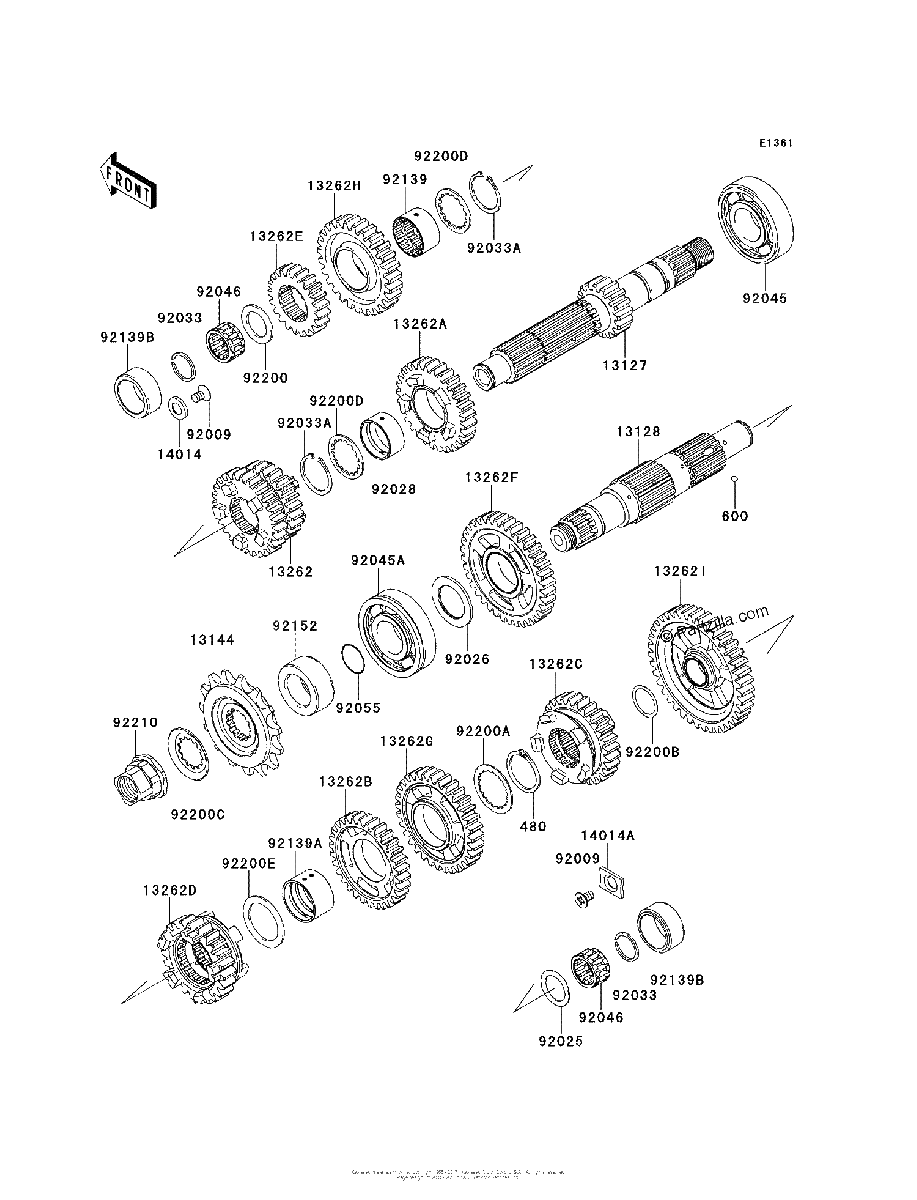

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#480
CIRCLIP
$5.84¢2 921
#600
BALL-STEEL,5/32
$0.82¢408
#13127
SHAFT TRANSMISSION INPUT,16T
$301.38¢150 690
#13128
SHAFT-TRANSMISSION OUTPUT
$227.14¢113 568
#13144
SPROCKET-OUTPUT,15T,#520
$40.68¢20 338
#13262
GEAR,INPUT 3RD4TH,24T27T
No Disponible
#13262F
GEAR,OUTPUT 2ND,36T
No Disponible
#13262A
GEAR,INPUT 5TH,29T
$143.58¢71 789
#13262B
GEAR,OUTPUT 4TH,30T
No Disponible
#13262C
GEAR,OUTPUT 5TH,28T
No Disponible
#13262D
GEAR,OUTPUT TOP,23T
No Disponible
#13262E
GEAR,INPUT 2ND,21T
$55.17¢27 583
#13262G
GEAR,OUTPUT 3RD,32T
No Disponible
#13262H
GEAR,INPUT TOP,27T
$143.58¢71 789
#13262I
GEAR,OUTPUT LOW,39T
$143.47¢71 737
#14014
PLATE-POSITION,9.5X17X2.3
$3.78¢1 892
#14014A
PLATE POSITION,Right Hand
$5.32¢2 662
#92009
SCREW,6X10
$3.79¢1 897
#92025
SHIM,20.3X28X1.1
$2.32¢1 162
#92026
SPACER,25.3X39X2.0
$11.30¢5 652
#92028
BUSHING,INPUT GEAR
$25.89¢12 943
#92033A
RING SNAP,25.9X30.6X1.2
$4.24¢2 122
#92033
RING-SNAP,20MM
$3.90¢1 949
#92045A
BEARING BALL,6305N2SH2
$41.15¢20 574
#92045
BEARING BALL,25X62X17
$40.45¢20 223
#92046
BEARING-NEEDLE,KMJ20X26X13.8X1
$18.77¢9 384
#92055
RING O,21.5X1.5
$4.57¢2 283
#92139A
BUSHING,OUT 3RD&4TH GEAR
$21.04¢10 522
#92139B
BUSHING,BEARING NEEDLE
$31.60¢15 801
#92139
BUSHING,25X28.3X16.7
$27.17¢13 587
#92152
COLLAR,25X40X17.2
$31.67¢15 835
#92200A
WASHER,30.3X38X1.0
$4.67¢2 335
#92200B
WASHER,20.2X25.0X0.5
$1.95¢977
#92200C
WASHER
$5.96¢2 978
#92200D
WASHER,28.5X34.0X1.5
$9.38¢4 692
#92200E
WASHER,29.9X40X1.5
$12.37¢6 187
#92200
WASHER,20.2X30X1.8
$3.78¢1 892
#92210
NUT,M20,L=24MM
$44.07¢22 034
