CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

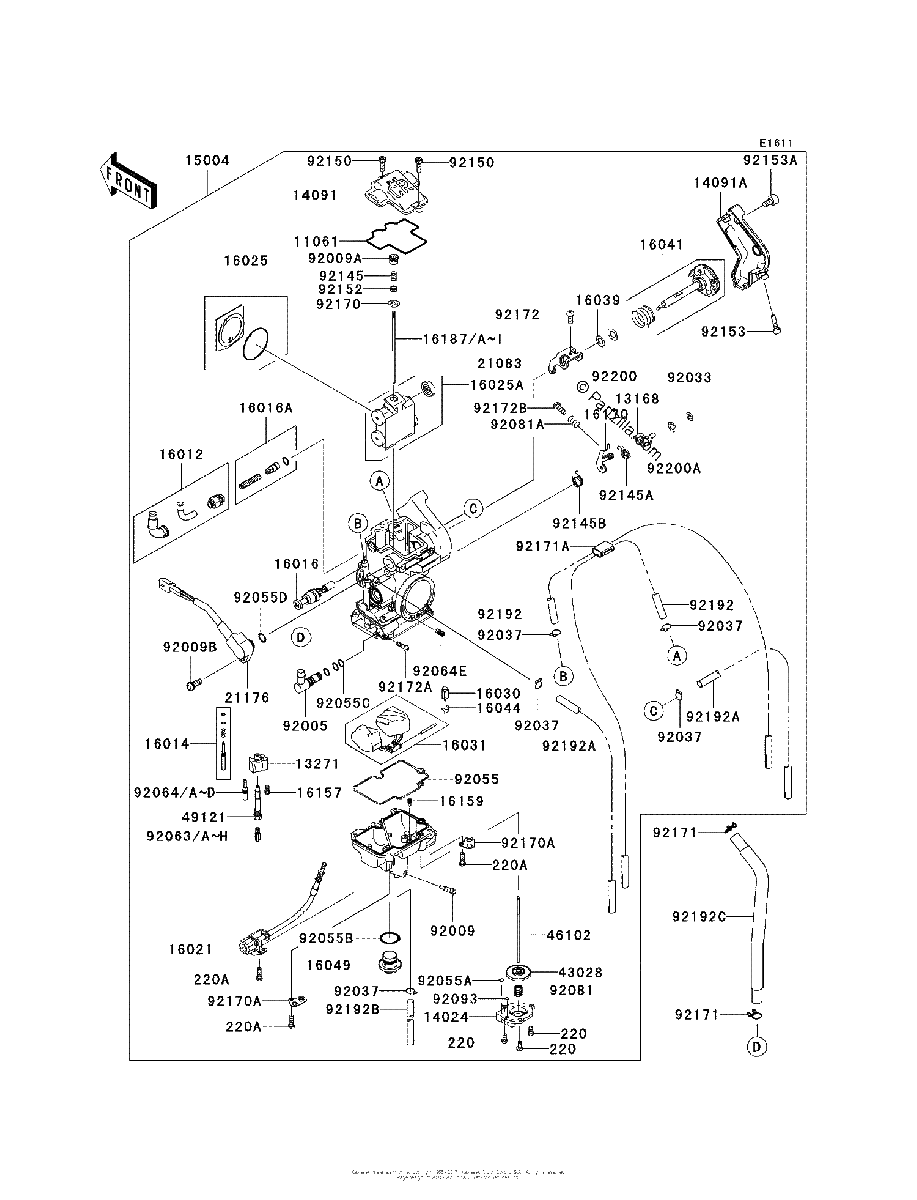

Diagrama de CARBURETOR

Repuestos

#220
220AA0408
SCREW-PAN-CROS,4X8
$0.75¢374
1
#220A
220AA0414
SCREW-PAN-CROS,4X14 | [CN,US]
$4.20¢2 099
1
#11061
11061-0077
GASKET
$12.05¢6 026
1
#13168
13168-0051
LEVER
$23.25¢11 626
1
#13271
13271-0241
PLATE
$16.87¢8 435
1
#14024
14024-1971
COVER
$60.86¢30 429
1
#14091
14091-0208
COVER,TOP
$38.10¢19 050
1
#14091A
14091-0209
COVER
$57.01¢28 503
1
#15004
15004-0076
CARBURETOR Assembly,FCR 37
$1302.93¢651 464
1
#16012
16012-0004
CAP STARTER PLUNGER
$26.39¢13 196
1
#16014
16014-0004
SCREW-PILOT AIR
$17.96¢8 981
1
#16016
16016-0009
PLUNGER
$46.20¢23 098
1
#16016A
16016-0017
PLUNGER
$15.20¢7 602
1
#16021
16021-0005
SCREW-THROTTLE STOP
$19.02¢9 510
1
#16025
16025-0009
VALVE-THROTTLE
$76.98¢38 491
1
#16025A
16025-0013
VALVE-THROTTLE
$350.92¢175 461
1
#16030
16030-1057
VALVE-FLOAT | [CN,US]
$49.37¢24 685
1
#16031
16031-1100
FLOAT
$63.84¢31 918
1
#16039
16039-0230
WASHER
$1.92¢960
1
#16041
16041-0004
SHAFT-CARBURETOR
$188.27¢94 133
1
#16044
16044-007
CLAMP,FLOAT VALVE | [CN,US]
$7.24¢3 622
1
#16049
16049-1051
COVER-MAIN JET
$37.26¢18 630
1
#16157
16157-0001
JET STARTER,#68
$25.18¢12 592
1
#16159
16159-1054
JET POWER,#55
$15.95¢7 975
1
#16170
16170-0003
LINK-ASSY
$16.72¢8 360
1
#16187
16187-0263
NEEDLE-JET,NHKS | (OPTION)
$43.77¢21 885
1
#16187
16187-0264
NEEDLE-JET,NHKT | (OPTION)
$43.77¢21 885
1
#16187
16187-0265
NEEDLE-JET,NHKU | (OPTION)
$43.77¢21 885
1
#16187
16187-0266
NEEDLE-JET,NHKV | (OPTION)
$45.80¢22 902
1
#16187
16187-0262
NEEDLE-JET,NHKR | (OPTION)
$43.77¢21 885
1
#16187
16187-0242
NEEDLE-JET,NHJV | (OPTION)
$43.77¢21 885
1
#16187
16187-0238
NEEDLE JET,NHJR
$45.80¢22 902
1
#16187
16187-0239
NEEDLE-JET,NHJS | (OPTION)
$45.80¢22 902
1
#16187
16187-0240
NEEDLE-JET,NHJT
$45.80¢22 902
1
#16187
16187-0241
NEEDLE-JET,NHJU | (OPTION)
$43.77¢21 885
1
#16187G
16187-0264
NEEDLE-JET,NHKT | (OPTION)
$43.77¢21 885
1
#16187F
16187-0263
NEEDLE-JET,NHKS | (OPTION)
$43.77¢21 885
1
#16187E
16187-0262
NEEDLE-JET,NHKR | (OPTION)
$43.77¢21 885
1
#16187D
16187-0242
NEEDLE-JET,NHJV | (OPTION)
$43.77¢21 885
1
#16187C
16187-0241
NEEDLE-JET,NHJU | (OPTION)
$43.77¢21 885
1
#16187B
16187-0240
NEEDLE-JET,NHJT
$45.80¢22 902
1
#16187A
16187-0239
NEEDLE-JET,NHJS | (OPTION)
$45.80¢22 902
1
#16187H
16187-0265
NEEDLE-JET,NHKU | (OPTION)
$43.77¢21 885
1
#16187I
16187-0266
NEEDLE-JET,NHKV | (OPTION)
$45.80¢22 902
1
#21083
21083-0035
ARM
$46.97¢23 483
1
#21176
21176-0016
SENSOR,THROTTLE
$105.20¢52 601
1
#43028
43028-0001
DIAPHRAGM
$22.49¢11 247
1
#46102
46102-0033
ROD
$25.46¢12 731
1
#49121
49121-0001
NOZZLE-MAIN
$41.87¢20 936
1
#92005
92005-0016
FITTING
$24.23¢12 115
1
#92009
92009-1551
SCREW,DRAIN,6X0.75
$9.04¢4 520
1
#92009B
92009-1981
SCREW,THROTTLE SENSOR
$2.07¢1 035
1
#92009A
92009-1876
SCREW
$11.78¢5 888
1
#92033
92033-0018
RING-SNAP
$2.45¢1 225
1
#92037
92037-1396
CLAMP,TUBE
$5.01¢2 507
1
#92055
92055-0066
RING-O,FLOAT CHAMBER
$16.53¢8 263
1
#92055C
92055-1223
RING-O
$4.54¢2 271
1
#92055D
92055-1671
RING O
$3.54¢1 771
1
#92055B
92055-1167
RING O,MAIN JET COVER
$8.68¢4 341
1
#92055A
92055-1004
RING-O
$3.94¢1 972
1
#92063H
92063-1382
JET MAIN,#195
$17.80¢8 901
1
#92063G
92063-1381
JET MAIN,#192
$17.80¢8 901
1
#92063F
92063-1380
JET MAIN,#190
$16.35¢8 176
1
#92063E
92063-1379
JET MAIN,#188
$15.64¢7 820
1
#92063C
92063-1377
JET MAIN,#182
$16.35¢8 176
1
#92063D
92063-1378
JET MAIN,#185
$17.80¢8 901
1
#92063B
92063-1376
JET MAIN,#180
$16.35¢8 176
1
#92063
92063-1376
JET MAIN,#180
$16.35¢8 176
1
#92063
92063-1377
JET MAIN,#182
$16.35¢8 176
1
#92063
92063-1375
JET-MAIN,#178 | (OPTION)
$16.04¢8 021
1
#92063
92063-1378
JET MAIN,#185
$17.80¢8 901
1
#92063A
92063-1375
JET-MAIN,#178 | (OPTION)
$16.04¢8 021
1
#92063
92063-1379
JET MAIN,#188
$15.64¢7 820
1
#92063
92063-1374
JET-MAIN,#175 | (OPTION)
$16.04¢8 021
1
#92063
92063-1380
JET MAIN,#190
$16.35¢8 176
1
#92063
92063-1381
JET MAIN,#192
$17.80¢8 901
1
#92063
92063-1382
JET MAIN,#195
$17.80¢8 901
1
#92064E
92064-1160
JET-PILOT,#100
$15.24¢7 619
1
#92064D
92064-1142
JET PILOT,#45
$15.39¢7 694
1
#92064C
92064-1141
JET PILOT,#42
$15.39¢7 694
1
#92064B
92064-1140
JET PILOT,#40
$15.39¢7 694
1
#92064A
92064-1139
JET PILOT,#38
$17.19¢8 596
1
#92064
92064-1142
JET PILOT,#45
$15.39¢7 694
1
#92064
92064-1138
JET PILOT,#35
$17.19¢8 596
1
#92064
92064-1139
JET PILOT,#38
$17.19¢8 596
1
#92064
92064-1140
JET PILOT,#40
$15.39¢7 694
1
#92064
92064-1141
JET PILOT,#42
$15.39¢7 694
1
#92081A
92081-1620
SPRING
$4.53¢2 266
1
#92081
92081-1092
SPRING,DIAPHRAGM
$11.97¢5 986
1
#92093
92093-1046
SEAL,U RING
$5.85¢2 927
1
#92145B
92145-0167
SPRING
$17.40¢8 700
1
#92145A
92145-0166
SPRING
$17.40¢8 700
1
#92145
92145-0164
SPRING
$17.40¢8 700
1
#92150
92150-1426
BOLT,SOCKET,4X12
$5.60¢2 800
1
#92152
92152-0141
COLLAR
$9.92¢4 962
1
#92153A
92153-0639
BOLT
$5.29¢2 645
1
#92153
92153-0638
BOLT
$5.72¢2 858
1
#92170A
92170-1582
CLAMP
$3.83¢1 915
1
#92170
92170-1204
CLAMP,JET NEEDLE
$3.83¢1 915
1
#92171A
92171-0246
CLAMP
$5.88¢2 938
1
#92171
92171-0149
CLAMP
$3.54¢1 771
1
#92172B
92172-0129
SCREW
$5.29¢2 645
1
#92172A
92172-0128
SCREW
$5.29¢2 645
1
#92172
92172-0127
SCREW
$5.29¢2 645
1
#92192C
92192-0688
TUBE,FUEL
$22.14¢11 069
1
#92192B
92192-0085
TUBE
$8.05¢4 025
1
#92192A
92192-0084
TUBE
$8.05¢4 025
1
#92192
92192-0083
TUBE
$8.05¢4 025
1
#92200
92200-0107
WASHER
$2.50¢1 248
1
#92200A
92200-1434
WASHER,LINK ARM,STAINLESS
$2.15¢1 075
1
