AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

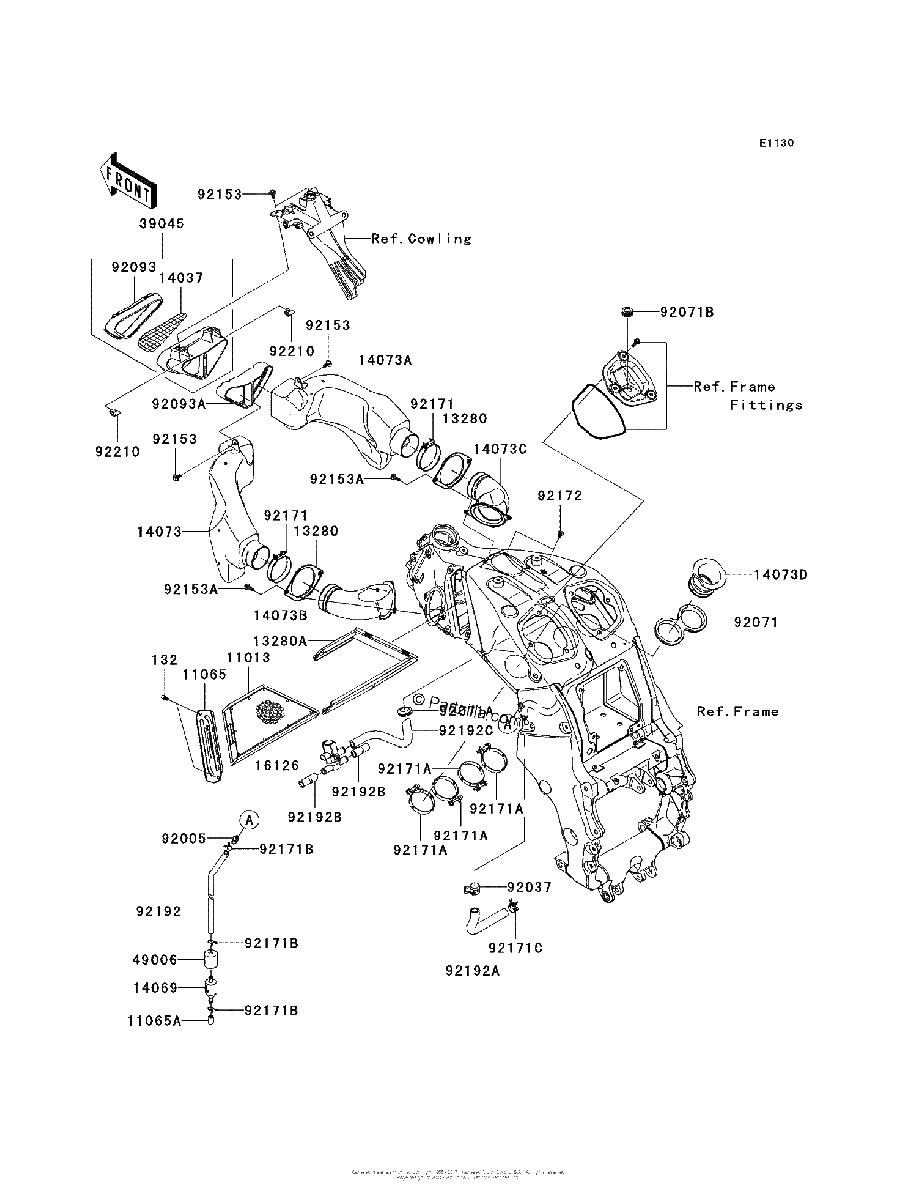

Diagrama de AIR CLEANER

Repuestos

#132
132BA0614
BOLT-FLANGED-SMALL,6X14
$1.47¢737
1
#11013
11013-0014
ELEMENT-AIR FILTER
$66.40¢33 200
1
#11065
11065-0325
CAP
$42.26¢21 131
1
#11065A
11065-1088
CAP,BREATHER
$2.50¢1 250
1
#13280
13280-0154
HOLDER
$13.25¢6 625
1
#13280A
13280-0165
HOLDER,ELEMENT
$153.94¢76 969
1
#14037
14037-0044
SCREEN
$56.25¢28 125
1
#14069
14069-1051
BREATHER
$10.11¢5 056
1
#14073
14073-0099
DUCT,RAM AIR,LH
$156.26¢78 131
1
#14073D
14073-0168
DUCT,FUNNEL
$42.70¢21 350
1
#14073C
14073-0102
DUCT,RAM FRAME,Right Hand
$60.89¢30 444
1
#14073B
14073-0101
DUCT,RAM-FRAME,LH
$60.89¢30 444
1
#14073A
14073-0100
DUCT,RAM AIR,Right Hand
$156.26¢78 131
1
#16126
16126-0038
VALVE,AIR SWITCHING
$242.40¢121 200
1
#39045
39045-0016
DUCT-ASSY,RAM AIR,FR
$186.39¢93 194
1
#49006
49006-1267
BOOT,BREATHER
$8.66¢4 331
1
#92005
92005-0055
FITTING
$27.10¢13 550
1
#92037
92037-1460
CLAMP
$10.71¢5 356
1
#92071B
92071-2140
GROMMET
$4.28¢2 138
1
#92071A
92071-1042
GROMMET,AIR FILTER
$7.23¢3 613
1
#92071
92071-0023
GROMMET
$14.89¢7 444
1
#92093A
92093-0053
SEAL,RAM,DUCT
$41.92¢20 963
1
#92093
92093-0052
SEAL
$41.92¢20 963
1
#92153A
92153-1927
BOLT,SOCKET,6X20
$2.52¢1 263
1
#92153
92153-1587
BOLT,UPSET-WP,6X16
$1.79¢894
1
#92171C
92171-0771
CLAMP
$9.29¢4 644
1
#92171A
92171-0677
CLAMP
$13.75¢6 875
1
#92171B
92171-0721
CLAMP
$2.84¢1 419
1
#92171
92171-0543
CLAMP,65MM
$14.70¢7 350
1
#92172
92172-0284
SCREW,6X16
$1.17¢587
1
#92192A
92192-0365
TUBE,BREATHER
No Disponible
1
#92192B
92192-0376
TUBE,REED VALVE ASV
$5.75¢2 875
1
#92192C
92192-0399
TUBE,ASV-FRAME
$16.69¢8 344
1
#92192
92192-0258
TUBE,7X12X390
$9.72¢4 863
1
#92210
92210-0318
NUT
$8.51¢4 256
1
