FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

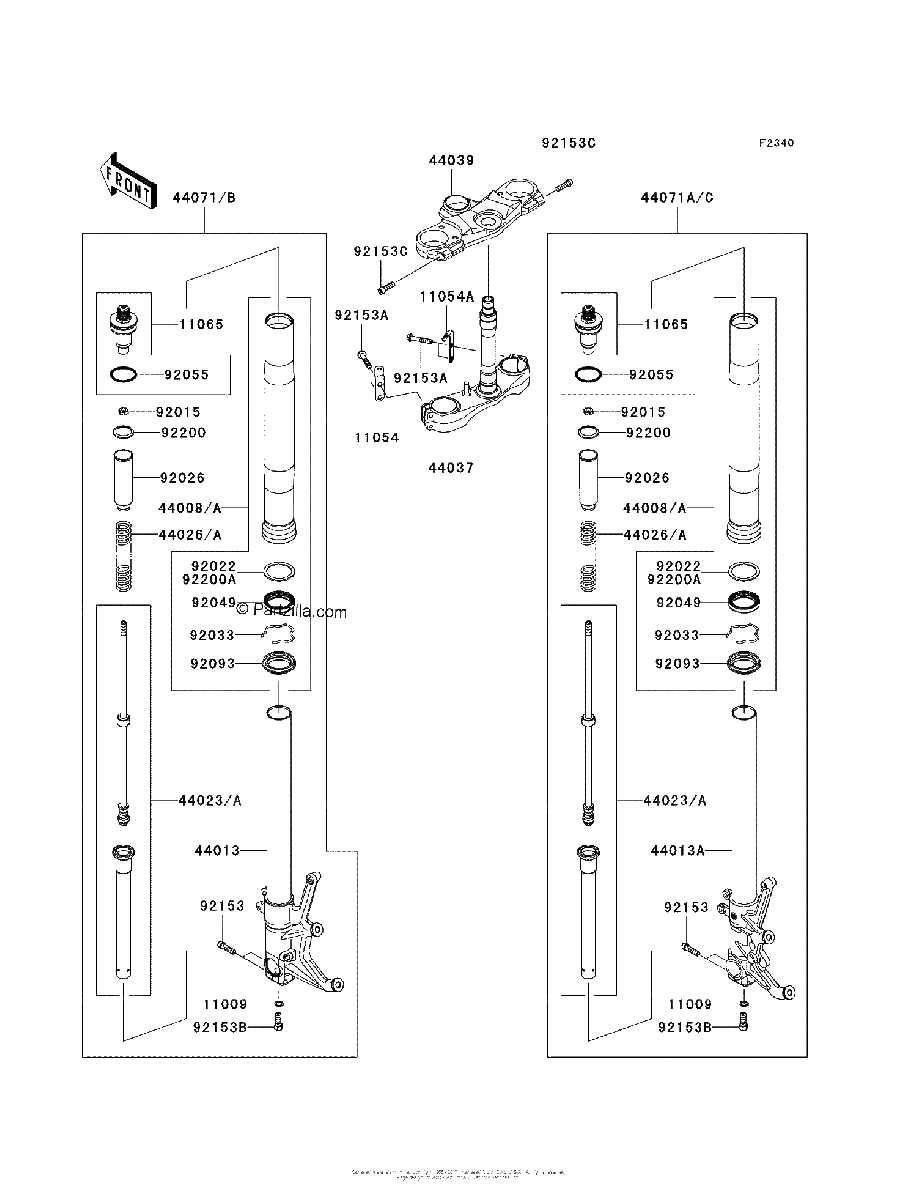

Diagrama de FRONT FORK

Repuestos

#11009
11009-1325
GASKET,FORK CYLINDER
No Disponible
1
#11054
11054-0480
BRACKET,HARNESS CLAMP,Left Hand
$11.63¢5 813
1
#11054A
11054-0481
BRACKET,UNDER BRACKET,Right Hand
$11.63¢5 813
1
#11065
11065-0147
CAP
$260.63¢130 313
1
#44008
44008-0052-ES
PIPE FORK OUTER,GOLD
No Disponible
1
#44008
44008-0033-ES
PIPE FORK OUTER,GOLD
$650.31¢325 156
1
#44013A
44013-0094-11E
PIPE FORK INNER,Right Hand,F S BLACK
$841.40¢420 700
1
#44013
44013-0093-11E
PIPE FORK INNER,Left Hand,F S BLACK
$841.40¢420 700
1
#44023
44023-0094
CYLINDER SET FORK
$606.27¢303 138
1
#44023
44023-0041
CYLINDER SET FORK
$631.74¢315 869
1
#44026
44026-0158
SPRING FRONT FORK
$214.56¢107 281
1
#44026
44026-0085
SPRING FRONT FORK
$214.34¢107 169
1
#44037
44037-0039
HOLDER FORK UNDER
$933.76¢466 881
1
#44039
44039-0060-11E
HOLDER FORK UPPER,F S BLACK
$431.13¢215 563
1
#44071
44071-5118
DAMPER Assembly,FORK,Left Hand,GOLD
$1622.26¢811 131
1
#44071A
44071-5119
DAMPER Assembly,FORK,Right Hand,GOLD
$1622.26¢811 131
1
#44071A
44071-5026
DAMPER Assembly,FORK,Right Hand,GOLD
$1619.04¢809 519
1
#44071
44071-5025
DAMPER Assembly,FORK,Left Hand,GOLD
$1619.04¢809 519
1
#92015
92015-1905
NUT
$21.46¢10 731
1
#92022
92022-1299
WASHER
$8.53¢4 263
1
#92026
92026-0045
SPACER,FORK
$13.88¢6 938
1
#92033
92033-1077
RING SNAP
$4.92¢2 463
1
#92049
92049-1522
SEAL OIL,FORK OUTER TUBE
$24.34¢12 169
1
#92055
92055-1333
RING-O,FORK,AIR TUBE
$5.90¢2 950
1
#92093
92093-1480
SEAL,FORK OUTER TUBE
$18.26¢9 131
1
#92153C
92153-0768
BOLT,SOCKET,8X27
$8.11¢4 056
1
#92153B
92153-0548
BOLT,SOCKET,10X25
$5.74¢2 869
1
#92153A
92153-0484
BOLT,FLANGED,8X40
$3.10¢1 550
1
#92153
92153-0006
BOLT,SOCKET,8X40
$2.96¢1 481
1
#92200
92200-0085
WASHER
$8.79¢4 394
1
#92200A
92200-0204
WASHER
$11.01¢5 506
1
