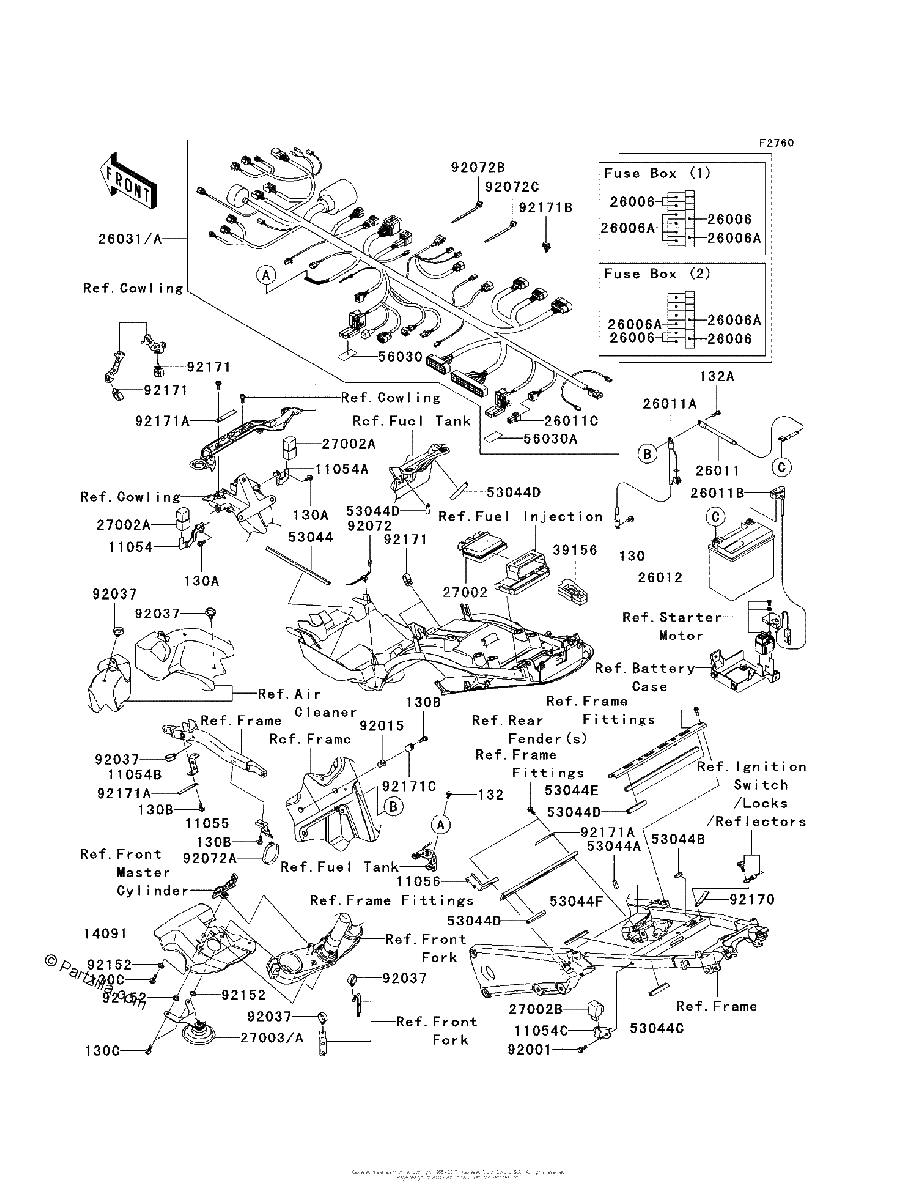

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.26¢631
#130A
BOLT FLANGED,6X14
$1.26¢631
#130B
BOLT FLANGED,6X16
$1.26¢631
#130C
BOLT-FLANGED,6X18
$1.52¢763
#132
BOLT-FLANGED-SMALL,6X12
$1.26¢631
#132A
BOLT FLANGED SMALL,6X16
$1.51¢756
#11054
BRACKET,RELAY,Left Hand
$16.85¢8 425
#11054A
BRACKET,RELAY,RH
$16.85¢8 425
#11054B
BRACKET,HARNESS
$9.90¢4 950
#11054C
BRACKET,SIGNAL LAMP RELAY
$10.24¢5 119
#11055
BRACKET,HARNESS
$11.63¢5 813
#11056
BRACKET,HARNESS
$11.59¢5 794
#14091
COVER,RADIATOR
$49.56¢24 781
#26006
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
#26006A
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
#26011
WIRE LEAD,BATTERY( )
$35.34¢17 669
#26011A
WIRE-LEAD,BATTERY(-)
$39.26¢19 631
#26011B
WIRE LEAD,BATTERY(+)
$67.98¢33 988
#26011C
WIRE-LEAD,CAP
$16.38¢8 188
#26012
BATTERY,FTZ14 BS,12V 14AH
No Disponible
#26031
HARNESS,MAIN
$1311.07¢655 537
#26031
HARNESS,MAIN
$1242.08¢621 038
#27002
RELAY-ASSY,BOX
No Disponible
#27002A
RELAY Assembly
$42.02¢21 013
#27002B
RELAY Assembly,TURN SIGNAL
$87.74¢43 869
#27003
HORN
$97.42¢48 713
#27003
HORN
$103.35¢51 675
#39156
PAD,DIAG COUPLER
$13.17¢6 587
#53044B
TRIM,L=22
$3.17¢1 588
#53044C
TRIM,L=60
$8.69¢4 344
#53044D
TRIM,L=60
$6.69¢3 344
#53044E
TRIM,AIR DUCT COVER
$13.45¢6 725
#53044F
TRIM,L=75
$10.79¢5 394
#53044A
TRIM,L=15
$3.17¢1 588
#53044
TRIM,L=220
$15.16¢7 581
#56030A
LABEL,FUSE BOX
$4.29¢2 144
#56030
LABEL,FUSE BOX1
$4.09¢2 044
#92001
BOLT,6X20
$3.95¢1 975
#92015
NUT
$8.53¢4 263
#92037
CLAMP,HOSE
$7.41¢3 706
#92072A
BAND,L=140
$6.85¢3 425
#92072B
BAND
$3.70¢1 850
#92072C
BAND
$3.70¢1 850
#92072
BAND
$3.17¢1 588
#92152
COLLAR,6.5X10X5.6
$4.88¢2 438
#92170
CLAMP
$2.33¢1 163
#92171A
CLAMP,L=60
$2.41¢1 206
#92171B
CLAMP
$12.38¢6 188
#92171
CLAMP,CLIP,DIA=20
$2.68¢1 338
#92171C
CLAMP
$9.90¢4 950
