CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

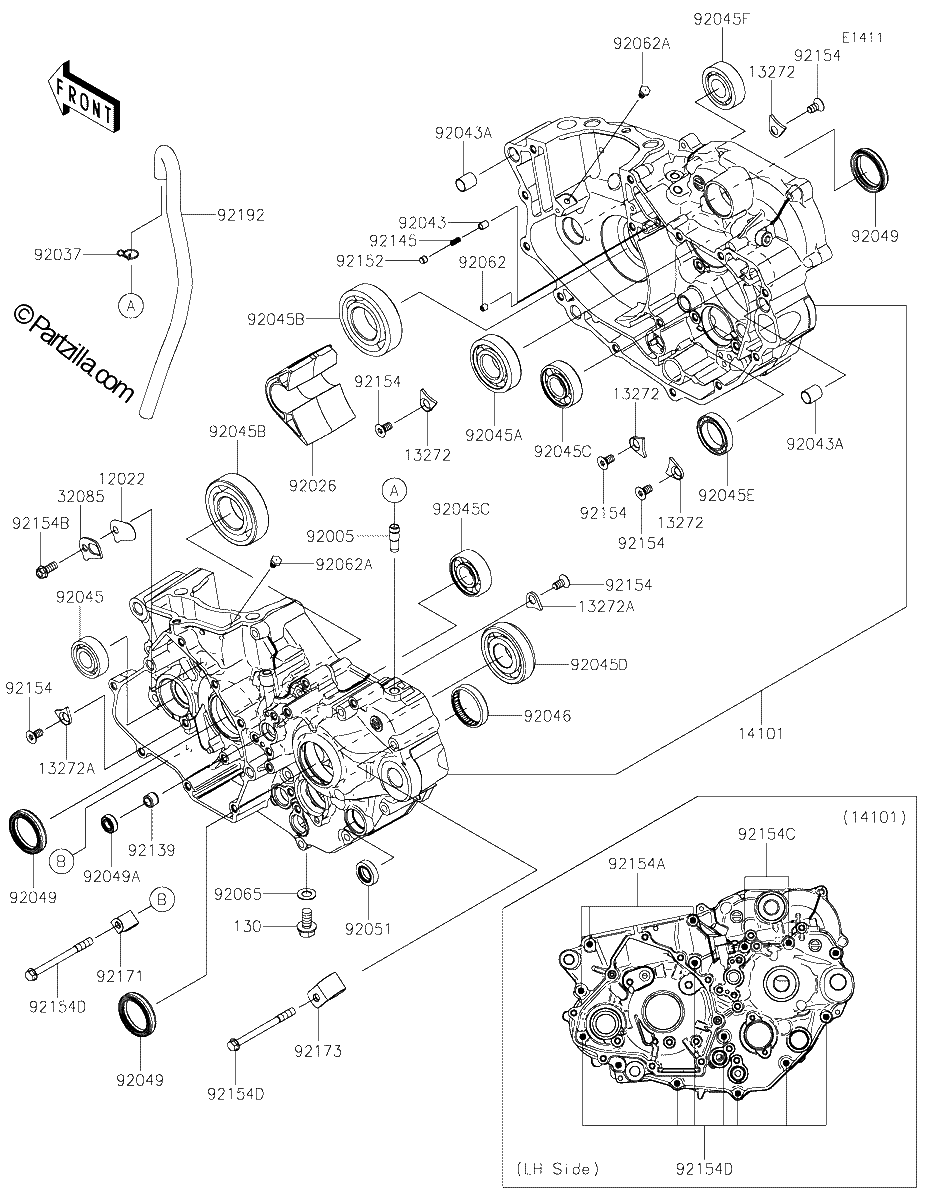

Diagrama de CRANKCASE

Repuestos

#130
130AA0816
BOLT-FLANGED,8X16
$0.85¢426
1
#12022
12022-0010
VALVE-REED
$10.06¢5 031
1
#13272
13272-0488
PLATE
$5.57¢2 783
1
#13272A
13272-0670
PLATE
$5.57¢2 783
1
#14101
14101-0046
SET CRANKCASE
$740.25¢370 128
1
#32085
32085-0876
STOPPER,VALVE-REED
$3.53¢1 765
1
#92005
92005-1369
FITTING
$8.02¢4 008
1
#92026
92026-0979
SPACER
$27.58¢13 789
1
#92037
92037-1972
CLAMP,TUBE
$3.94¢1 972
1
#92043
92043-1676
PIN,PLUNGER
$7.97¢3 985
1
#92043A
92043-4009
PIN,10.1X12X14
$5.60¢2 800
1
#92045
92045-0037
BEARING BALL,6202SH2C3
$12.75¢6 377
1
#92045F
92045-1465
BEARING BALL,6203
$32.95¢16 474
1
#92045B
92045-0827
BEARING-BALL,CRANKSHAFT MAIN
$67.57¢33 787
1
#92045A
92045-0051
BEARING BALL,22X50X14
$33.29¢16 646
1
#92045E
92045-1432
BEARING BALL,6805JRZ
$33.98¢16 991
1
#92045C
92045-1287
BEARING-BALL,TMB203LU
$25.52¢12 759
1
#92045D
92045-1335
BEARING BALL,SX04A81C3
$68.59¢34 293
1
#92046
92046-1221
BEARING NEEDLE,7E HKS33X38X8
$34.04¢17 020
1
#92049A
92049-0808
SEAL OIL
$8.21¢4 105
1
#92049
92049-0030
SEAL OIL,TC 30 40 7
$19.25¢9 625
1
#92051
92051-005
SEAL-OIL,TB13225.5
$7.08¢3 542
1
#92062A
92062-0576
NOZZLE
$14.66¢7 331
1
#92062
92062-0029
NOZZLE
$5.62¢2 812
1
#92065
92065-023
GASKET,8.5X16X1
$3.15¢1 576
1
#92139
92139-0907
BUSHING
$9.82¢4 910
1
#92145
92145-0453
SPRING
$3.54¢1 771
1
#92152
92152-2453
COLLAR
$1.59¢793
1
#92154D
92154-4134
BOLT,FLANGED,6X60
$1.31¢655
1
#92154C
92154-2981
BOLT,FLANGED,6X70
$1.31¢655
1
#92154B
92154-2964
BOLT,FLANGED,6X14
$0.71¢357
1
#92154A
92154-1929
BOLT,FLANGED,6X65
$1.43¢713
1
#92154
92154-1621
BOLT,TORX
$3.58¢1 788
1
#92171
92171-0761
CLAMP
$9.11¢4 554
1
#92173
92173-2551
CLAMP
$2.77¢1 386
1
#92192
92192-1886
TUBE,BREATHER
$9.58¢4 790
1
