HANDLEBAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

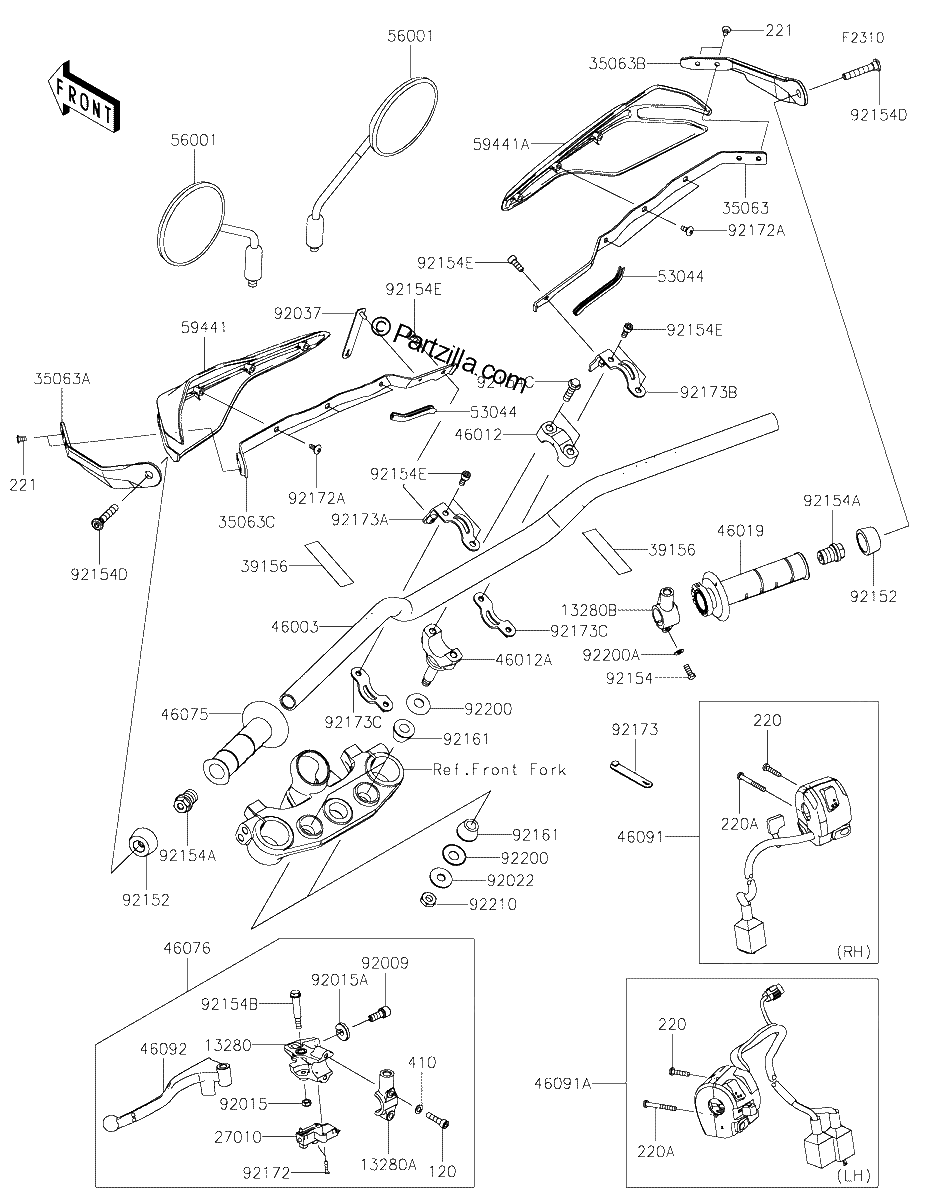

Diagrama de HANDLEBAR

Repuestos

#120
120CB0625
BOLT-SOCKET,6X25
$2.17¢1 087
1
#220
220AB0522
SCREW PAN CROS,5X22
$1.07¢535
1
#220A
220AB0540
SCREW-PAN-CROS,5X40
$1.78¢891
1
#221
221AB0510
SCREW CSK CROS,5X10
$4.32¢2 162
1
#410
410AB0600
WASHER-PLAIN-SMALL,6MM
$0.82¢408
1
#13280
13280-0929
HOLDER,LEVER
$44.52¢22 258
1
#13280A
13280-0930
HOLDER,MIRROR
$20.50¢10 252
1
#13280B
13280-1000
HOLDER,MIRROR
$22.31¢11 155
1
#27010
27010-0729
SWITCH,CLUTCH
$34.56¢17 279
1
#35063
35063-1616
STAY,HANDLE COVER,Right Hand
$22.13¢11 063
1
#35063A
35063-1663
STAY,HANDLE COVER,SIDE,Left Hand
$18.25¢9 125
1
#35063B
35063-1664
STAY,HANDLE COVER,SIDE,Right Hand
$18.25¢9 125
1
#35063C
35063-1665
STAY,HANDLE COVER,Left Hand
$22.13¢11 063
1
#39156
39156-2968
PAD,89X18
$2.48¢1 242
1
#46003
46003-0846
HANDLE,FAT TYPE BAR
$306.19¢153 094
1
#46012
46012-0449-21
HOLDER HANDLE,Upper,F BLACK
$22.82¢11 408
1
#46012A
46012-0450-21
HOLDER HANDLE,Lower,F BLACK
$28.97¢14 484
1
#46019
46019-0129
GRIP Assembly,THROTTLE
$39.81¢19 906
1
#46075
46075-0692
GRIP,Left Hand
$28.03¢14 013
1
#46076
46076-0198
LEVER Assembly GRIP,CLUTCH
$131.08¢65 539
1
#46091
46091-0687
HOUSING Assembly CONTROL,Right Hand
$162.50¢81 248
1
#46091A
46091-0717
HOUSING Assembly CONTROL,Left Hand
$168.15¢84 077
1
#46092
46092-0586
LEVER GRIP,CLUTCH
$25.60¢12 800
1
#53044
53044-0556
TRIM,L=85
$11.45¢5 727
1
#56001
56001-0419
MIRROR Assembly
$50.51¢25 254
1
#59441
59441-0313-67J
COVER HANDLE,Left Hand,W BEIGE
$28.50¢14 249
1
#59441A
59441-0314-67J
COVER HANDLE,Right Hand,W BEIGE
$28.50¢14 249
1
#92009
92009-1134
SCREW,CABLE ADJUST,8MM,BLACK
$13.79¢6 894
1
#92015
92015-1191
NUT,LOCK,6MM
No Disponible
1
#92015A
92015-1197
NUT,CABLE ADJUST LOCK,8MM,BLK
$9.04¢4 520
1
#92022
92022-1088
WASHER,10.2X28X2
$4.28¢2 139
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.18¢3 588
1
#92152
92152-3982
COLLAR
$10.88¢5 440
1
#92154D
92154-7319
BOLT,BAR END
$10.81¢5 405
1
#92154E
92154-7346
BOLT,SOCKET,6X16
$2.55¢1 277
1
#92154
92154-1422
BOLT,UPSET,6X22
$4.48¢2 242
1
#92154A
92154-1902
BOLT,17X18
$17.13¢8 567
1
#92154B
92154-2331
BOLT,FLANGED,6X44
$6.95¢3 473
1
#92154C
92154-7282
BOLT,FLANGED,8X30
$1.77¢886
1
#92161
92161-2116
DAMPER,12X26X19
$5.49¢2 743
1
#92172A
92172-0857
SCREW,5X12
$0.75¢374
1
#92172
92172-0183
SCREW,3X16
$1.87¢937
1
#92173
92173-2199
CLAMP
$1.43¢713
1
#92173A
92173-2845
CLAMP,HANDLE,Upper,Left Hand
$7.76¢3 881
1
#92173B
92173-2846
CLAMP,HANDLE,Upper,Right Hand
$7.76¢3 881
1
#92173C
92173-2847
CLAMP,HANDLE,Lower
$5.37¢2 685
1
#92200A
92200-0947
WASHER,6.5X11.5X0.8
$0.51¢253
1
#92200
92200-0872
WASHER,12.5X27.6X1.2
$5.01¢2 507
1
#92210
92210-1672
NUT,LOCK,10MM
$4.20¢2 099
1
