HANDLEBAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

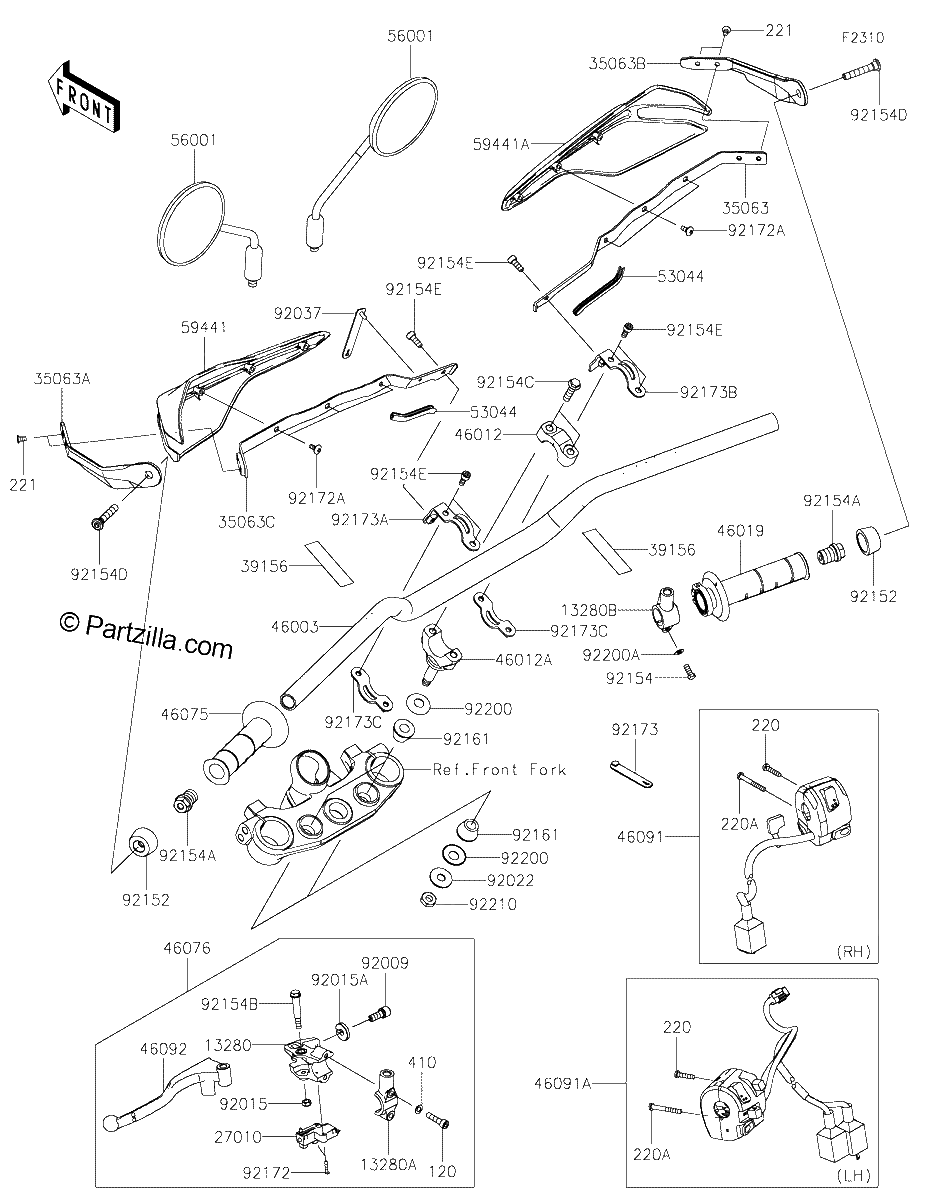

Diagrama de HANDLEBAR

Repuestos

#120
120CB0625
BOLT-SOCKET,6X25
$2.36¢1 181
1
#220
220AB0522
SCREW PAN CROS,5X22
$1.16¢581
1
#220A
220AB0540
SCREW-PAN-CROS,5X40
$1.94¢969
1
#221
221AB0510
SCREW CSK CROS,5X10
$4.70¢2 350
1
#410
410AB0600
WASHER-PLAIN-SMALL,6MM
$0.89¢444
1
#13280
13280-0929
HOLDER,LEVER
$48.39¢24 194
1
#13280A
13280-0930
HOLDER,MIRROR
$22.29¢11 144
1
#13280B
13280-1000
HOLDER,MIRROR
$24.25¢12 125
1
#27010
27010-0729
SWITCH,CLUTCH
$37.56¢18 781
1
#35063
35063-1616
STAY,HANDLE COVER,Right Hand
$24.05¢12 025
1
#35063A
35063-1663
STAY,HANDLE COVER,SIDE,Left Hand
$19.84¢9 919
1
#35063B
35063-1664
STAY,HANDLE COVER,SIDE,Right Hand
$19.84¢9 919
1
#35063C
35063-1665
STAY,HANDLE COVER,Left Hand
$24.05¢12 025
1
#39156
39156-2968
PAD,89X18
$2.70¢1 350
1
#46003
46003-0860
HANDLE,FAT TYPE BAR
$332.81¢166 406
1
#46012
46012-0449-18R
HOLDER HANDLE,Upper,F S BLACK
$24.80¢12 400
1
#46012A
46012-0450-18R
HOLDER HANDLE,Lower,F S BLACK
$31.49¢15 744
1
#46019
46019-0129
GRIP Assembly,THROTTLE
$43.27¢21 638
1
#46075
46075-0692
GRIP,Left Hand
$30.46¢15 231
1
#46076
46076-0206
LEVER Assembly GRIP,CLUTCH
$142.47¢71 238
1
#46091
46091-0687
HOUSING Assembly CONTROL,Right Hand
$176.63¢88 313
1
#46091A
46091-0717
HOUSING Assembly CONTROL,Left Hand
$182.78¢91 388
1
#46092
46092-0591
LEVER GRIP,CLUTCH
$28.99¢14 494
1
#53044
53044-0556
TRIM,L=85
$12.45¢6 225
1
#56001
56001-0419
MIRROR Assembly
$54.90¢27 450
1
#59441A
59441-0314-67K
COVER HANDLE,Right Hand,M C GRAY
$30.98¢15 488
1
#59441
59441-0313-67K
COVER HANDLE,Left Hand,M C GRAY
$30.98¢15 488
1
#92009
92009-1134
SCREW,CABLE ADJUST,8MM,BLACK
$14.99¢7 494
1
#92015
92015-1191
NUT,LOCK,6MM
No Disponible
1
#92015A
92015-1197
NUT,CABLE ADJUST LOCK,8MM,BLK
$9.83¢4 913
1
#92022
92022-1088
WASHER,10.2X28X2
$4.65¢2 325
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92152
92152-3982
COLLAR
$11.83¢5 913
1
#92154D
92154-7319
BOLT,BAR END
$11.75¢5 875
1
#92154E
92154-7346
BOLT,SOCKET,6X16
$2.78¢1 388
1
#92154
92154-1422
BOLT,UPSET,6X22
$4.88¢2 438
1
#92154A
92154-1902
BOLT,17X18
$18.63¢9 313
1
#92154B
92154-2331
BOLT,FLANGED,6X44
$7.55¢3 775
1
#92154C
92154-2655
BOLT,FLANGED,8X30
$1.90¢950
1
#92161
92161-2116
DAMPER,12X26X19
$5.96¢2 981
1
#92172
92172-0183
SCREW,3X16
$2.04¢1 019
1
#92172A
92172-0857
SCREW,5X12
$0.81¢406
1
#92173A
92173-2845
CLAMP,HANDLE,Upper,Left Hand
$8.44¢4 219
1
#92173B
92173-2846
CLAMP,HANDLE,Upper,Right Hand
$8.44¢4 219
1
#92173C
92173-2847
CLAMP,HANDLE,Lower
$5.84¢2 919
1
#92173
92173-2199
CLAMP
$1.55¢775
1
#92200
92200-0872
WASHER,12.5X27.6X1.2
$5.45¢2 725
1
#92200A
92200-0947
WASHER,6.5X11.5X0.8
$0.55¢275
1
#92210
92210-1672
NUT,LOCK,10MM
$4.56¢2 281
1
