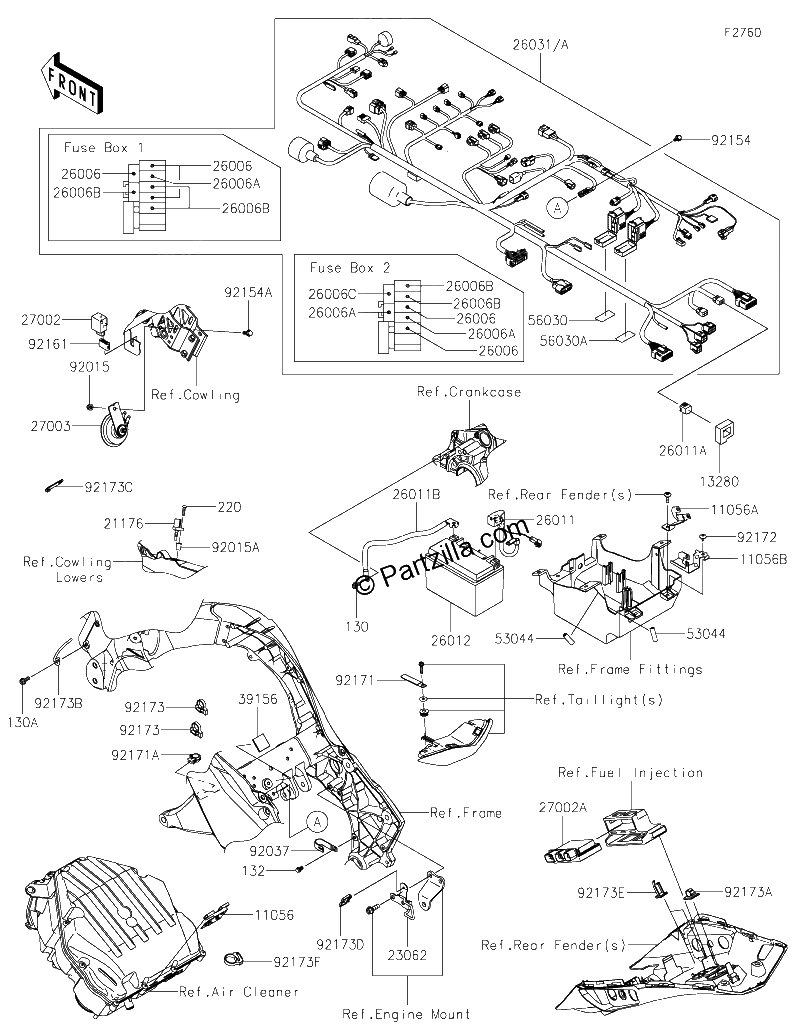

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.26¢631
#130A
BOLT FLANGED,6X16
$1.94¢969
#132
BOLT-FLANGED-SMALL,6X10
$1.66¢831
#220
SCREW-PAN-CROS,5X18
$3.65¢1 825
#11056
BRACKET,SPEED SENSOR
$9.26¢4 631
#11056A
BRACKET,Rear SIGNAL
$9.29¢4 644
#11056B
BRACKET,BATTERY(+)
$9.05¢4 525
#13280
HOLDER
$2.63¢1 313
#21176
SENSOR,AIR TEMPERATURE
$28.36¢14 181
#23062
BRACKET COMP,CABLE GUIDE
$20.75¢10 375
#26006
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
#26006A
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
#26006B
FUSE,MINI BLADE,7.5A,BROWN
$6.69¢3 344
#26006C
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
#26011
WIRE LEAD,BATTERY(+)
$52.46¢26 231
#26011A
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
#26011B
WIRE LEAD,BATTERY( )
$35.85¢17 925
#26012
BATTERY,YTX9 BS,12V 8AH
No Disponible
#26031
HARNESS,MAIN
$1242.65¢621 325
#26031A
HARNESS,MAIN
$1242.65¢621 325
#27002A
RELAY-ASSY,BOX
$162.96¢81 481
#27002
RELAY Assembly,SIGNAL LAMP
$65.61¢32 806
#27003
HORN
$84.98¢42 488
#39156
PAD,30X30X3
$1.38¢688
#53044
TRIM,L=30
$2.68¢1 338
#56030A
LABEL,FUSE BOX1
$3.05¢1 525
#56030
LABEL,FUSE BOX2
$3.10¢1 550
#92015A
NUT,WELL,5MM
$7.26¢3 631
#92015
NUT,FLANGED,6MM
$3.29¢1 644
#92037
CLAMP,CABLE,STEEL SHEET
$1.99¢994
#92154A
BOLT,FLANGED,6X16
$2.04¢1 019
#92154
BOLT,FLANGED,6X16
$1.69¢844
#92161
DAMPER,SIGNAL RELAY
$2.84¢1 419
#92171A
CLAMP,EDGE CLIP
$9.25¢4 625
#92171
CLAMP,L=60
$2.41¢1 206
#92172
SCREW,TAPPING,6X12
$2.68¢1 338
#92173
CLAMP,SNAPPER
$4.90¢2 450
#92173A
CLAMP,DRAIN
$6.49¢3 244
#92173B
CLAMP,IRON WIRE
$6.13¢3 063
#92173C
CLAMP,RUBBER PLATE
$4.16¢2 081
#92173D
CLAMP,CABLE CLIP
$1.72¢862
#92173E
CLAMP,LOCKING WIRE SADDLE
$4.88¢2 438
#92173F
CLAMP,SNP-22-0W
$5.84¢2 919
