IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

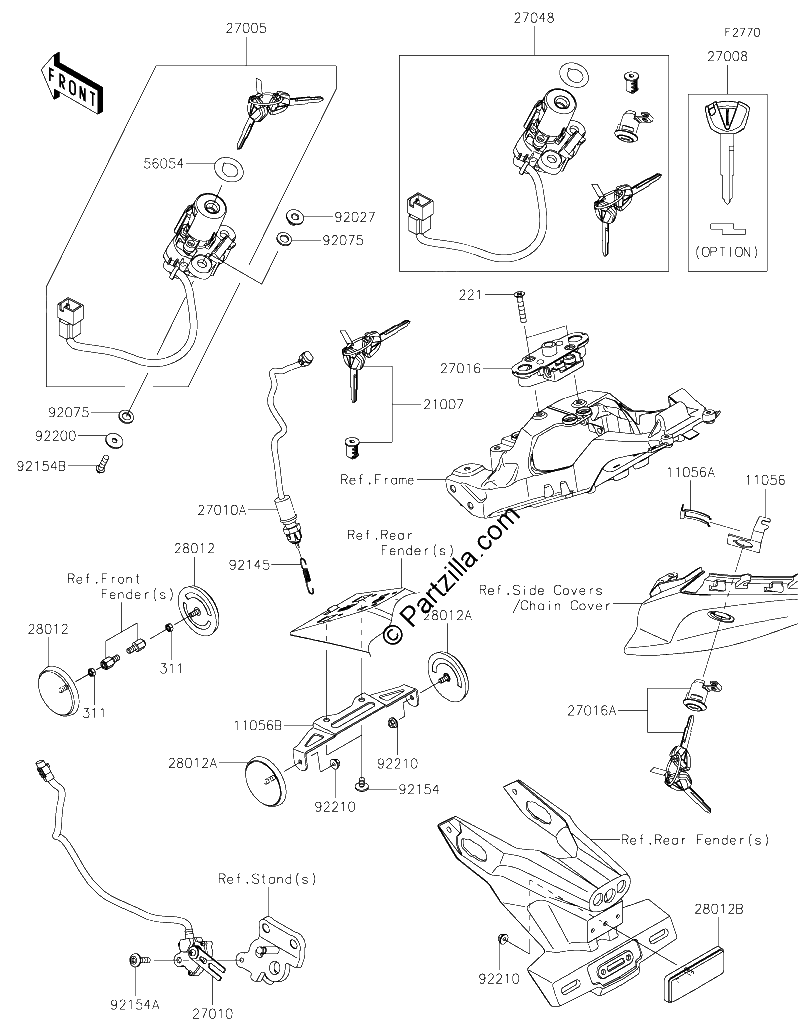

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#221
221AB0635
SCREW-CSK-CROS,6X35
$1.38¢688
1
#311
311AB0500
NUT HEX,5MM
$0.60¢300
1
#11056
11056-0237
BRACKET
$4.38¢2 188
1
#11056A
11056-0238
BRACKET,CLASP
$5.90¢2 950
1
#11056B
11056-4496
BRACKET,REFLECTOR
$18.51¢9 256
1
#21007
21007-5068
ROTOR,LOCK,TANK CAP
$106.38¢53 188
1
#27005
27005-0621
SWITCH-ASSY-IGNITION
$229.56¢114 781
1
#27008
27008-0069
KEY LOCK,BLANK
$25.58¢12 788
1
#27010
27010-0003
SWITCH,SIDE STAND
$82.90¢41 450
1
#27010A
27010-0836
SWITCH,STOP
$42.50¢21 250
1
#27016
27016-0035
LOCK Assembly,SEAT STRIKER
$78.17¢39 088
1
#27016A
27016-5391
LOCK-ASSY,SEAT
$108.81¢54 406
1
#27048
27048-5104
SWITCH Assembly
$522.60¢261 300
1
#28012B
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$25.51¢12 756
1
#28012A
28012-0002
REFLECTOR REFLEX
$25.51¢12 756
1
#56054
56054-0969
MARK,IGNITION SWITCH
$12.29¢6 144
1
#92027
92027-1045
COLLAR,L=9.6
$5.45¢2 725
1
#92075
92075-1564
DAMPER
$5.41¢2 706
1
#92145
92145-1890
SPRING,REAR BRAKE SWITCH
$3.65¢1 825
1
#92154B
92154-1858
BOLT,TORX,6X22
$3.93¢1 963
1
#92154A
92154-1810
BOLT,SOCKET,6X22
$3.84¢1 919
1
#92154
92154-1693
BOLT,SOCKET,6X10
$1.72¢862
1
#92200
92200-0212
WASHER,6X20X1.6
$3.01¢1 506
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
