REAR MASTER CYLINDER 1 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

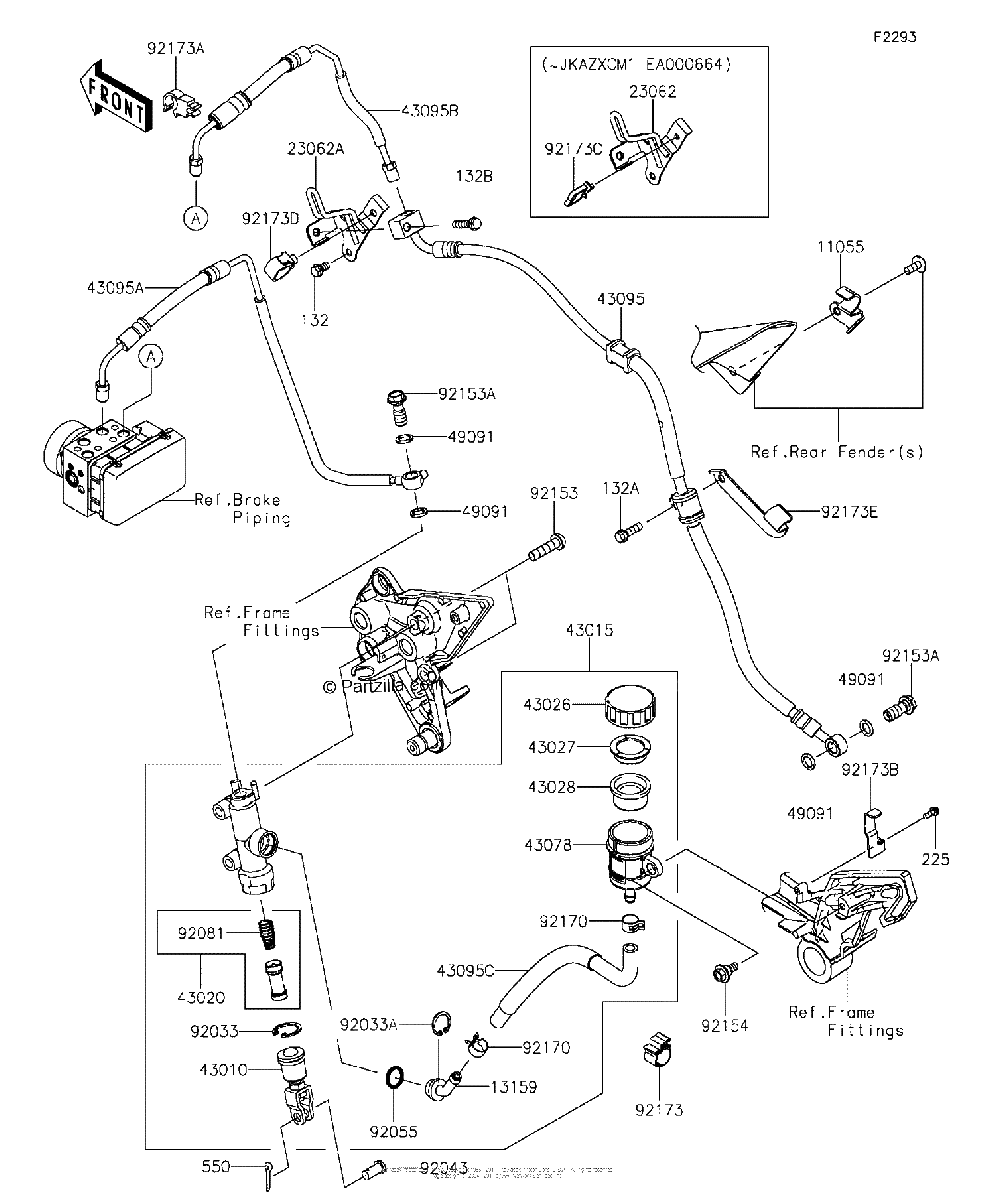

Diagrama de REAR MASTER CYLINDER 1 2

Repuestos

#11055
11055-1785
BRACKET
$8.52¢4 261
1
#13159
13159-0008
CONNECTOR
$11.41¢5 704
1
#23062
23062-0814
BRACKET COMP
$25.33¢12 667
1
#23062A
23062-0823
BRACKET-COMP
$26.01¢13 006
1
#43010
43010-1062
ROD Assembly BRAKE
$53.67¢26 835
1
#43015
43015-0596
CYLINDER Assembly MASTER,Rear
$482.56¢241 282
1
#43020
43020-1057
PISTON-COMP-BRAKE
$68.37¢34 184
1
#43026
43026-0009
CAP-BRAKE
$41.78¢20 890
1
#43027
43027-1053
PLATE DIAPHRAGM
$5.35¢2 674
1
#43028
43028-1065
DIAPHRAGM
$19.22¢9 608
1
#43078
43078-0060
RESERVOIR
$36.34¢18 170
1
#43095
43095-0510
HOSE BRAKE,Rear
$203.76¢101 879
1
#43095C
43095-0811
HOSE-BRAKE,RR M/C
$35.93¢17 963
1
#43095B
43095-0786
HOSE-BRAKE,HU-RR CALIPER
$109.87¢54 936
1
#43095A
43095-0785
HOSE-BRAKE,HU-RR M/C
$137.48¢68 741
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
1
#92033A
92033-1186
RING-SNAP,20.5MM
$4.53¢2 266
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.12¢3 559
1
#92043
92043-0104
PIN,8X17
$3.58¢1 788
1
#92055
92055-0741
RING O,14.8X2.4
$3.38¢1 691
1
#92081
92081-1737
SPRING,MASTER CYLINDER
$12.59¢6 296
1
#92153A
92153-0627
BOLT,OIL,L=23
$4.98¢2 490
1
#92153
92153-0393
BOLT,SOCKET,8X30
$3.40¢1 702
1
#92154
92154-0385
BOLT,FLANGED,6X16
$3.88¢1 938
1
#92170
92170-1091
CLAMP,HOSE
$4.57¢2 283
1
#92173D
92173-0868
CLAMP,HOLDER CLIP
$2.53¢1 265
1
#92173C
92173-0229
CLAMP
$1.95¢977
1
#92173B
92173-0221
CLAMP
$7.77¢3 887
1
#92173A
92173-0170
CLAMP
$4.23¢2 116
1
#92173
92173-0127
CLAMP,CLIP
$15.92¢7 958
1
#92173E
92173-1248
CLAMP
$5.37¢2 685
1
