IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

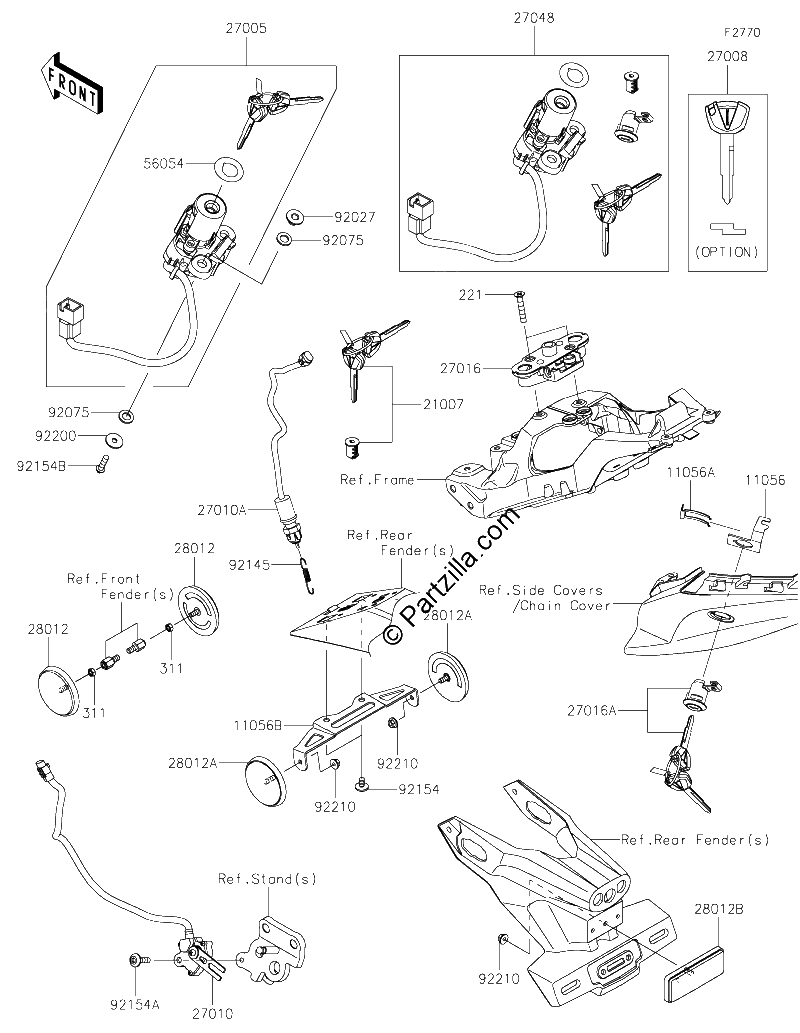

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#221
221AB0635
SCREW-CSK-CROS,6X35
$1.26¢633
1
#311
311AB0500
NUT HEX,5MM
$0.55¢276
1
#11056
11056-0237
BRACKET
$4.02¢2 012
1
#11056A
11056-0238
BRACKET,CLASP
$5.43¢2 714
1
#11056B
11056-4496
BRACKET,REFLECTOR
$17.03¢8 516
1
#21007
21007-5068
ROTOR,LOCK,TANK CAP
$97.86¢48 932
1
#27005
27005-0633
SWITCH-ASSY-IGNITION
$274.76¢137 379
1
#27008
27008-0069
KEY LOCK,BLANK
$23.53¢11 765
1
#27010
27010-0003
SWITCH,SIDE STAND
$76.27¢38 134
1
#27010A
27010-0836
SWITCH,STOP
$39.10¢19 550
1
#27016
27016-0035
LOCK Assembly,SEAT STRIKER
$71.92¢35 960
1
#27016A
27016-5391
LOCK-ASSY,SEAT
$100.11¢50 054
1
#27048
27048-5129
SWITCH-ASSY
$610.90¢305 452
1
#28012B
28012-1077
REFLECTOR-REFLEX
$23.44¢11 718
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$23.47¢11 736
1
#28012A
28012-0002
REFLECTOR REFLEX
$23.47¢11 736
1
#56054
56054-0969
MARK,IGNITION SWITCH
$11.30¢5 652
1
#92027
92027-1045
COLLAR,L=9.6
$5.01¢2 507
1
#92075
92075-1564
DAMPER
$4.98¢2 490
1
#92145
92145-1890
SPRING,REAR BRAKE SWITCH
$3.36¢1 679
1
#92154B
92154-1858
BOLT,TORX,6X22
$3.61¢1 805
1
#92154A
92154-1810
BOLT,SOCKET,6X22
$3.53¢1 765
1
#92154
92154-1693
BOLT,SOCKET,6X10
$1.59¢793
1
#92200
92200-0212
WASHER,6X20X1.6
$2.77¢1 386
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.28¢1 138
1
