FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

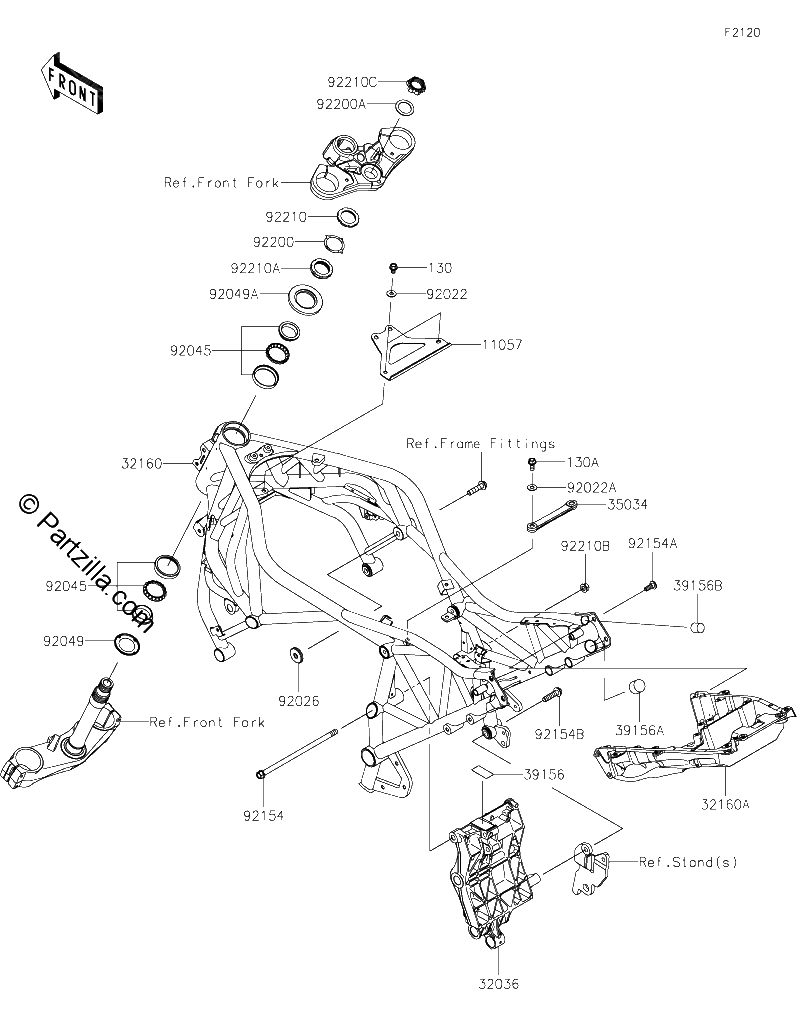

Diagrama de FRAME

Repuestos

#130
130BB0812
BOLT-FLANGED,8X12
$0.81¢406
1
#130A
130CA0818
BOLT-FLANGED,8X18
$2.36¢1 181
1
#11057
11057-1432
BRACKET,REINFORCE
$21.63¢10 813
1
#32036
32036-0353-46R
BRACKET SWINGARM,M F S BLACK
$652.83¢326 413
1
#32160
32160-0931-46R
FRAME-COMP,M.F.S.BLACK
$5984.01¢2 992 006
1
#32160A
32160-0960
FRAME-COMP,RR
$908.53¢454 263
1
#35034
35034-0605
REINFORCE
$81.63¢40 813
1
#39156
39156-1896
PAD,22X45
$8.47¢4 238
1
#39156B
39156-2501
PAD,20X20
$4.11¢2 056
1
#39156A
39156-2500
PAD,27X20
$4.88¢2 438
1
#92022
92022-1317
WASHER,8.5X20X1.6,BLACK
$4.29¢2 144
1
#92022A
92022-1561
WASHER,8.5X20X1.6
$4.29¢2 144
1
#92026
92026-0839
SPACER,10.1X35X6
$26.52¢13 263
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$52.01¢26 006
1
#92049A
92049-1382
SEAL OIL,XMH 43 75 6.4J
$25.80¢12 900
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$17.09¢8 544
1
#92154B
92154-2924
BOLT,FLANGED,10X40
$6.51¢3 256
1
#92154A
92154-1901
BOLT,SOCKET,8X23
$3.57¢1 787
1
#92154
92154-1556
BOLT,FLANGED,10X223
$38.96¢19 481
1
#92200A
92200-0595
WASHER,28.5X40X1.6
$4.30¢2 150
1
#92200
92200-0036
WASHER
$4.96¢2 481
1
#92210B
92210-1139
NUT,LOCK,FLANGED,10MM
$3.77¢1 888
1
#92210A
92210-0096
NUT,35MM
$21.66¢10 831
1
#92210
92210-0095
NUT,35MM
$17.94¢8 969
1
#92210C
92210-1460
NUT,28MM
$95.81¢47 906
1
