FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

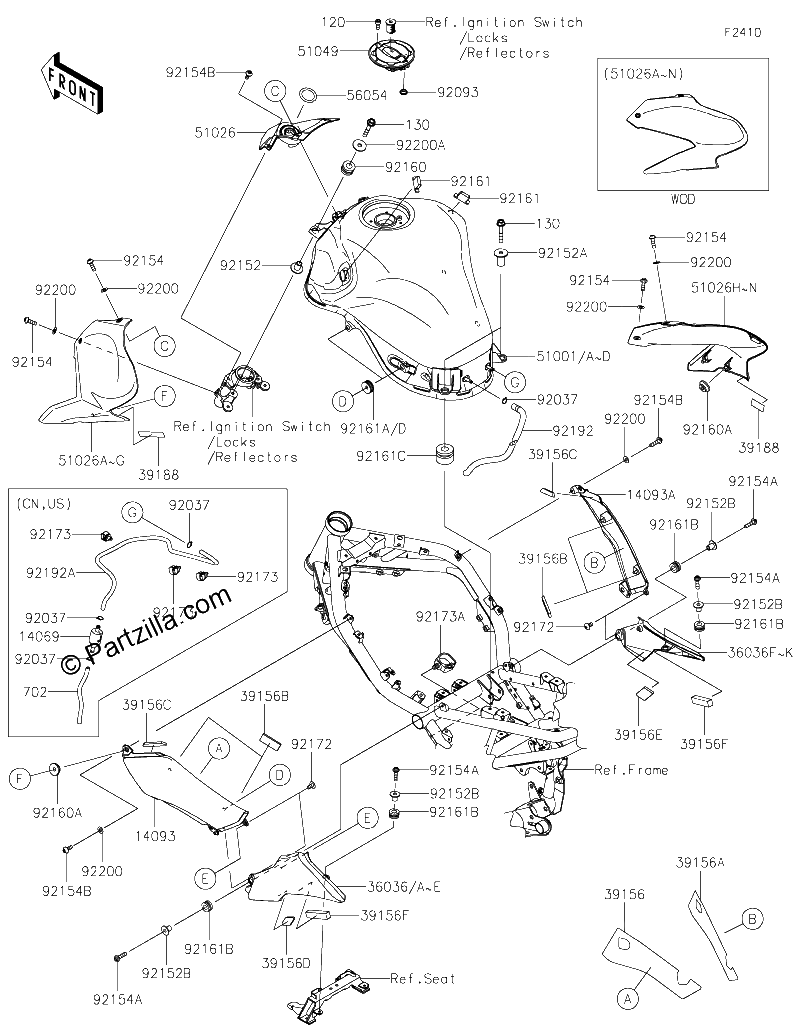

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#130
130BA0635
BOLT-FLANGED,6X35
$0.93¢466
1
#702
702A06300
TUBE RUBBER,6X9X300
$4.98¢2 490
1
#14069
14069-0008
BREATHER,TANK
$6.18¢3 088
1
#14093
14093-0667
COVER,KNEE GRIP,LH
$24.24¢12 121
1
#14093A
14093-0668
COVER,KNEE GRIP,RH
$24.24¢12 121
1
#36036A
36036-5092-40X
COVER-SIDE,SEAT,LH,P.F.S.WHITE
No Disponible
1
#36036D
36036-5092-739
COVER-SIDE,SEAT,LH,M.F.S.BLACK
$22.85¢11 425
1
#36036E
36036-5092-H8
COVER-SIDE,SEAT,LH,EBONY
$22.65¢11 327
1
#36036G
36036-5093-40X
COVER-SIDE,SEAT,RH,P.F.S.WHITE
No Disponible
1
#36036J
36036-5093-739
COVER-SIDE,SEAT,RH,M.F.S.BLACK
$22.85¢11 425
1
#36036K
36036-5093-H8
COVER-SIDE,SEAT,RH,EBONY
$22.85¢11 425
1
#39156A
39156-2148
PAD,KNEE GRIP COVER,RH
$8.02¢4 008
1
#39156
39156-2147
PAD,KNEE GRIP COVER,LH
$8.02¢4 008
1
#39156B
39156-2191
PAD,20X50X5
$1.26¢633
1
#39156C
39156-2192
PAD,10X76X5
$1.39¢696
1
#39156D
39156-2194
PAD,20X20X5
$1.26¢633
1
#39156E
39156-2195
PAD,25X50X5
$2.55¢1 277
1
#39156F
39156-2215
PAD,15X66X10
$1.92¢960
1
#39188
39188-0564
TAPE,8X35
$1.37¢684
1
#51001B
51001-0873-660
TANK-COMP-FUEL,M.S.BLACK
$1421.09¢710 545
1
#51001C
51001-0873-739
TANK-COMP-FUEL,M.F.S.BLACK
$1181.08¢590 542
1
#51001D
51001-0873-H8
TANK-COMP-FUEL,EBONY
$1421.09¢710 545
1
#51026J
51026-5095-40X
COVER TANK,RH,P.F.S.WHITE,WOD
No Disponible
1
#51026M
51026-5095-660
COVER TANK,RH,M.S.BLACK,WOD
$143.35¢71 674
1
#51026H
51026-5095-25X
COVER TANK,RH,M.M.GRAY,WOD
$143.35¢71 674
1
#51026F
51026-5094-660
COVER TANK,LH,M.S.BLACK,WOD
$143.35¢71 674
1
#51026
51026-0013
COVER TANK,CNT
$18.29¢9 143
1
#51026A
51026-5094-25X
COVER TANK,LH,M.M.GRAY,WOD
$143.35¢71 674
1
#51026C
51026-5094-40X
COVER TANK,LH,P.F.S.WHITE,WOD
No Disponible
1
#51049
51049-0735
CAP-TANK
$160.05¢80 023
1
#56054
56054-1822
MARK,IG SWITCH
$9.31¢4 658
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.59¢1 794
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152
92152-1847
COLLAR,6.3X9.5X14.1
$6.09¢3 048
1
#92152A
92152-2252
COLLAR,6.3X12X22.6
$2.98¢1 489
1
#92152B
92152-2342
COLLAR,5.6X8X11.2
$2.37¢1 185
1
#92154B
92154-1421
BOLT,SOCKET,5X12
$0.97¢483
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154A
92154-0210
BOLT,SOCKET,5X20
$1.84¢920
1
#92160
92160-1167
DAMPER,10X20X12
$4.28¢2 139
1
#92160A
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-0365
DAMPER
$4.84¢2 421
1
#92161B
92161-0685
DAMPER,8X16X8.6
$5.95¢2 973
1
#92161C
92161-1468
DAMPER,12X28X21
$4.23¢2 116
1
#92161D
92161-1991
DAMPER,6X20X7.5
$3.83¢1 915
1
#92172
92172-0864
SCREW,5X10
$1.24¢621
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92173A
92173-0861
CLAMP
$2.53¢1 265
1
#92192
92192-1688
TUBE,6X9X670/30
$13.56¢6 779
1
#92192A
92192-1734
TUBE,6X9X670/30,BLUE
$13.82¢6 911
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92200A
92200-1087
WASHER,6.5X22X1.6
$3.61¢1 805
1
