CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

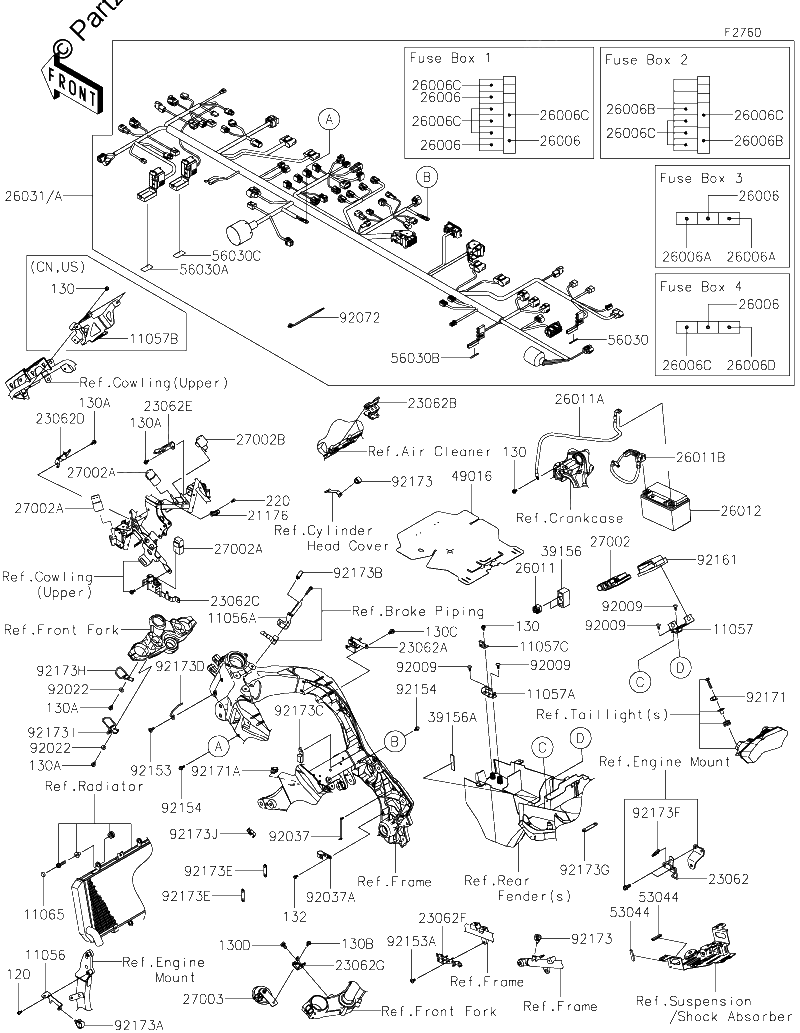

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#120
120CA0612
BOLT-SOCKET,6X12
$1.66¢831
1
#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#130B
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130C
130BA0812
BOLT-FLANGED,8X12
$1.02¢513
1
#130D
130BA0814
BOLT FLANGED,8X14
$2.00¢1 000
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.66¢831
1
#220
220AB0516
SCREW-PAN-CROS,5X16
$1.66¢831
1
#11056
11056-1478
BRACKET,ENGINE
$6.39¢3 194
1
#11056A
11056-4165
BRACKET,WHEEL SPEED SENSOR
$4.19¢2 094
1
#11057
11057-1688
BRACKET,RELAY BOX
$12.70¢6 350
1
#11057A
11057-1707
BRACKET,RR FENDER
$6.51¢3 256
1
#11057B
11057-1728
BRACKET,CANISTER
$35.77¢17 888
1
#11057C
11057-2454
BRACKET,WATERPROOF JOINT
$4.79¢2 394
1
#11065
11065-0752
CAP,BOLT
$2.26¢1 131
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$28.36¢14 181
1
#23062
23062-0811
BRACKET COMP,CABLE GUIDE
$20.75¢10 375
1
#23062A
23062-1179
BRACKET-COMP,A/C,RH
$22.81¢11 406
1
#23062B
23062-1180
BRACKET-COMP,A/C,RR
$14.06¢7 031
1
#23062G
23062-1206
BRACKET-COMP,HORN
$12.40¢6 200
1
#23062F
23062-1202
BRACKET-COMP,KECS HARNESS
$27.09¢13 544
1
#23062E
23062-1201
BRACKET-COMP,FOG SWITCH
$29.93¢14 963
1
#23062D
23062-1200
BRACKET-COMP,DC PUT
$29.93¢14 963
1
#23062C
23062-1181
BRACKET-COMP,IMMOBI AMP.
$19.80¢9 900
1
#26006B
26006-0055
FUSE,MINI BLADE,7.5A,BROWN
$6.69¢3 344
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26011B
26011-1862
WIRE-LEAD,BATTERY(+)
$64.42¢32 213
1
#26011A
26011-1861
WIRE-LEAD,BATTERY(-)
$60.74¢30 369
1
#26011
26011-0275
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
1
#26012
26012-0838
BATTERY,YTX9 BS,12V 8AH
No Disponible
1
#26031A
26031-2634
HARNESS,MAIN
$1602.81¢801 406
1
#26031
26031-2632
HARNESS,MAIN
$1602.81¢801 406
1
#27002
27002-0028
RELAY-ASSY
$162.96¢81 481
1
#27002B
27002-1097
RELAY Assembly,SIGNAL LAMP
$56.99¢28 494
1
#27002A
27002-1086
RELAY Assembly
$42.02¢21 013
1
#27003
27003-0142
HORN
$84.84¢42 419
1
#39156
39156-2354
PAD,DIAG CONNECTOR
$5.98¢2 988
1
#39156A
39156-2448
PAD,15X60X2
$1.38¢688
1
#49016
49016-0667
COVER-SEAL
$44.45¢22 225
1
#53044
53044-0662
TRIM,L=40
$4.94¢2 469
1
#56030B
56030-1436
LABEL,FUSE BOX4
$3.05¢1 525
1
#56030C
56030-1438
LABEL,FUSE BOX2
$3.05¢1 525
1
#56030
56030-0400
LABEL,FUSE BOX3
$4.59¢2 294
1
#56030A
56030-1432
LABEL,FUSE BOX1
$3.05¢1 525
1
#92009
92009-1113
SCREW,TAPPING
$3.90¢1 950
1
#92022
92022-2247
WASHER
$0.74¢369
1
#92037A
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.99¢994
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92072
92072-1414
BAND
$3.70¢1 850
1
#92153
92153-1526
BOLT,SOCKET,6X16
$1.72¢862
1
#92153A
92153-1948
BOLT,SOCKET,6X12
$1.79¢894
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92161
92161-0203
DAMPER,RELAY BOX
$11.73¢5 863
1
#92171
92171-0813
CLAMP
$9.90¢4 950
1
#92171A
92171-1722
CLAMP,EDGE CLIP
$9.25¢4 625
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173A
92173-0861
CLAMP
$2.75¢1 375
1
#92173B
92173-0868
CLAMP,HOLDER CLIP
$2.75¢1 375
1
#92173C
92173-1008
CLAMP,84MM
$5.47¢2 738
1
#92173D
92173-1199
CLAMP,IRON WIRE
$6.13¢3 063
1
#92173E
92173-1229
CLAMP,RUBBER PLATE
$4.16¢2 081
1
#92173F
92173-1242
CLAMP,CABLE CLIP
$1.72¢862
1
#92173G
92173-1526
CLAMP
$4.16¢2 081
1
#92173H
92173-1914
CLAMP,FRONT FORK,LH
$27.09¢13 544
1
#92173I
92173-1915
CLAMP,FRONT FORK,RH
$27.09¢13 544
1
#92173J
92173-1971
CLAMP
$3.04¢1 519
1
