CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

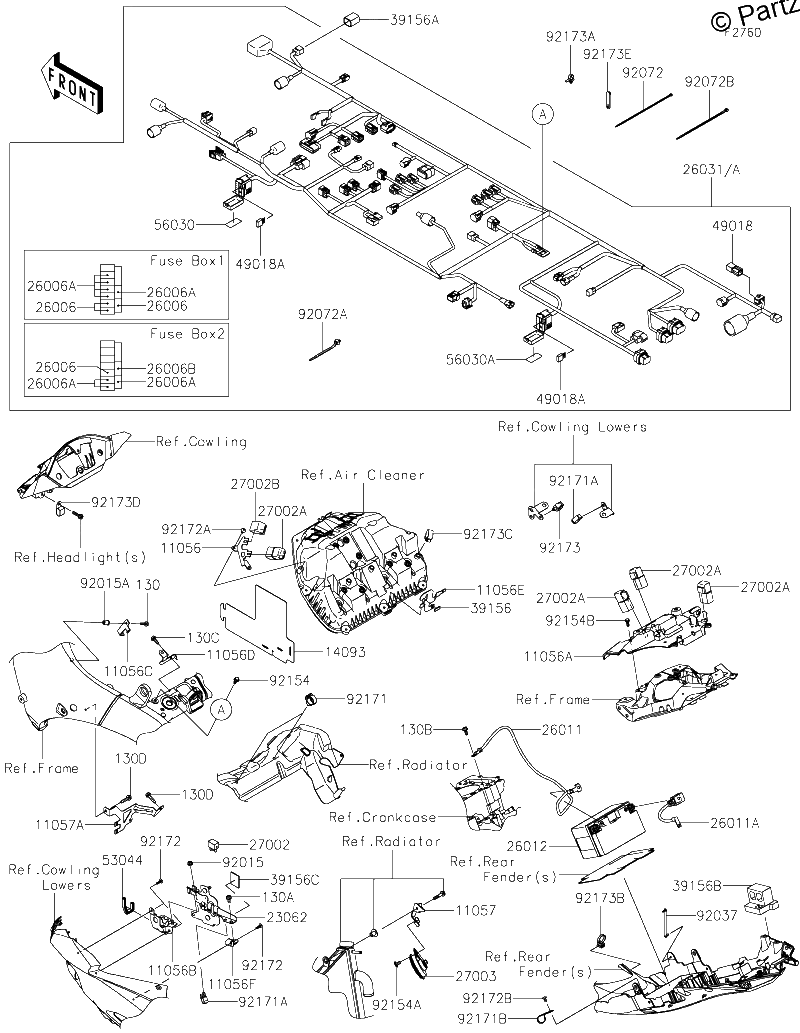

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0518
BOLT-FLANGED,5X18
$1.52¢763
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#130B
130BA0614
BOLT FLANGED,6X14
$1.26¢631
1
#130C
130BA0616
BOLT FLANGED,6X16
$1.26¢631
1
#130D
130BA0625
BOLT FLANGED,6X25
$1.26¢631
1
#11056
11056-7706
BRACKET,RELAY
$5.60¢2 800
1
#11056A
11056-7717
BRACKET,ECU
$57.53¢28 763
1
#11056B
11056-7809
BRACKET,FUSE
$14.25¢7 125
1
#11056C
11056-7828
BRACKET,FRAME,Left Hand
$5.84¢2 919
1
#11056D
11056-7829
BRACKET,CROSS FRAME
$6.38¢3 188
1
#11056E
11056-7955
BRACKET,HARNESS
$8.47¢4 238
1
#11056F
11056-7959
BRACKET,CONNECTOR,Rear
$5.79¢2 894
1
#11057
11057-0017
BRACKET,HORN
$22.94¢11 469
1
#11057A
11057-0068
BRACKET,SHIFTERGEAR POSITION
$12.09¢6 044
1
#14093
14093-0476
COVER,RELAY
$38.81¢19 406
1
#23062
23062-0873
BRACKET COMP,CONNECTOR
$47.64¢23 819
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26006B
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26011
26011-0943
WIRE LEAD,BATTERY( )
$56.01¢28 006
1
#26011A
26011-1890
WIRE-LEAD,BATTERY(+)
$35.88¢17 938
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031
26031-2546
HARNESS,MAIN
$2204.71¢1 102 356
1
#26031A
26031-2547
HARNESS,MAIN
$2204.71¢1 102 356
1
#27002
27002-0027
RELAY-ASSY,HEAD LAMP
$48.50¢24 250
1
#27002A
27002-1086
RELAY Assembly
$42.02¢21 013
1
#27002B
27002-1097
RELAY Assembly,SIGNAL LAMP
$56.99¢28 494
1
#27003
27003-0113
HORN
$101.04¢50 519
1
#39156B
39156-1993
PAD,DIAG/DONGLE
$44.09¢22 044
1
#39156C
39156-2370
PAD,23X31X2
$1.38¢688
1
#39156A
39156-1886
PAD,DIAG. CONNECTOR
$2.10¢1 050
1
#39156
39156-0389
PAD,HEAT GUARD
$2.10¢1 050
1
#49018
49018-0005
DIODE
$53.66¢26 831
1
#49018A
49018-0007
DIODE
$56.89¢28 444
1
#53044
53044-0018
TRIM
$4.84¢2 419
1
#56030
56030-0955
LABEL,FUSE1
$4.59¢2 294
1
#56030A
56030-0957
LABEL,FUSE2
$4.11¢2 056
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92015A
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92072
92072-0782
BAND,202X3.6
$1.96¢981
1
#92072A
92072-1414
BAND
$3.70¢1 850
1
#92072B
92072-3768
BAND,L=148
$3.90¢1 950
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92154A
92154-0774
BOLT,SOCKET,6X10
$1.69¢844
1
#92154B
92154-1864
BOLT,FLANGED,6X14
$2.04¢1 019
1
#92171
92171-0068
CLAMP,CLIP,DIA=20
$2.68¢1 338
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.81¢1 906
1
#92171B
92171-1279
CLAMP
$10.46¢5 231
1
#92172
92172-0175
SCREW,TAPPING,5X16
$1.72¢862
1
#92172A
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92172B
92172-0335
SCREW,TAPPING,5X10
$2.04¢1 019
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173A
92173-0742
CLAMP
$9.11¢4 556
1
#92173B
92173-0791
CLAMP
$12.56¢6 281
1
#92173C
92173-0861
CLAMP
$2.75¢1 375
1
#92173D
92173-1009
CLAMP,68MM
$4.68¢2 338
1
#92173E
92173-1229
CLAMP,RUBBER PLATE
$4.16¢2 081
1
