CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

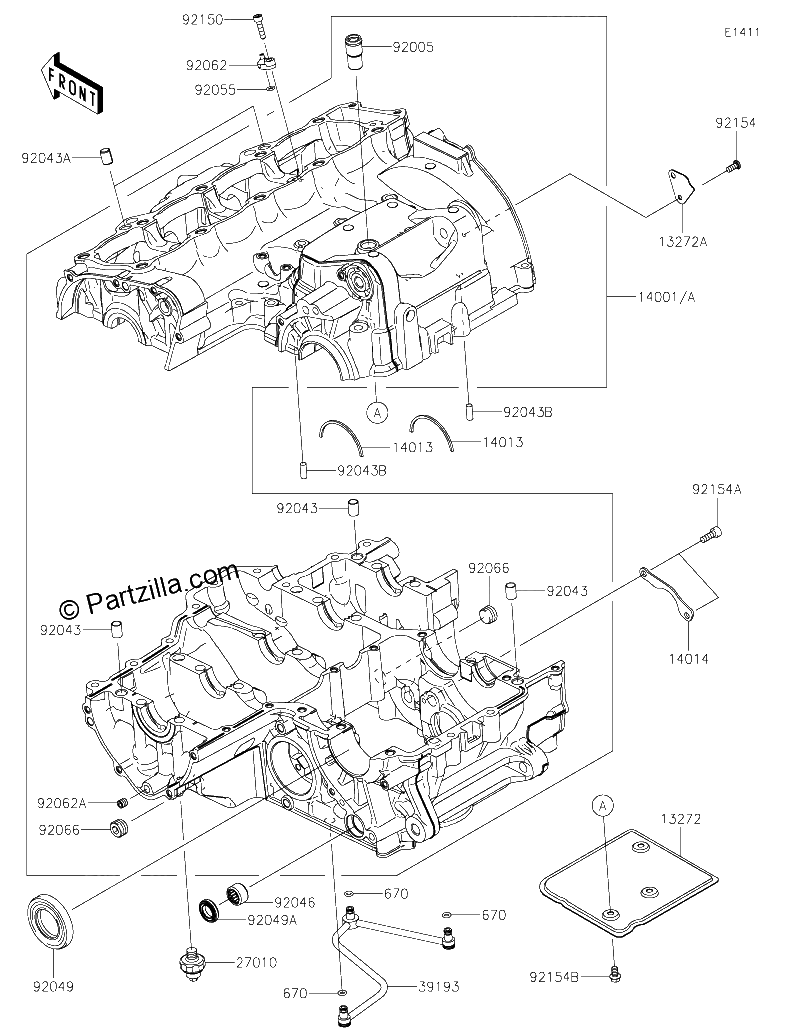

Diagrama de CRANKCASE

Repuestos

#670
670D1505
O RING
$4.29¢2 144
1
#13272
13272-0698
PLATE,BREATHER,Upper
$10.88¢5 438
1
#13272A
13272-0699
PLATE,BREATHER,SIDE
$4.21¢2 106
1
#14001A
14001-0712
SET-CRANKCASE
$2475.03¢1 237 513
1
#14013
14013-1051
RING POSITION
$3.95¢1 975
1
#14014
14014-0036
PLATE-POSITION
$6.08¢3 038
1
#27010
27010-1313
SWITCH,OIL PRESSURE
$45.69¢22 844
1
#39193
39193-0054
PIPE-OIL
$61.11¢30 556
1
#92005
92005-1238
FITTING,BREATHER
$12.70¢6 350
1
#92043B
92043-1690
PIN,6X16
$4.96¢2 481
1
#92043A
92043-1264
PIN,8.2X10X14
$0.66¢331
1
#92043
92043-1037
PIN,DOWEL,10X14
$0.85¢425
1
#92046
92046-0043
BEARING-NEEDLE,HK1412FM
$16.91¢8 456
1
#92049A
92049-1520
SEAL OIL,TC14245
$13.73¢6 863
1
#92049
92049-1474
SEAL OIL,TC32578
$18.11¢9 056
1
#92055
92055-1339
RING O,5.5X1.5
$4.50¢2 250
1
#92062A
92062-0046
NOZZLE
$5.40¢2 700
1
#92062
92062-0040
NOZZLE,OIL JET
$11.96¢5 981
1
#92066
92066-0836
PLUG
$5.06¢2 531
1
#92150
92150-1019
BOLT,SOCKET,5X20
$4.06¢2 031
1
#92154A
92154-0484
BOLT,SOCKET,6X16
$1.69¢844
1
#92154
92154-0299
BOLT,TORX,5X12
$2.03¢1 013
1
#92154B
92154-1887
BOLT,FLANGED,6X10
$2.58¢1 288
1
