DRIVE SHAFT FINAL GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

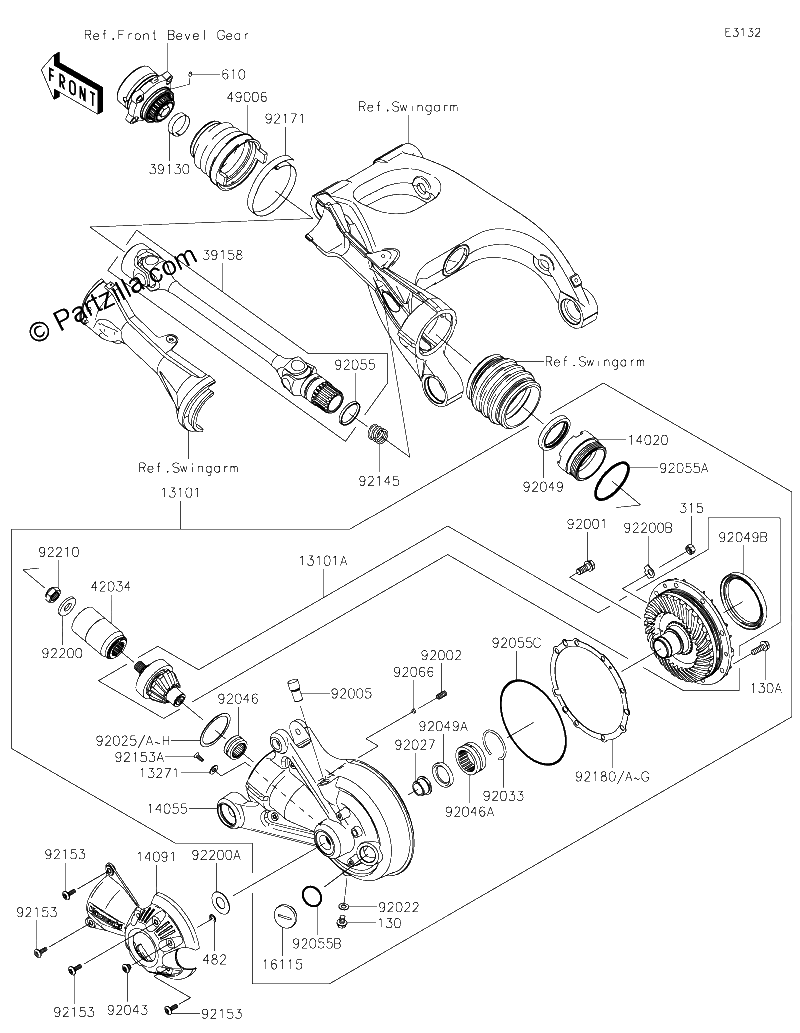

Diagrama de DRIVE SHAFT FINAL GEAR

Repuestos

#130
130BB0812
BOLT-FLANGED,8X12
$0.75¢374
1
#130A
130BD0825
BOLT FLANGED,8X25
$3.78¢1 892
1
#315
315BA1000
NUT HEX FINE,10MM
$1.49¢747
1
#482
482EA7000
CIRCLIP-TYPE-E
$3.59¢1 794
1
#610
610A0406
ROLLER,4X6
$3.94¢1 972
1
#13101
13101-0124-458
GEAR Assembly,P SILVER
$2349.17¢1 174 587
1
#13101A
13101-5095
GEAR Assembly
$1390.33¢695 164
1
#13271
13271-0930
PLATE
$3.78¢1 892
1
#14020
14020-0010
RETAINER
$93.02¢46 512
1
#14055
14055-0034-458
CASE GEAR,P SILVER
$1763.51¢881 757
1
#14091
14091-0908
COVER,DRIVE SHAFT
$92.18¢46 092
1
#16115
16115-1070
CAP-OIL FILLER
$27.23¢13 616
1
#39130
39130-1002
SPRING-LEAF
$4.45¢2 225
1
#39158
39158-0004
SHAFT-ASSY-DRIVE
$981.11¢490 555
1
#42034
42034-0039
COUPLING
$158.01¢79 005
1
#49006
49006-0071
BOOT
$41.87¢20 936
1
#92001
92001-1778
BOLT,10X23
$5.59¢2 794
1
#92002
92002-1836
SCREW-SET-SOCKET,8X18
$4.48¢2 242
1
#92005
92005-0094
FITTING
$51.29¢25 645
1
#92022
92022-1086
WASHER,8.2X16X1
$3.28¢1 639
1
#92025
92025-1733
SHIM,T=0.10
$18.42¢9 212
1
#92025D
92025-1737
SHIM,T=0.70
$9.89¢4 945
1
#92025A
92025-1734
SHIM,T=0.15
$14.79¢7 394
1
#92025B
92025-1735
SHIM,T=0.50
$9.89¢4 945
1
#92025C
92025-1736
SHIM,T=0.60
$9.17¢4 583
1
#92025E
92025-1738
SHIM,T=0.80
$9.17¢4 583
1
#92025F
92025-1739
SHIM,T=0.90
$9.17¢4 583
1
#92025G
92025-1740
SHIM,T=1.00
$9.17¢4 583
1
#92025H
92025-1741
SHIM,T=1.20
$9.17¢4 583
1
#92027
92027-1557
COLLAR
$10.70¢5 348
1
#92033
92033-1074
RING-SNAP,52MM
$4.45¢2 225
1
#92043
92043-0127
PIN
$5.32¢2 662
1
#92046
92046-1168
BEARING NEEDLE,RNA4904ARD
$53.05¢26 525
1
#92046A
92046-1169
BEARING NEEDLE,38NQ5020WD
$64.11¢32 056
1
#92049A
92049-1025
SEAL OIL,S 35477HS
$13.56¢6 779
1
#92049B
92049-1280
SEAL-OIL,MHSA83X100X9XRT
$34.06¢17 031
1
#92049
92049-0085
SEAL OIL,HTC 50 65 9
$13.95¢6 975
1
#92055B
92055-049
RING-O,31.5X2.6
$3.94¢1 972
1
#92055C
92055-3771
RING-O,OUTSIDE
$13.95¢6 975
1
#92055A
92055-0134
RING O,67.6X3.5
$5.32¢2 662
1
#92055
92055-0115
RING O
$42.15¢21 074
1
#92066
92066-1272
PLUG,6.2X3
$2.77¢1 386
1
#92145
92145-0549
SPRING,25.8X4.0X86.2
$17.00¢8 498
1
#92153A
92153-1787
BOLT,TORX,5X15
$1.95¢977
1
#92153
92153-0816
BOLT,6X18
$1.87¢937
1
#92171
92171-1715
CLAMP
$13.33¢6 664
1
#92180B
92180-0265
SHIM,T=0.60
$16.16¢8 079
1
#92180A
92180-0264
SHIM,T=0.50
$16.16¢8 079
1
#92180D
92180-0267
SHIM,T=0.80
$16.16¢8 079
1
#92180C
92180-0266
SHIM,T=0.70
$16.16¢8 079
1
#92180E
92180-0268
SHIM,T=0.90
$16.16¢8 079
1
#92180F
92180-0269
SHIM,T=1.00
$16.16¢8 079
1
#92180G
92180-0270
SHIM,T=1.20
$16.16¢8 079
1
#92180
92180-0263
SHIM,T=0.15
$16.16¢8 079
1
#92200A
92200-0321
WASHER,20.5X40X1.2
$3.78¢1 892
1
#92200B
92200-1003
WASHER
$2.30¢1 150
1
#92200
92200-0320
WASHER,16X36X4
$7.93¢3 968
1
#92210
92210-0354
NUT,16MM
$17.16¢8 579
1
