SHROUD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

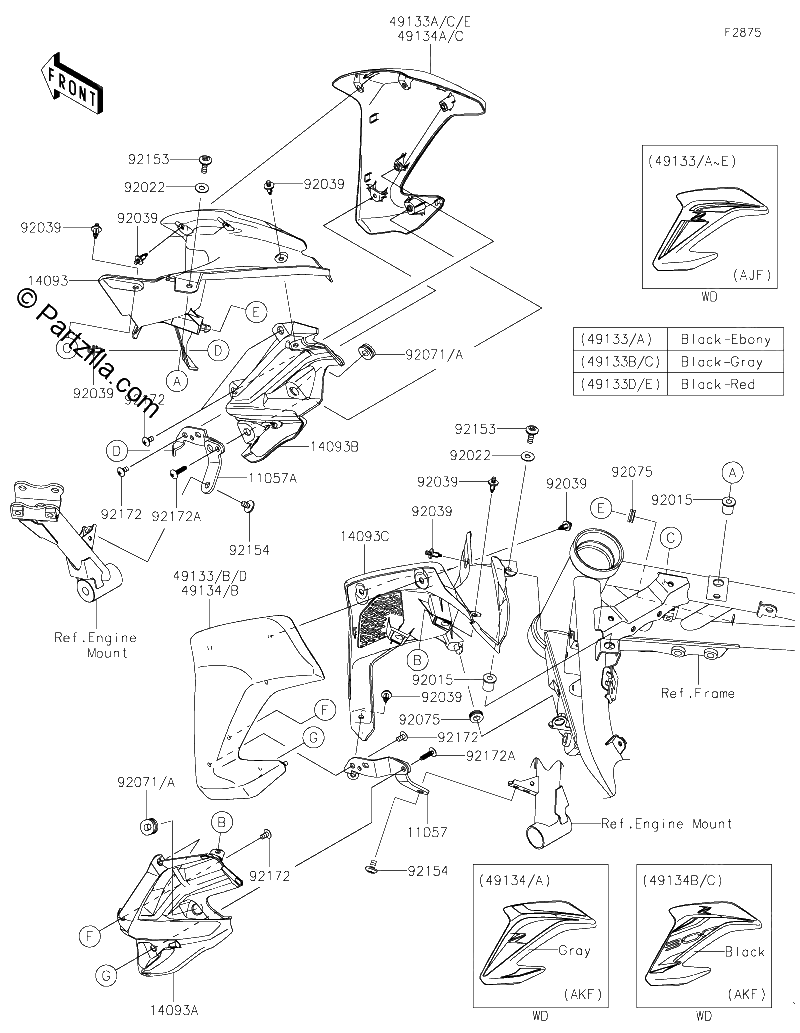

Diagrama de SHROUD

Repuestos

#11057
11057-0254
BRACKET,SHROUD,LH
$20.51¢10 256
1
#11057A
11057-0255
BRACKET,SHROUD,RH
$20.51¢10 256
1
#14093C
14093-0638
COVER,INNER,LH,FR
$43.48¢21 738
1
#14093B
14093-0508
COVER,INNER,RH,RR
$23.08¢11 538
1
#14093A
14093-0507
COVER,INNER,LH,RR
$23.08¢11 538
1
#14093
14093-0506
COVER,INNER,RH,FR
$43.48¢21 738
1
#49134C
49134-5013-739
SHROUD,RH,M.F.S.BLACK
$305.19¢152 594
1
#49134B
49134-5012-739
SHROUD,LH,M.F.S.BLACK
$342.19¢171 094
1
#49134A
49134-5011-25X
SHROUD,RH,M.M.GRAY
$317.77¢158 888
1
#49134
49134-5010-25X
SHROUD,LH,M.M.GRAY
$317.77¢158 888
1
#92015
92015-1700
NUT
$8.53¢4 263
1
#92022
92022-1654
WASHER,6.5X16X1.0
$3.60¢1 800
1
#92039
92039-0068
RIVET
$2.73¢1 363
1
#92071A
92071-0777
GROMMET,EMBOSSED 0777
$1.42¢712
1
#92075
92075-161
DAMPER
$4.65¢2 325
1
#92153
92153-0816
BOLT,6X18
$2.04¢1 019
1
#92154
92154-2667
BOLT,SOCKET,6X10
$1.24¢619
1
#92172
92172-0864
SCREW,5X10
$1.35¢675
1
#92172A
92172-1159
SCREW,TAPPING,5X20
$1.42¢712
1
