GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

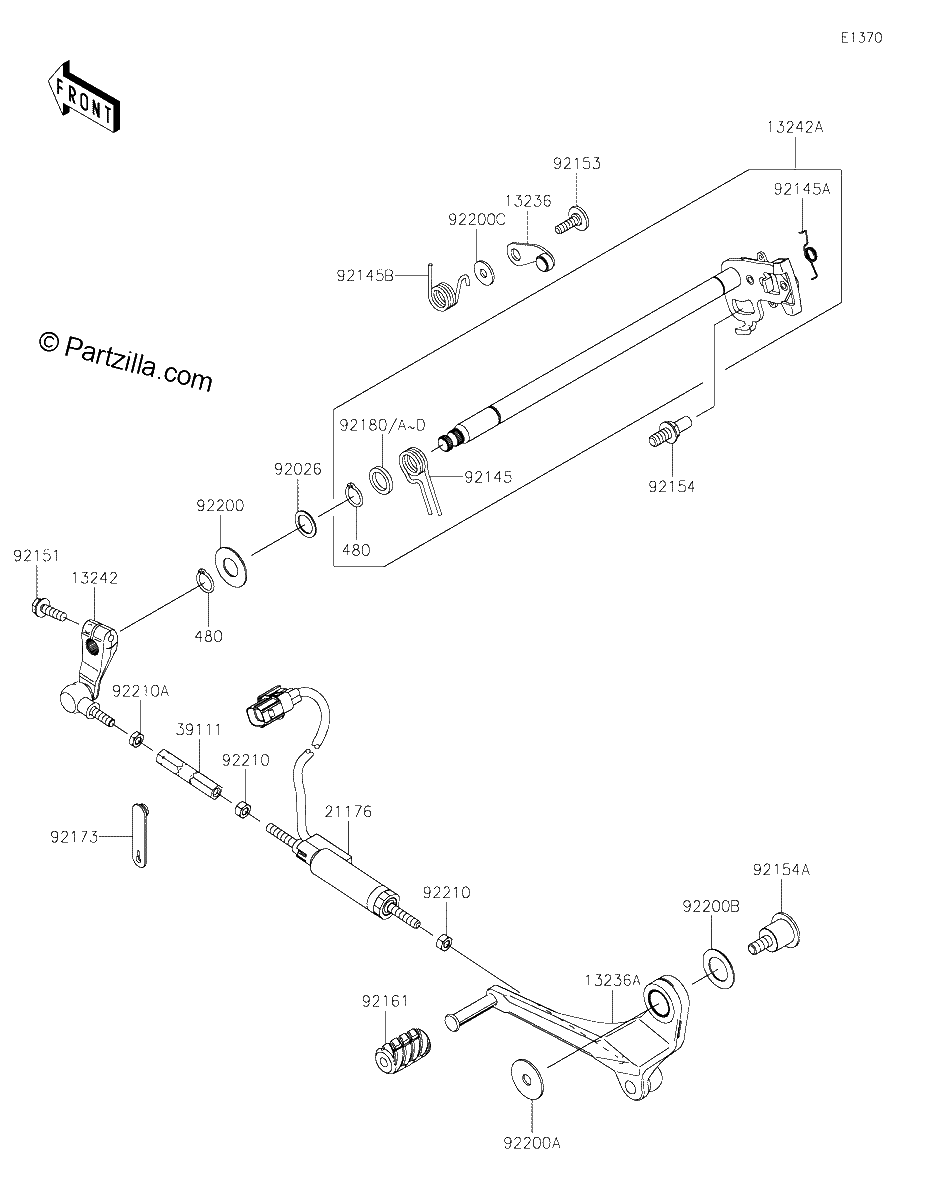

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.96¢2 481
1
#13236
13236-0785
LEVER-COMP,POSITION
$24.42¢12 212
1
#13236A
13236-0799
LEVER-COMP,CHANGE,PEDAL
$280.96¢140 481
1
#13242A
13242-0170
LEVER-ASSY-CHANGE
$149.31¢74 656
1
#13242
13242-0150
LEVER-ASSY-CHANGE
$94.36¢47 181
1
#21176
21176-0865
SENSOR,QUICK SHIFTER
$288.68¢144 338
1
#39111
39111-0356
ROD-TIE
$36.86¢18 431
1
#92026
92026-1534
SPACER,14X20X1.0
$4.50¢2 250
1
#92145B
92145-1664
SPRING,POSITION LEVER
$12.80¢6 400
1
#92145A
92145-1663
SPRING
$11.99¢5 994
1
#92145
92145-0415
SPRING,RETURN
$13.25¢6 625
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.29¢1 144
1
#92153
92153-1505
BOLT,6X20
$8.91¢4 456
1
#92154A
92154-2822
BOLT
$49.11¢24 556
1
#92154
92154-1838
BOLT,RETURN SPRING
$10.31¢5 156
1
#92161
92161-1769
DAMPER
$12.91¢6 456
1
#92173
92173-2198
CLAMP
$1.55¢775
1
#92180
92180-0967
SHIM,T=3.4
$35.10¢17 550
1
#92180
92180-0966
SHIM,T=3.2
$35.10¢17 550
1
#92180
92180-0965
SHIM,T=3.0
$35.10¢17 550
1
#92180
92180-0964
SHIM,T=2.8
$35.10¢17 550
1
#92180
92180-0963
SHIM,T=2.6
$35.10¢17 550
1
#92200C
92200-0996
WASHER,6.5X18X1.6
$9.25¢4 625
1
#92200B
92200-0812
WASHER,18.3X30X1
$4.30¢2 150
1
#92200A
92200-0810
WASHER,8.2X30X1.5
$4.38¢2 188
1
#92200
92200-0265
WASHER
$2.41¢1 206
1
#92210
92210-1100
NUT,6MM
$2.19¢1 094
1
#92210A
92210-1101
NUT,LEFT HANDED,6MM
$1.56¢781
1
