COWLING UPPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

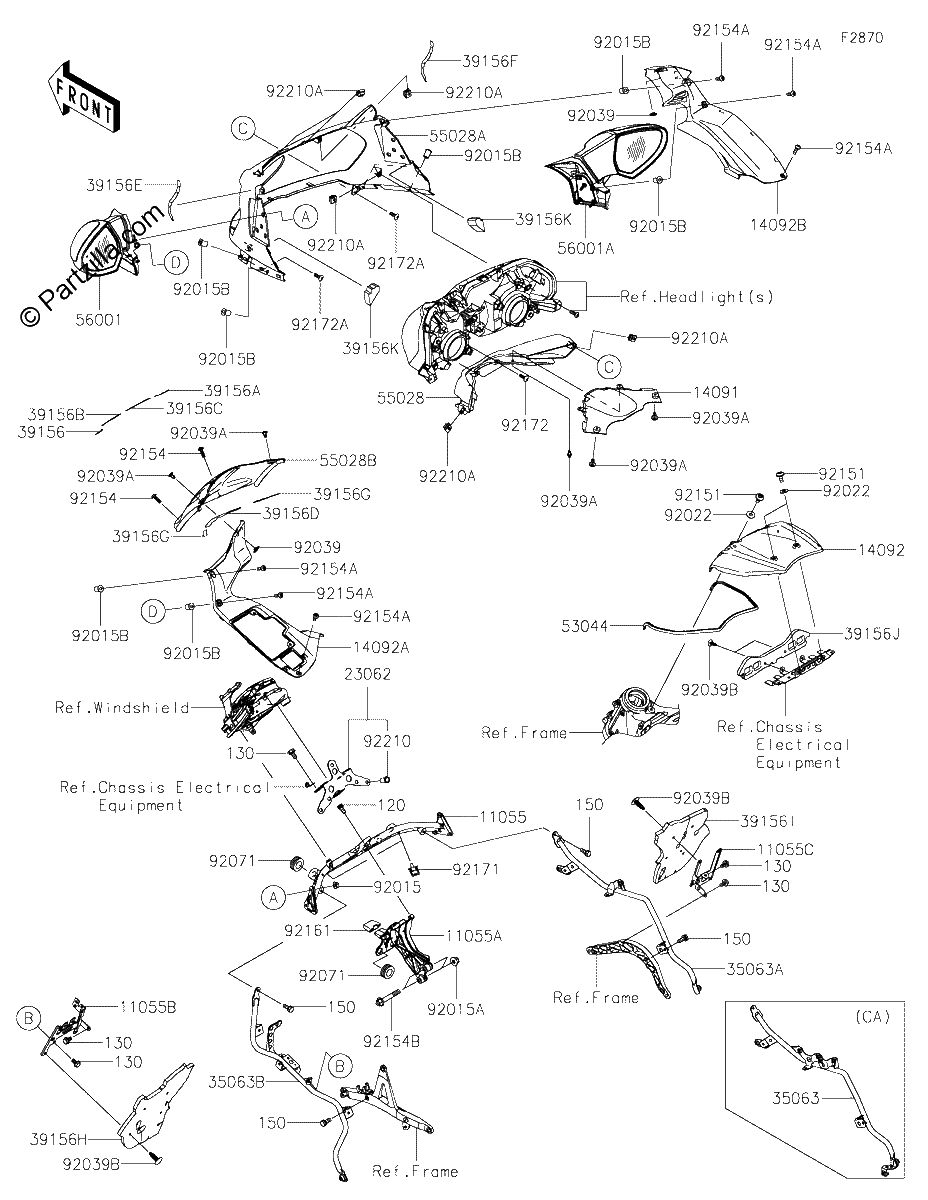

Diagrama de COWLING UPPER

Repuestos

#120
120CA0612
BOLT-SOCKET,6X12
$1.66¢831
1
#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#150
150R0616
BOLT WS,6X16
$3.75¢1 875
1
#11055
11055-0143
BRACKET,MIRROR
$218.23¢109 113
1
#11055A
11055-1804
BRACKET,COWLING
$214.66¢107 331
1
#11055B
11055-1835
BRACKET,PAD,LH
$15.08¢7 538
1
#11055C
11055-1836
BRACKET,PAD,Right Hand
$11.86¢5 931
1
#14091
14091-0859
COVER,SHROUD,CNT
$45.74¢22 869
1
#14092
14092-0112
COVER,FUEL TANK
$162.07¢81 038
1
#14092A
14092-0113
COVER,INNER,LH
$102.61¢51 306
1
#14092B
14092-0114
COVER,INNER,Right Hand
$102.61¢51 306
1
#23062
23062-0036
BRACKET-COMP,METER
$221.64¢110 819
1
#35063
35063-0663
STAY,COWLING,Right Hand
$314.45¢157 225
1
#35063A
35063-0675
STAY,COWLING,RH | [CN,US]
$314.45¢157 225
1
#35063B
35063-0685
STAY,COWLING,Left Hand
$314.45¢157 225
1
#39156K
39156-2155
PAD
$15.79¢7 894
1
#39156J
39156-0590
PAD,CNT
$8.54¢4 269
1
#39156I
39156-0589
PAD,RH
$28.75¢14 375
1
#39156
39156-0378
PAD,UPP COWLING,CNT,LH
$6.79¢3 394
1
#39156A
39156-0379
PAD,Upper COWLING,CNT,Right Hand
$6.79¢3 394
1
#39156B
39156-0380
PAD,UPP COWLING,CNT,LH
$8.45¢4 225
1
#39156C
39156-0381
PAD,UPP COWLING,CNT,RH
$8.45¢4 225
1
#39156D
39156-0382
PAD,UPP COWLING,CNT
$21.89¢10 944
1
#39156E
39156-0384
PAD,Upper COWLING,Left Hand
$26.76¢13 381
1
#39156F
39156-0385
PAD,UPP COWLING,RH
$8.45¢4 225
1
#39156G
39156-0398
PAD,UPP COWLING,CNT
$2.48¢1 238
1
#39156H
39156-0588
PAD,Left Hand
$28.75¢14 375
1
#53044
53044-0054
TRIM
$52.30¢26 150
1
#55028
55028-0192
COWLING,INTAKE
$70.77¢35 387
1
#55028A
55028-0198-660
COWLING,Upper,M S BLACK
$576.79¢288 394
1
#55028B
55028-0306
COWLING,CNT
$110.10¢55 050
1
#56001
56001-0182-660
MIRROR Assembly,Left Hand,M S BLACK
$283.11¢141 556
1
#56001A
56001-0183-660
MIRROR Assembly,Right Hand,M S BLACK
$283.11¢141 556
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92015A
92015-1432
NUT,8MM
$6.42¢3 213
1
#92015B
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022
92022-1143
WASHER,6.5X16X1
$3.90¢1 950
1
#92039A
92039-0051
RIVET
$4.61¢2 306
1
#92039
92039-0048
RIVET
$4.84¢2 419
1
#92039B
92039-0090
RIVET
$3.50¢1 750
1
#92071
92071-1131
GROMMET
$7.72¢3 863
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.63¢813
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.36¢1 181
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154B
92154-1348
BOLT,FLANGED,8X53
$4.11¢2 056
1
#92161
92161-0412
DAMPER,HEAD LAMP
$9.90¢4 950
1
#92171
92171-1665
CLAMP
$2.82¢1 412
1
#92172
92172-0265
SCREW,TAPPING,5X14
$1.35¢675
1
#92172A
92172-0322
SCREW,5X16
$2.04¢1 019
1
#92210
92210-0324
NUT,POP,6MM,L=16.5
$5.47¢2 738
1
#92210A
92210-0571
NUT
$3.50¢1 750
1
