FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

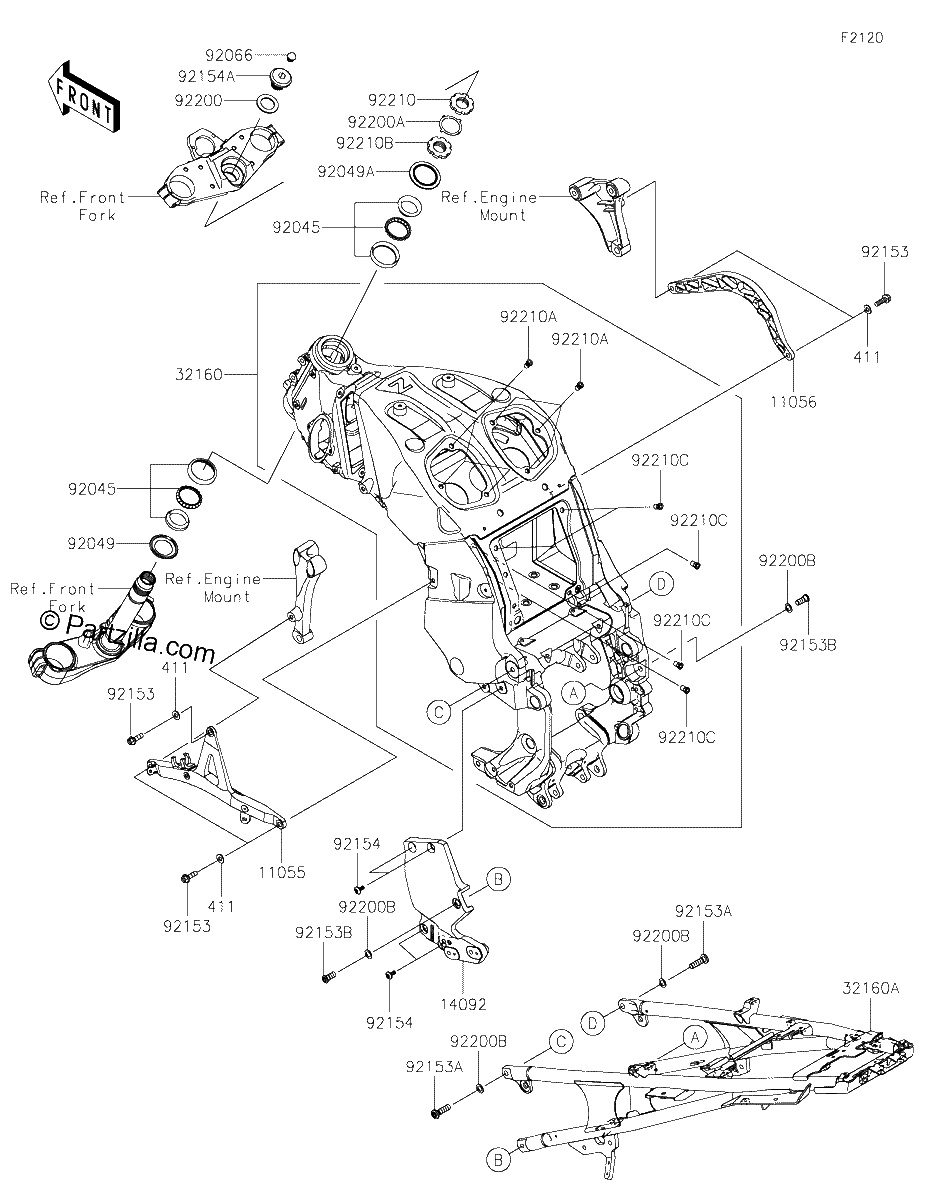

Diagrama de FRAME

Repuestos

#411
411AA0800
WASHER PLAIN,8MM
$0.97¢483
1
#11055
11055-1755
BRACKET,SUB FRAME,Left Hand
$132.74¢66 372
1
#11056
11056-0038
BRACKET,SUB FRAME,Right Hand
$143.26¢71 628
1
#14092
14092-0089-18R
COVER,FRONT FRAME SHAFT,BLACK
$232.22¢116 110
1
#32160A
32160-0775
FRAME COMP,Rear
$1177.24¢588 622
1
#32160
32160-0767
FRAME COMP,Front
$3793.06¢1 896 528
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049A
92049-0742
SEAL-OIL,43X55.5X8.6
$18.07¢9 033
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92066
92066-0071
PLUG
$2.77¢1 386
1
#92153B
92153-1905
BOLT,SOCKET,10X22
$4.67¢2 335
1
#92153A
92153-1904
BOLT,SOCKET,10X35
$5.32¢2 662
1
#92153
92153-1768
BOLT,FLANGED,8X25
$3.78¢1 892
1
#92154A
92154-3818
BOLT,26MM
$31.80¢15 899
1
#92154
92154-1711
BOLT,SOCKET8X20
$1.81¢903
1
#92200B
92200-0324
WASHER,11X18X1
$8.20¢4 100
1
#92200A
92200-0281
WASHER
$3.58¢1 788
1
#92200
92200-0081
WASHER,27X42X2.3
$3.40¢1 702
1
#92210B
92210-0823
NUT,35MM
$24.59¢12 293
1
#92210A
92210-0324
NUT,POP,6MM,L=16.5
$5.04¢2 519
1
#92210
92210-0095
NUT,35MM
$16.50¢8 251
1
#92210C
92210-1397
NUT,POP,6MM,L=15
$5.19¢2 593
1
