COWLING JMANN JMANL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

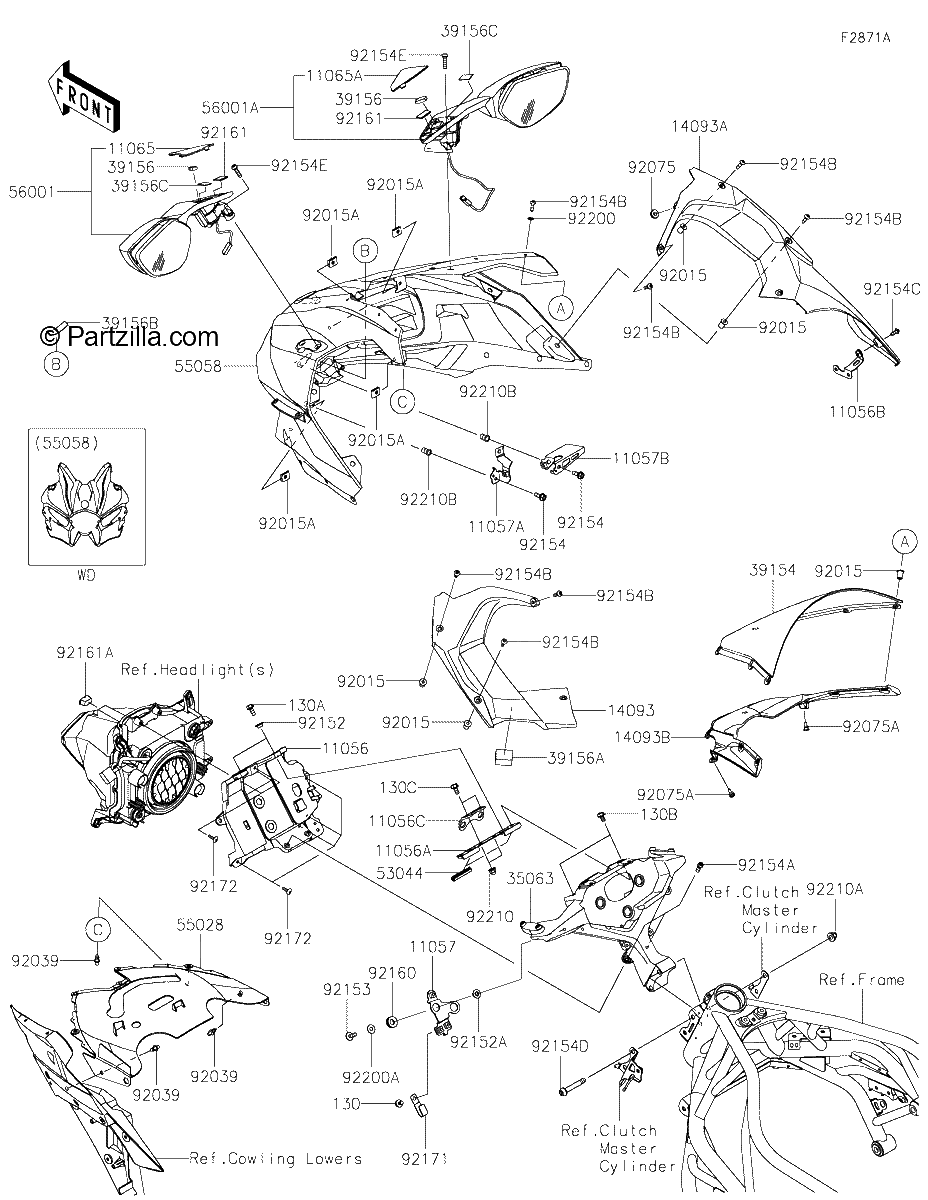

Diagrama de COWLING JMANN JMANL

Repuestos

#130
130BA0608
BOLT-FLANGED,6X8
$0.75¢374
1
#130A
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#130B
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.12¢1 058
1
#130C
130R0612
BOLT FLANGED,6X12
$1.18¢592
1
#11056
11056-4497
BRACKET,HEAD LAMP
$74.51¢37 254
1
#11056A
11056-7076
BRACKET,METER STAY
$12.65¢6 325
1
#11056B
11056-7098
BRACKET,INNER COVER
$8.29¢4 146
1
#11056C
11056-7534
BRACKET,V.D. SENSOR
$11.88¢5 940
1
#11057
11057-0447
BRACKET,GYRO SENSOR
$16.47¢8 234
1
#11057A
11057-0765
BRACKET
$13.95¢6 975
1
#11057B
11057-0777
BRACKET,HEAD LAMP HARNESS
$12.94¢6 469
1
#11065
11065-0922
CAP,Upper,Left Hand
$7.98¢3 991
1
#11065A
11065-0923
CAP,Upper,Right Hand
$7.98¢3 991
1
#14093
14093-0182
COVER,INNER,LH
$32.95¢16 474
1
#14093A
14093-0183
COVER,INNER,RH
$41.52¢20 758
1
#14093B
14093-0783
COVER,METER VISOR
$57.16¢28 578
1
#35063
35063-1459-46R
STAY,UPP COWL.,M.F.S.BLACK
$572.41¢286 206
1
#39154
39154-0341
WINDSHIELD
$205.62¢102 810
1
#39156
39156-1809
PAD,12X10X8
$1.71¢857
1
#39156C
39156-2119
PAD,15X25X1
$1.71¢857
1
#39156B
39156-1924
PAD,10X50X2
$2.17¢1 087
1
#39156A
39156-1900
PAD,20X30X24
$1.93¢966
1
#53044
53044-0580
TRIM
$4.88¢2 438
1
#55028
55028-0539
COWLING,Upper,Lower
$31.65¢15 824
1
#55058
55058-5351-53F
COWLING,Upper,CARBON
$8001.38¢4 000 689
1
#56001A
56001-0331-739
MIRROR-ASSY,RH,M.F.S.BLACK
$468.36¢234 180
1
#56001
56001-0330-739
MIRROR-ASSY,LH,M.F.S.BLACK
$457.18¢228 591
1
#92015A
92015-1996
NUT,5MM
$8.07¢4 036
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039
92039-0060
RIVET
$2.81¢1 403
1
#92075A
92075-1808
DAMPER,6X10X15
$1.28¢638
1
#92075
92075-1011
DAMPER,6X16X7
$6.72¢3 358
1
#92152A
92152-2336
COLLAR,6.5X16X7.3
$13.18¢6 590
1
#92152
92152-0445
COLLAR,6.5X10X5.6
$4.48¢2 242
1
#92153
92153-0816
BOLT,6X18
$1.87¢937
1
#92154A
92154-1455
BOLT,SOCKET,6X18
$1.43¢713
1
#92154B
92154-1560
BOLT,SOCKET,5X16
$2.12¢1 058
1
#92154C
92154-1561
BOLT,SOCKET,5X12
$2.21¢1 104
1
#92154D
92154-1710
BOLT,SOCKET,8X52
$10.86¢5 428
1
#92154E
92154-1724
BOLT,SOCKET,6X22
$2.12¢1 058
1
#92154
92154-0899
BOLT,FLANGED,6X16
$1.99¢995
1
#92160
92160-1278
DAMPER
$4.01¢2 007
1
#92161A
92161-1734
DAMPER,HEAD LAMP
$5.63¢2 818
1
#92161
92161-1696
DAMPER,16X23X2
$1.00¢500
1
#92171
92171-0305
CLAMP
$7.67¢3 835
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.00¢500
1
#92200A
92200-3712
WASHER,6.5X16X1.0
$3.40¢1 702
1
#92200
92200-1820
WASHER,5.2X10X1.0
$0.71¢357
1
#92210A
92210-1132
NUT,CAP,8MM
$3.83¢1 915
1
#92210
92210-0003
NUT,CAP,6MM
$0.71¢357
1
#92210B
92210-1397
NUT,POP,6MM,L=15
$5.19¢2 593
1
