FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

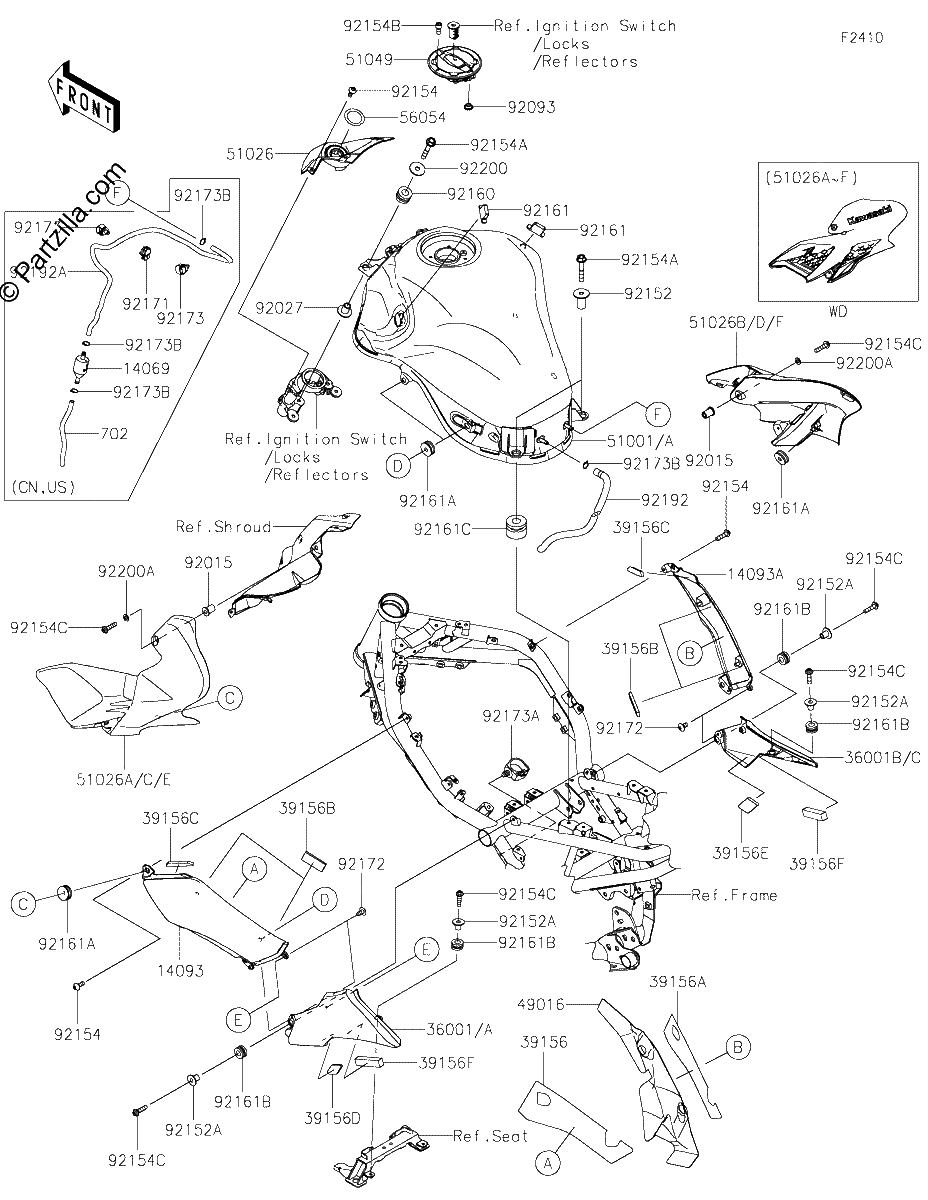

Diagrama de FUEL TANK

Repuestos

#702
702A06300
TUBE RUBBER,6X9X300
$4.98¢2 490
1
#14069
14069-0008
BREATHER,TANK
$6.18¢3 088
1
#14093
14093-0667
COVER,KNEE GRIP,LH
$24.24¢12 121
1
#14093A
14093-0668
COVER,KNEE GRIP,RH
$24.24¢12 121
1
#36001
36001-0685-739
COVER SIDE,SEAT,Left Hand,M F S BLACK
$20.90¢10 448
1
#36001
36001-0685-660
COVER-SIDE,SEAT,LH,M.S.BLACK
$22.65¢11 327
1
#36001B
36001-0686-660
COVER SIDE,SEAT,Right Hand,M S BLACK
$22.65¢11 327
1
#36001B
36001-0686-739
COVER SIDE,SEAT,Right Hand,M F S BLACK
$20.90¢10 448
1
#39156
39156-2147
PAD,KNEE GRIP COVER,LH
$8.02¢4 008
1
#39156C
39156-2192
PAD,10X76X5
$1.39¢696
1
#39156A
39156-2148
PAD,KNEE GRIP COVER,RH
$8.02¢4 008
1
#39156B
39156-2191
PAD,20X50X5
$1.26¢633
1
#39156D
39156-2194
PAD,20X20X5
$1.26¢633
1
#39156E
39156-2195
PAD,25X50X5
$2.55¢1 277
1
#39156F
39156-2215
PAD,15X66X10
$1.92¢960
1
#49016
49016-0683
COVER-SEAL
$21.92¢10 959
1
#51001
51001-0895-739
TANK-COMP-FUEL,M.F.S.BLACK
$1421.09¢710 545
1
#51001
51001-0895-54X
TANK-COMP-FUEL,P.B.WHITE
$1421.09¢710 545
1
#51026
51026-0013
COVER TANK,CNT
$18.29¢9 143
1
#51026B
51026-5148-739
COVER TANK,Right Hand,M F S BLACK
No Disponible
1
#51026A
51026-5147-739
COVER TANK,Left Hand,M F S BLACK
No Disponible
1
#51026B
51026-5132-660
COVER TANK,Right Hand,M S BLACK
$505.68¢252 839
1
#51026A
51026-5129-739
COVER TANK,LH,M.F.S.BLACK
$505.68¢252 839
1
#51026B
51026-5130-739
COVER TANK,RH,M.F.S.BLACK
$505.68¢252 839
1
#51026A
51026-5131-660
COVER TANK,LH,M.S.BLACK
$505.68¢252 839
1
#51049
51049-0735
CAP-TANK
$160.05¢80 023
1
#56054
56054-2583
MARK,IG. SWITCH
$17.05¢8 527
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92027
92027-1183
COLLAR,6.5X10X14.1
$5.01¢2 507
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152A
92152-2342
COLLAR,5.6X8X11.2
$2.37¢1 185
1
#92152
92152-2252
COLLAR,6.3X12X22.6
$2.98¢1 489
1
#92154B
92154-4291
BOLT SOCKET,5X12
$1.48¢742
1
#92154A
92154-4290
BOLT-FLANGED,6X35
$1.00¢500
1
#92154C
92154-4301
BOLT,SOCKET,5X20
$1.84¢920
1
#92154
92154-4289
BOLT,SOCKET,5X12
$0.97¢483
1
#92160
92160-1167
DAMPER,10X20X12
$4.28¢2 139
1
#92161A
92161-0588
DAMPER
$3.61¢1 805
1
#92161B
92161-0685
DAMPER,8X16X8.6
$5.95¢2 973
1
#92161C
92161-1468
DAMPER,12X28X21
$4.23¢2 116
1
#92161
92161-0365
DAMPER
$4.84¢2 421
1
#92171
92171-1722
CLAMP,EDGE CLIP
$8.51¢4 255
1
#92172
92172-0864
SCREW,5X10
$1.24¢621
1
#92173A
92173-0861
CLAMP
$2.53¢1 265
1
#92173B
92173-2442
CLAMP,TUBE
$0.57¢288
1
#92173
92173-0736
CLAMP,12MM DIA.
$4.61¢2 306
1
#92192A
92192-1734
TUBE,6X9X670/30,BLUE
$13.82¢6 911
1
#92192
92192-1688
TUBE,6X9X670/30
$13.56¢6 779
1
#92200
92200-1087
WASHER,6.5X22X1.6
$3.61¢1 805
1
#92200A
92200-2286
WASHER,5.2X10X1
$0.51¢253
1
