MUFFLER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

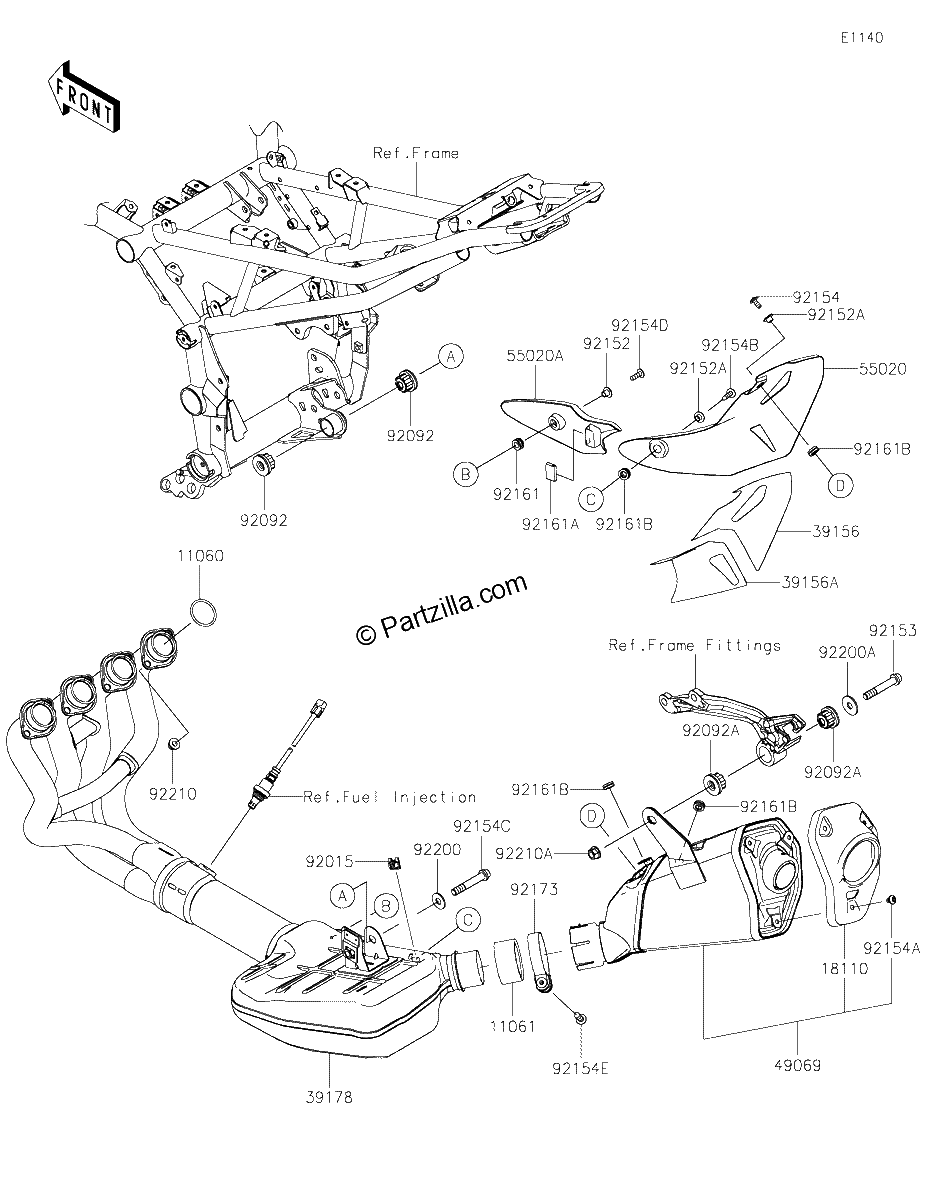

Diagrama de MUFFLER S

Repuestos

#11060
11060-1103
GASKET,EXHAUST PIPE HOLDER
$7.21¢3 605
1
#11061
11061-0447
GASKET,50.8X62X30
$24.76¢12 380
1
#18110
18110-0196
BODY END-MUFFLER
$157.76¢78 879
1
#39156
39156-2130
PAD,MUFFLER GUARD
$14.80¢7 400
1
#39156A
39156-2131
PAD,MUFFLER GUARD
$11.79¢5 894
1
#39178
39178-0302
MANIFOLD-COMP-EXHAUST
$1903.73¢951 867
1
#49069
49069-0823
MUFFLER-ASSY
$1260.15¢630 074
1
#55020
55020-1966
GUARD,MUFFLER,RR
$268.06¢134 033
1
#55020A
55020-1967
GUARD,MUFFLER,FR
$58.47¢29 233
1
#92015
92015-1487
NUT
$4.36¢2 179
1
#92092
92092-1081
BUSHING RUBBER
$24.13¢12 064
1
#92092A
92092-1087
BUSHING RUBBER,MUFFLER
$19.22¢9 608
1
#92152
92152-0237
COLLAR,6.3X8.3X9.2
$5.12¢2 559
1
#92152A
92152-1602
COLLAR,6.3X8.3X7.2
$3.40¢1 702
1
#92153
92153-1837
BOLT,SOCKET,10X60
$12.39¢6 193
1
#92154C
92154-1281
BOLT,SOCKET
$9.57¢4 784
1
#92154E
92154-2738
BOLT-FLANGED-SMALL,8X40
$3.52¢1 759
1
#92154D
92154-2340
BOLT,SOCKET,6X18
$1.87¢937
1
#92154B
92154-1192
BOLT,SOCKET,6X27
$2.08¢1 041
1
#92154A
92154-0987
BOLT,HEX HEAD,6X8
$1.99¢995
1
#92154
92154-0856
BOLT,SOCKET,6X14
$1.71¢857
1
#92161B
92161-1475
DAMPER
$4.84¢2 421
1
#92161A
92161-1228
DAMPER
$8.08¢4 042
1
#92161
92161-0204
DAMPER
$4.28¢2 139
1
#92173
92173-0284
CLAMP,64.5MM
$36.40¢18 199
1
#92200A
92200-1849
WASHER,10.5X30X2.3
$1.79¢897
1
#92200
92200-1377
WASHER,10.5X25X2.0
$3.83¢1 915
1
#92210
92210-0076
NUT,8MM
$4.98¢2 490
1
#92210A
92210-1139
NUT,LOCK,FLANGED,10MM
$3.47¢1 737
1
