COWLING LOWERS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

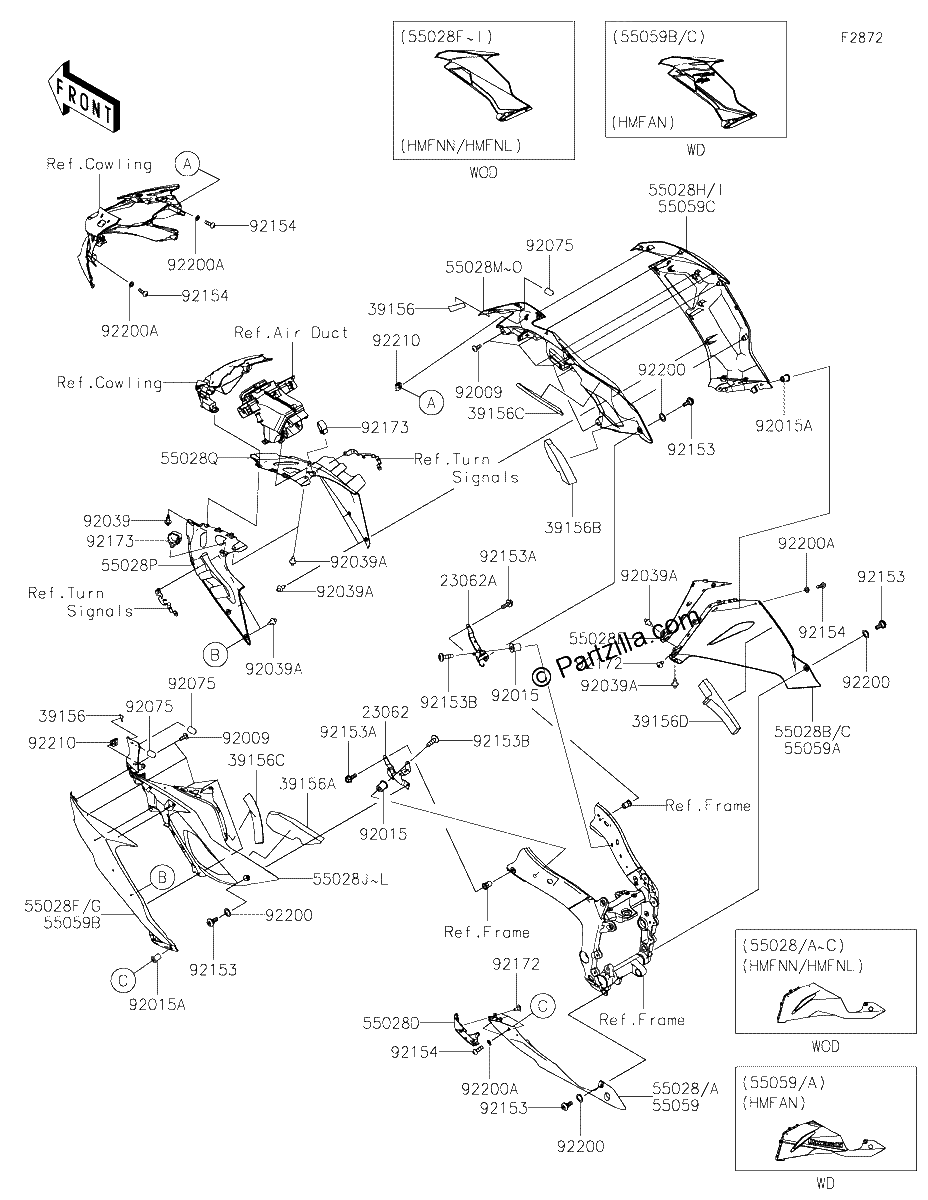

Diagrama de COWLING LOWERS

Repuestos

#23062
23062-1159
BRACKET COMP,SIDE COWLING,Left Hand
$21.43¢10 713
1
#23062A
23062-1160
BRACKET COMP,SIDE COWLING,Right Hand
$37.00¢18 500
1
#39156
39156-0980
PAD,10X30X0.2
$1.24¢619
1
#39156A
39156-2412
PAD,SIDE COWLING,Rear,Left Hand
$11.04¢5 519
1
#39156B
39156-2413
PAD,SIDE COWLING,RR,RH
$11.04¢5 519
1
#39156C
39156-2414
PAD,220X30X10
$2.66¢1 331
1
#39156D
39156-2425
PAD,LWR COWLING,RH
$33.03¢16 513
1
#55028P
55028-0677
COWLING,FR,LH
$81.13¢40 563
1
#55028Q
55028-0678
COWLING,Front,Right Hand
$81.13¢40 563
1
#55028M
55028-0672-H8
COWLING,SIDE,Right Hand,Rear,EBONY
$370.80¢185 400
1
#55028B
55028-0451-660
COWLING,Lower,Right Hand,M S BLACK
$301.45¢150 725
1
#55028
55028-0450-36S
COWLING,LWR,LH,P.S.GRAY
$298.44¢149 219
1
#55028
55028-0450-660
COWLING,Lower,Left Hand,M S BLACK
$268.88¢134 438
1
#55028B
55028-0451-36S
COWLING,LWR,RH,P.S.GRAY
$301.45¢150 725
1
#55028D
55028-0452
COWLING,Lower,Front,Left Hand
$19.25¢9 625
1
#55028M
55028-0672-68D
COWLING,SIDE,RH,RR,P.N.TEAL
$387.79¢193 894
1
#55028E
55028-0453
COWLING,LWR,FR,RH
$19.25¢9 625
1
#55028F
55028-0669-36S
COWLING,SIDE,LH,FR,P.S.GRAY
$365.69¢182 844
1
#55028F
55028-0669-660
COWLING,SIDE,LH,FR,M.S.BLACK
$365.69¢182 844
1
#55028H
55028-0670-36S
COWLING,SIDE,RH,FR,P.S.GRAY
$398.81¢199 406
1
#55028H
55028-0670-660
COWLING,SIDE,Right Hand,Front,M S BLACK
$396.90¢198 450
1
#55028J
55028-0671-667
COWLING,SIDE,LH,RR,P.C.WHITE
$354.90¢177 450
1
#55028J
55028-0671-68D
COWLING,SIDE,Left Hand,Rear,P N TEAL
$385.19¢192 594
1
#55028J
55028-0671-H8
COWLING,SIDE,LH,RR,EBONY
$359.29¢179 644
1
#55028M
55028-0672-667
COWLING,SIDE,RH,RR,P.C.WHITE
$387.79¢193 894
1
#55059
55059-5285-54X
COWLING,LWR,LH,P.B.WHITE
$439.85¢219 925
1
#55059A
55059-5286-54X
COWLING,Lower,Right Hand,P B WHITE
$453.85¢226 925
1
#55059B
55059-5291-H8
COWLING,SIDE,Left Hand,Front,EBONY
$538.60¢269 300
1
#55059C
55059-5292-H8
COWLING,SIDE,Right Hand,Front,EBONY
$538.60¢269 300
1
#92009
92009-1197
SCREW,TAPPING,5X14
$3.90¢1 950
1
#92015
92015-1700
NUT
$8.53¢4 263
1
#92015A
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92039A
92039-0068
RIVET
$2.73¢1 363
1
#92039
92039-0051
RIVET
$4.61¢2 306
1
#92075
92075-1964
DAMPER
$4.96¢2 481
1
#92153
92153-0489
BOLT,SOCKET,6MM
$3.70¢1 850
1
#92153A
92153-0713
BOLT,FLANGED,6X16
$2.00¢1 000
1
#92153B
92153-1356
BOLT,SOCKET,6X22
$2.04¢1 019
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92173
92173-0868
CLAMP,HOLDER CLIP
$2.75¢1 375
1
#92200
92200-0157
WASHER,10.4X15.9X0.5
$2.04¢1 019
1
#92200A
92200-1820
WASHER,5.2X10X1.0
$0.78¢388
1
#92210
92210-0571
NUT
$3.50¢1 750
1
