FRAME FITTINGS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

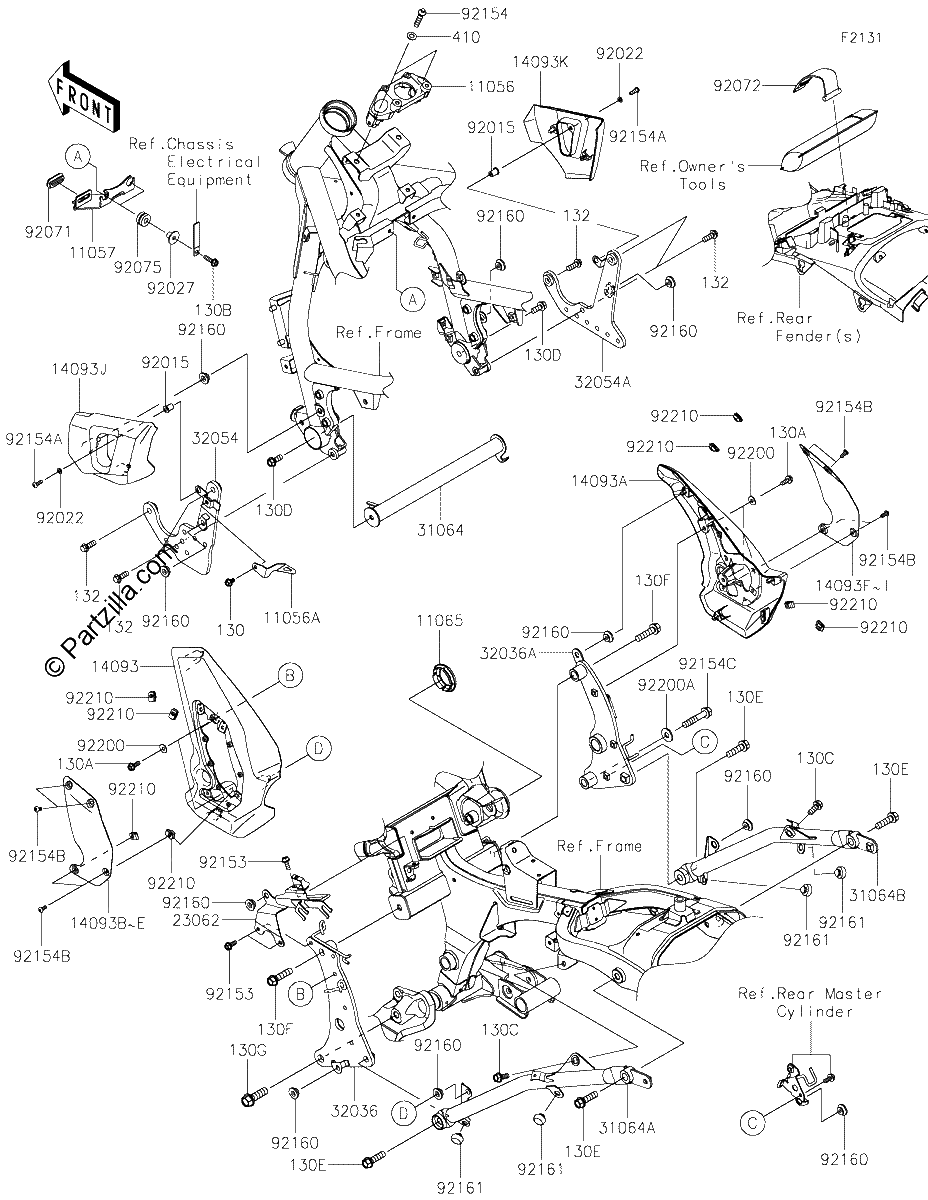

Diagrama de FRAME FITTINGS

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130E
130CA1035
BOLT FLANGED,10X35
$6.59¢3 294
1
#130A
130BA0616
BOLT FLANGED,6X16
$1.26¢631
1
#130B
130BA0622
BOLT-FLANGED,6X22
$1.30¢650
1
#130C
130BA0820
BOLT FLANGED,8X20
$3.96¢1 981
1
#130D
130CA0820
BOLT FLANGED,8X20
$1.66¢831
1
#130F
130CA1040
BOLT-FLANGED,10X40
$2.68¢1 338
1
#130G
130CB1240
BOLT-FLANGED,12X40
$3.10¢1 550
1
#132
132BB0822
BOLT-FLANGED-SMALL,8X22
$1.94¢969
1
#410
410AA0800
WASHER-PLAIN-SMALL,8MM
$1.05¢525
1
#11056
11056-0805
BRACKET,IGNITION SW.
$59.46¢29 731
1
#11056A
11056-4456
BRACKET,STEP STAY COVER,LH
$5.40¢2 700
1
#11057
11057-0177
BRACKET,REGULATOR
$17.06¢8 531
1
#11065
11065-0868-18T
CAP,SHOCK BKT.,F S BLACK
$3.71¢1 856
1
#14093J
14093-0348-18T
COVER,STEP STAY,Left Hand,F S BLACK
$103.65¢51 825
1
#14093K
14093-0349-18T
COVER,STEP STAY,Right Hand,F S BLACK
$103.65¢51 825
1
#14093
14093-0115
COVER,PIVOT,Left Hand
$103.65¢51 825
1
#14093F
14093-0118-68N
COVER,PIVOT,PLATE,Right Hand,P R WHITE
$97.90¢48 950
1
#14093F
14093-0118-H8
COVER,PIVOT,PLATE,Right Hand,EBONY
$97.90¢48 950
1
#14093F
14093-0118-53U
COVER,PIVOT,PLATE,Right Hand,GRAY
$97.90¢48 950
1
#14093F
14093-0118-45L
COVER,PIVOT,PLATE,RH,F.EBONY
$102.29¢51 144
1
#14093B
14093-0117-53U
COVER,PIVOT,PLATE,Left Hand,GRAY
$97.90¢48 950
1
#14093B
14093-0117-H8
COVER,PIVOT,PLATE,Left Hand,EBONY
$97.90¢48 950
1
#14093B
14093-0117-68N
COVER,PIVOT,PLATE,Left Hand,P R WHITE
$97.90¢48 950
1
#14093B
14093-0117-45L
COVER,PIVOT,PLATE,LH,F.EBONY
$102.29¢51 144
1
#14093A
14093-0116
COVER,PIVOT,Right Hand
$103.65¢51 825
1
#23062
23062-0822
BRACKET-COMP,SIDE COVER
$26.72¢13 362
1
#31064A
31064-0652-18R
PIPE COMP,Rear,Left Hand,F S BLACK
$210.90¢105 450
1
#31064B
31064-0653-18R
PIPE COMP,Rear,Right Hand,F S BLACK
$210.90¢105 450
1
#31064
31064-0649
PIPE-COMP,FR FRAME
$24.35¢12 175
1
#32036A
32036-0350
BRACKET-SWINGARM,RH
$115.78¢57 888
1
#32036
32036-0349
BRACKET-SWINGARM,LH
$109.70¢54 850
1
#32054A
32054-0076
BRACKET-STEP,RH
$203.15¢101 575
1
#32054
32054-0075
BRACKET STEP,Left Hand
$192.46¢96 231
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022
92022-1977
WASHER,5.1X10X1.0
$3.60¢1 800
1
#92027
92027-1450
COLLAR,L=13.1,BLACK
$6.09¢3 044
1
#92071
92071-0013
GROMMET
$5.67¢2 838
1
#92072
92072-0056
BAND,TOOL
$2.26¢1 131
1
#92075
92075-209
DAMPER
$4.65¢2 325
1
#92153
92153-0713
BOLT,FLANGED,6X16
$2.00¢1 000
1
#92154A
92154-1470
BOLT,SOCKET,5X16
$1.49¢744
1
#92154B
92154-1471
BOLT,SOCKET,5X12
$1.49¢744
1
#92154C
92154-1620
BOLT,FLANGED,10X50
$6.63¢3 313
1
#92154
92154-0730
BOLT,TORX,8X35
$7.54¢3 769
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92161
92161-0855
DAMPER,10X20X8
$4.24¢2 119
1
#92200A
92200-1686
WASHER,10.2X25X2.3
$1.88¢938
1
#92200
92200-0796
WASHER,6.5X16X1.0
$0.95¢475
1
#92210
92210-0935
NUT,PLATE,5MM
$1.88¢938
1
