FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

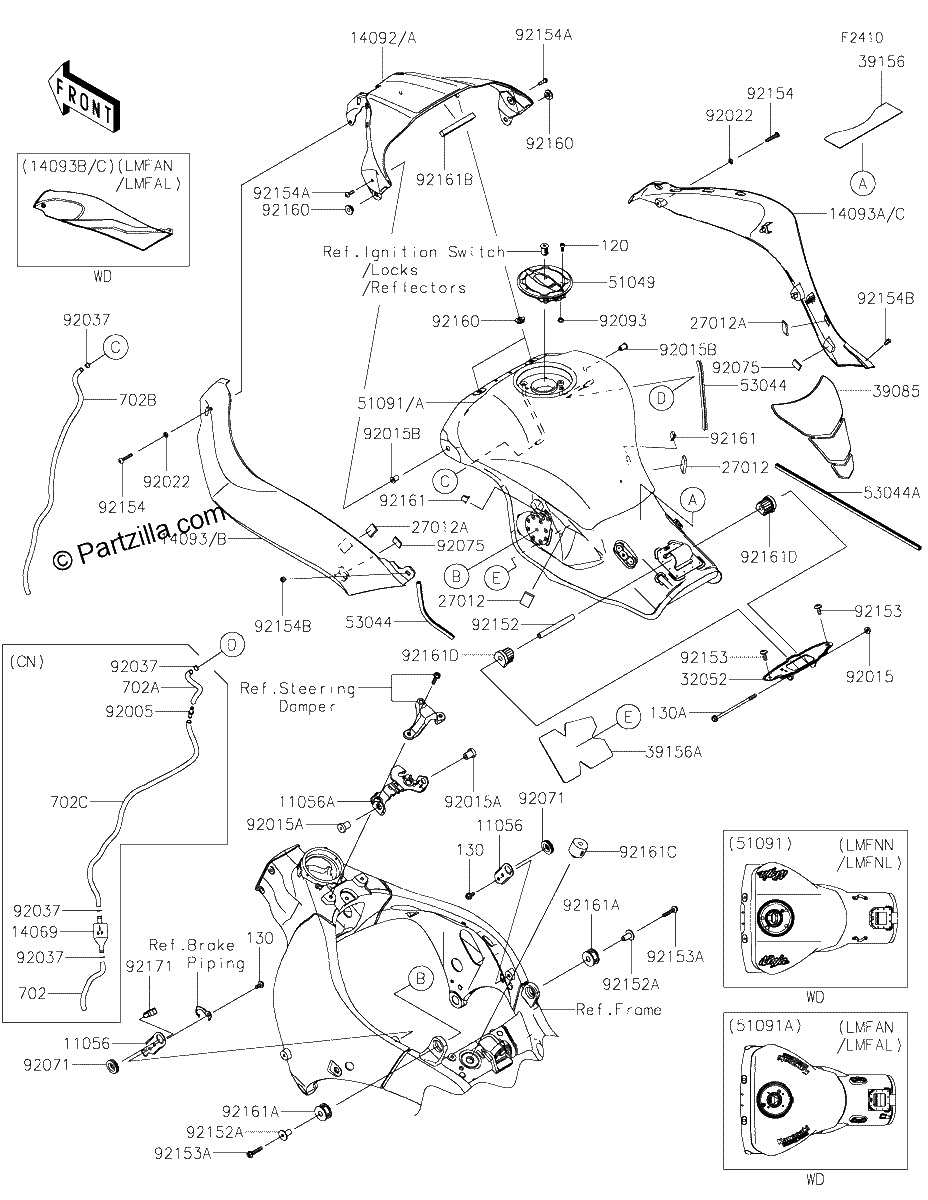

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#130A
130BA0675
BOLT FLANGED,6X75
$1.55¢776
1
#702C
702A06700
TUBE RUBBER,6X9X700
$17.40¢8 700
1
#702B
702A06660
TUBE RUBBER,6X9X660
$4.98¢2 490
1
#702A
702A06145
TUBE RUBBER,6X9X145
$2.01¢1 006
1
#702
702A06120
TUBE RUBBER,6X9X120
$1.26¢633
1
#11056
11056-0242
BRACKET,TANK COVER,SIDE
$8.42¢4 209
1
#11056A
11056-7782
BRACKET,TANK COVER,FR
$9.54¢4 773
1
#14069
14069-0008
BREATHER,TANK
$6.18¢3 088
1
#14092
14092-0786-51B
COVER,TANK,CNT,M M C GRAY
$205.08¢102 540
1
#14092
14092-0786-777
COVER,TANK,CNT,L GREEN
$195.35¢97 675
1
#14093
14093-0680-660
COVER,TANK,LH,M.S.BLACK
$252.34¢126 172
1
#14093A
14093-0681-660
COVER,TANK,RH,M.S.BLACK
$253.76¢126 880
1
#14093
14093-5332-777
COVER,TANK,LH,L.GREEN
$360.67¢180 337
1
#14093A
14093-5333-777
COVER,TANK,RH,L.GREEN
$360.67¢180 337
1
#27012
27012-0170
HOOK
$5.22¢2 610
1
#27012A
27012-0171
HOOK
$5.34¢2 668
1
#32052
32052-0154
BRACKET-TANK
$40.65¢20 326
1
#39085
39085-0011
PAD TANK
$125.72¢62 859
1
#39156
39156-0745
PAD,40X180X1.0
$19.27¢9 637
1
#39156A
39156-2403
PAD,106X141X2
$13.18¢6 590
1
#51049
51049-0756
CAP-TANK,FUEL
$160.05¢80 023
1
#51091
51091-5473-51B
TANK-COMP-FUEL,M.M.C.GRAY
$1231.63¢615 814
1
#51091
51091-5475-777
TANK-COMP-FUEL,L.GREEN
$1164.43¢582 216
1
#53044
53044-1276
TRIM,L=157
$9.29¢4 646
1
#53044A
53044-1310
TRIM,L=400
No Disponible
1
#92005
92005-0721
FITTING | [CA]
$9.53¢4 767
1
#92015A
92015-1692
NUT,RUBBER,6MM
$6.72¢3 358
1
#92015B
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92022
92022-183
WASHER,6.2X11X1.5
$3.59¢1 794
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.59¢1 794
1
#92071
92071-1043
GROMMET
$4.69¢2 346
1
#92075
92075-1982
DAMPER,IGNITION
$4.22¢2 110
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152A
92152-2200
COLLAR,6.8X10X20.1
$5.86¢2 932
1
#92152
92152-1182
COLLAR,6.8X10X60
$4.42¢2 208
1
#92153A
92153-1580
BOLT,FLANGED,6X28
$1.87¢937
1
#92153
92153-1526
BOLT,SOCKET,6X16
$1.59¢793
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154B
92154-0211
BOLT,SOCKET,5X10
$1.84¢920
1
#92154
92154-0206
BOLT,SOCKET,6X30
$2.33¢1 167
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-0365
DAMPER
$4.84¢2 421
1
#92161A
92161-0869
DAMPER,10X30X16
$4.02¢2 012
1
#92161B
92161-0963
DAMPER,10X90X10
$1.79¢897
1
#92161C
92161-1116
DAMPER
$9.63¢4 813
1
#92161D
92161-1330
DAMPER,FUEL TANK,RR
$5.29¢2 645
1
#92171
92171-0782
CLAMP
$3.58¢1 788
1
