COWLING LOWERS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

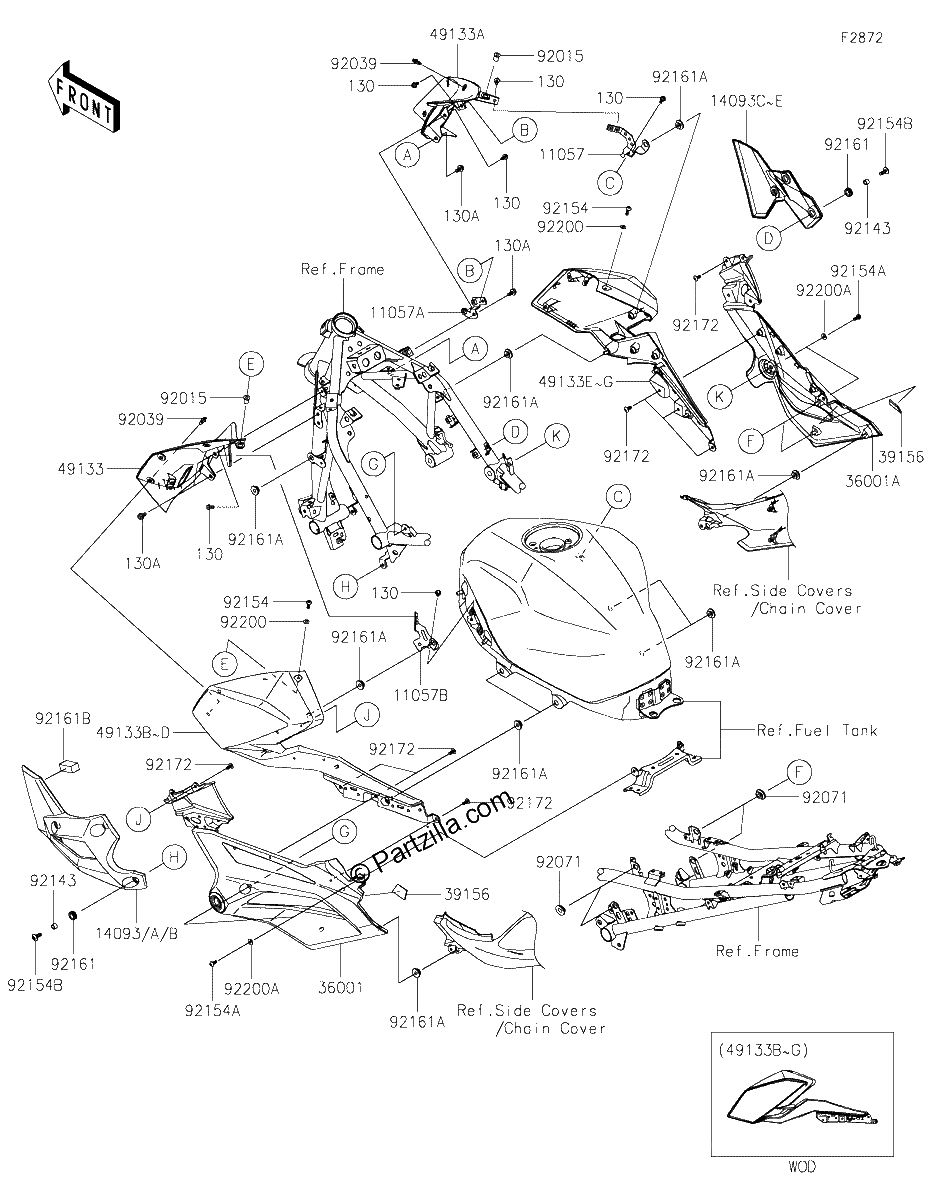

Diagrama de COWLING LOWERS

Repuestos

#130
130BA0510
BOLT FLANGED,5X10
$1.66¢831
1
#130a
130BB0612
BOLT FLANGED,6X12
$2.19¢1 094
1
#130A
130BB0612
BOLT FLANGED,6X12
$2.19¢1 094
1
#11057
11057-1720
BRACKET,SHROUD,INNER,RH,UPP
$6.01¢3 006
1
#11057A
11057-1721
BRACKET,SHROUD,INNER,RH,LWR
$5.78¢2 888
1
#11057B
11057-2971
BRACKET,SHROUD,INNER,LH
$6.25¢3 125
1
#14093C
14093-0747-660
COVER,RADIATOR,RH,M.S.BLACK
$89.26¢44 631
1
#14093
14093-0746-660
COVER,RADIATOR,LH,M.S.BLACK
$107.30¢53 650
1
#14093
14093-0746-68P
COVER,RADIATOR,Left Hand,M M G GRAY
$107.30¢53 650
1
#14093
14093-0746-739
COVER,RADIATOR,LH,M.F.S.BLACK
$107.30¢53 650
1
#14093
14093-0746-H8
COVER,RADIATOR,Left Hand,EBONY
$107.30¢53 650
1
#14093D
14093-0747-660
COVER,RADIATOR,RH,M.S.BLACK
$89.26¢44 631
1
#14093C
14093-0747-68P
COVER,RADIATOR,Right Hand,M M G GRAY
$89.26¢44 631
1
#14093D
14093-0747-68P
COVER,RADIATOR,Right Hand,M M G GRAY
$89.26¢44 631
1
#14093D
14093-0747-739
COVER,RADIATOR,RH,M.F.S.BLACK
$89.26¢44 631
1
#14093C
14093-0747-739
COVER,RADIATOR,RH,M.F.S.BLACK
$89.26¢44 631
1
#14093D
14093-0747-H8
COVER,RADIATOR,Right Hand,EBONY
$89.26¢44 631
1
#36001
36001-0670
COVER-SIDE,LH
$106.19¢53 094
1
#36001A
36001-0671
COVER-SIDE,RH
$106.19¢53 094
1
#39156
39156-2469
PAD
$1.11¢556
1
#49133G
49133-0032-51A
SHROUD,OUTER,Right Hand,M C GRAY
$188.35¢94 175
1
#49133G
49133-0032-51P
SHROUD,OUTER,Right Hand,C L GREEN
No Disponible
1
#49133E
49133-0032-660
SHROUD,OUTER,RH,M.S.BLACK
$188.35¢94 175
1
#49133G
49133-0032-660
SHROUD,OUTER,RH,M.S.BLACK
$188.35¢94 175
1
#49133G
49133-0032-68N
SHROUD,OUTER,RH,P.R.WHITE
$188.35¢94 175
1
#49133E
49133-0032-68N
SHROUD,OUTER,RH,P.R.WHITE
$188.35¢94 175
1
#49133G
49133-0032-739
SHROUD,OUTER,RH,M.F.S.BLACK
$188.35¢94 175
1
#49133E
49133-0032-739
SHROUD,OUTER,RH,M.F.S.BLACK
$188.35¢94 175
1
#49133B
49133-0031-68N
SHROUD,OUTER,Left Hand,P R WHITE
$168.00¢84 000
1
#49133B
49133-0031-739
SHROUD,OUTER,LH,M.F.S.BLACK
$188.35¢94 175
1
#49133B
49133-0031-660
SHROUD,OUTER,LH,M.S.BLACK
$188.35¢94 175
1
#49133B
49133-0031-51P
SHROUD,OUTER,Left Hand,C L GREEN
No Disponible
1
#49133
49133-0029
SHROUD,INNER,LH
$55.91¢27 956
1
#49133A
49133-0030
SHROUD,INNER,RH
$55.91¢27 956
1
#49133B
49133-0031-51A
SHROUD,OUTER,Left Hand,M C GRAY
$187.13¢93 563
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92039
92039-0060
RIVET
$3.05¢1 525
1
#92071
92071-0766
GROMMET,20X24X7.5
$1.42¢712
1
#92143
92143-1407
COLLAR,6.8X10X7
$1.30¢650
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154A
92154-1421
BOLT,SOCKET,5X12
$1.05¢525
1
#92154B
92154-3838
BOLT,SOCKET,6X16
$2.04¢1 019
1
#92161
92161-0266
DAMPER
$1.72¢862
1
#92161A
92161-1531
DAMPER
$2.75¢1 375
1
#92161B
92161-2260
DAMPER,15X40X20
$2.58¢1 288
1
#92172
92172-0821
SCREW,5X12
$0.95¢475
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
1
#92200A
92200-2211
WASHER,5.3X13X1.2
$0.78¢388
1
