CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

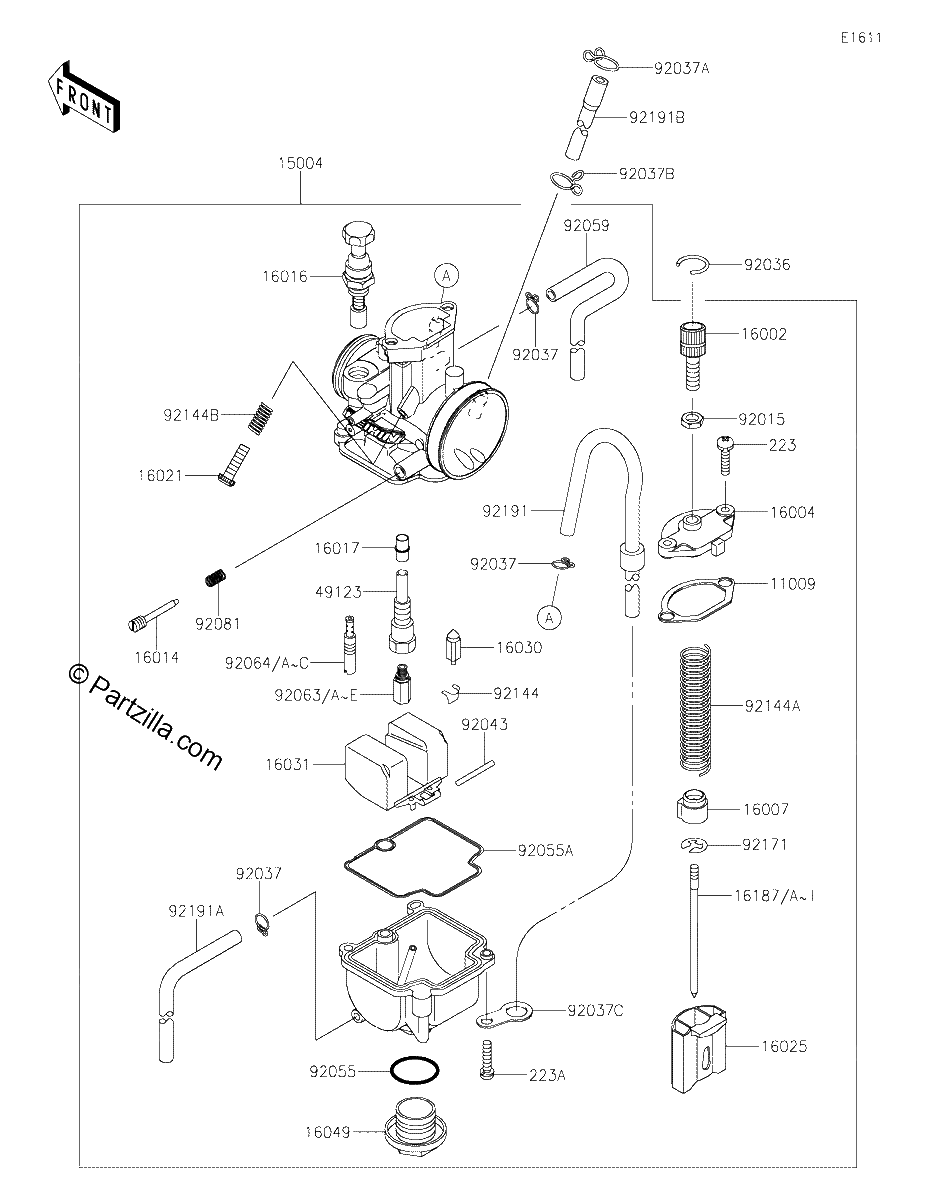

Diagrama de CARBURETOR

Repuestos

#223
223AB0414
SCREW-PAN-WS-CROS,4X14
$4.16¢2 081
1
#223A
223AB0416
SCREW-PAN-WS-CROS,4X16
$4.10¢2 050
1
#11009
11009-1759
GASKET,MIXING CHAMBER
$11.97¢5 988
1
#15004
15004-0859
CARBURETOR Assembly,PWK28
$494.75¢247 375
1
#16002
16002-1056
ADJUSTER CABLE
$25.34¢12 669
1
#16004
16004-1065
CAP-CHAMBER,MIXING
$96.15¢48 075
1
#16007
16007-1155
SEAT SPRING,THROTTLE VALVE
$9.50¢4 750
1
#16014
16014-1058
SCREW PILOT AIR
$21.90¢10 950
1
#16016
16016-1075
PLUNGER,STARTER
$49.15¢24 575
1
#16017
16017-1431
JET-NEEDLE
$50.14¢25 069
1
#16021
16021-1161
SCREW-THROTTLE STOP
$18.39¢9 194
1
#16025
16025-1220
VALVE THROTTLE,CA3.5
$178.46¢89 231
1
#16030
16030-1064
VALVE-FLOAT
$60.21¢30 106
1
#16031
16031-1065
FLOAT
$64.21¢32 106
1
#16049
16049-1051
COVER-MAIN JET
$40.50¢20 250
1
#16187
16187-0564
NEEDLE-JET,NRKC
$36.90¢18 450
1
#16187
16187-0566
NEEDLE-JET,NRKE
$36.90¢18 450
1
#16187
16187-0565
NEEDLE-JET,NRKD
$36.90¢18 450
1
#16187
16187-0559
NEEDLE-JET,NRJC
$36.90¢18 450
1
#16187
16187-0563
NEEDLE-JET,NRKB
$36.90¢18 450
1
#16187
16187-0562
NEEDLE-JET,NRKA
$36.90¢18 450
1
#16187
16187-0561
NEEDLE-JET,NRJE
$36.90¢18 450
1
#16187
16187-0560
NEEDLE-JET,NRJD
$36.90¢18 450
1
#16187
16187-0558
NEEDLE-JET,NRJB
$36.90¢18 450
1
#16187
16187-0557
NEEDLE JET,NRJA
$36.90¢18 450
1
#49123
49123-1054
HOLDER-MAIN JET
$25.47¢12 737
1
#92015
92015-1574
NUT,CABLE ADJUST LOCK
$6.69¢3 344
1
#92036
92036-018
RING-SNAP
$3.88¢1 938
1
#92037C
92037-1969
CLAMP,HOSE
$8.05¢4 025
1
#92037A
92037-147
CLAMP,TUBE | [CA]
$7.30¢3 650
1
#92037
92037-1396
CLAMP,TUBE
$5.45¢2 725
1
#92037B
92037-1712
CLAMP
$4.96¢2 481
1
#92043
92043-1207
PIN,FLOAT
$12.54¢6 269
1
#92055A
92055-1389
RING-O,FLOAT CHAMBER
$9.83¢4 913
1
#92055
92055-1167
RING O,MAIN JET COVER
$9.44¢4 719
1
#92059
92059-1941
TUBE,4X7X480
$19.11¢9 556
1
#92063
92063-1338
JET MAIN,#135
$14.28¢7 138
1
#92063
92063-1359
JET MAIN,#138
$17.34¢8 669
1
#92063
92063-1360
JET MAIN,#140
$16.85¢8 425
1
#92063
92063-1361
JET MAIN,#142
$15.67¢7 837
1
#92063
92063-1362
JET MAIN,#145
$15.67¢7 837
1
#92063
92063-1364
JET MAIN,#150
$15.67¢7 837
1
#92064
92064-1138
JET PILOT,#35
$18.69¢9 344
1
#92064
92064-1141
JET PILOT,#42
$16.73¢8 363
1
#92064
92064-1140
JET PILOT,#40
$16.73¢8 363
1
#92064
92064-1139
JET PILOT,#38
$18.69¢9 344
1
#92081
92081-1555
SPRING,ADJUST SCREW
$5.40¢2 700
1
#92144B
92144-1782
SPRING,THROTTLE STOP SCREW
$18.27¢9 138
1
#92144A
92144-1566
SPRING,THROTTLE VALVE
$14.11¢7 056
1
#92144
92144-1178
SPRING,FLOAT VALVE
$9.06¢4 531
1
#92171
92171-1323
CLAMP
$13.25¢6 625
1
#92191A
92191-1591
TUBE,4X7X420
$16.05¢8 025
1
#92191
92191-1243
TUBE,4X7X560
$11.75¢5 875
1
#92191B
92191-1610
TUBE
$7.65¢3 825
1
