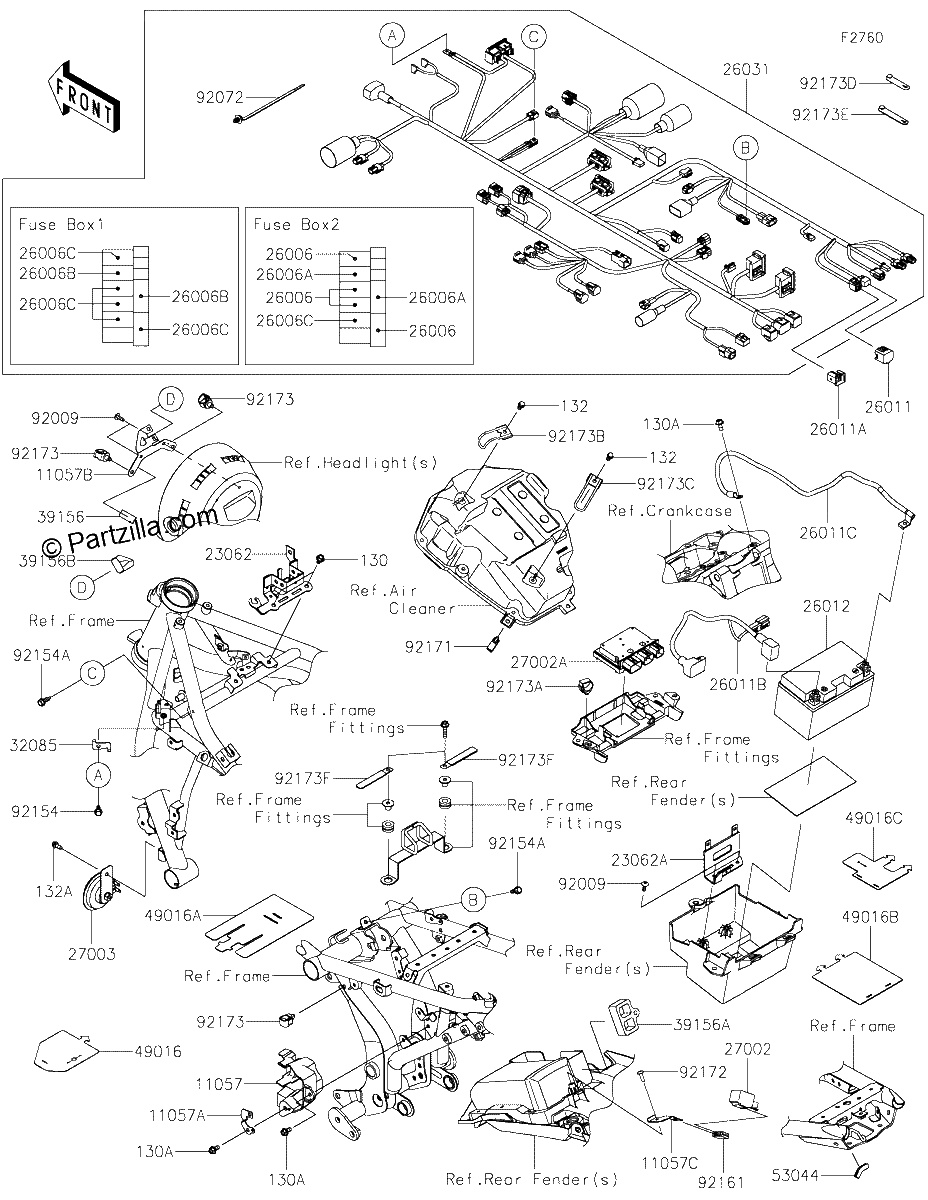

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X10
$1.16¢581
#130A
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
#132
BOLT-FLANGED-SMALL,6X10
$1.53¢765
#132A
BOLT-FLANGED-SMALL,6X12
$1.78¢891
#11057
BRACKET,MAGNETIC SW.
$8.38¢4 192
#11057A
BRACKET,COUPLER
$2.37¢1 185
#11057B
BRACKET,SIGNAL LAMP
$4.82¢2 409
#11057C
BRACKET,RELAY
$3.36¢1 679
#23062
BRACKET COMP
$13.68¢6 842
#23062A
BRACKET-COMP,FUSE BOX
$9.64¢4 819
#26006
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
#26006A
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
#26006B
FUSE,MINI BLADE,5A,TAN
$4.66¢2 329
#26006C
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
#26011
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
#26011A
WIRE-LEAD,DIAG CONNECTOR
$41.25¢20 625
#26011B
WIRE LEAD,BATTERY(+)
$50.36¢25 179
#26011C
WIRE LEAD,BATTERY( )
$38.13¢19 067
#26012
BATTERY,YTZ10,12V 8.6AH
No Disponible
#26031
HARNESS,MAIN
$1191.66¢595 832
#27002
RELAY Assembly,SIGNAL LAMP
$60.36¢30 182
#27002A
RELAY Assembly
$149.93¢74 963
#27003
HORN
$76.27¢38 134
#32085
STOPPER
$1.49¢747
#39156A
PAD,DIAGNOSTIC CONNECTOR
$8.08¢4 042
#39156B
PAD
$2.85¢1 426
#39156
PAD,12X32.8X2
$1.26¢633
#49016C
COVER SEAL,FUEL PUMP CONNECTOR
$3.94¢1 972
#49016A
COVER-SEAL,ECU CONNECTOR
$10.02¢5 008
#49016B
COVER-SEAL,REAR LAMP
$4.93¢2 467
#49016
COVER-SEAL
$6.06¢3 030
#53044
TRIM,L=30
$2.46¢1 231
#92009
SCREW,TAPPING,5X14
$3.59¢1 794
#92072
BAND
$3.40¢1 702
#92154A
BOLT,FLANGED,6X18
$1.31¢655
#92154
BOLT,FLANGED,6X16
$1.55¢776
#92161
DAMPER,15X25X8.5
$1.79¢897
#92171
CLAMP,BRAKE HOSE
$3.51¢1 754
#92172
SCREW,TAPPING,5X16
$1.71¢857
#92173A
CLAMP,HOLDER CLIP
$2.53¢1 265
#92173B
CLAMP,A/C CASE,FR
$5.31¢2 657
#92173C
CLAMP,A/C CASE,RR
$5.31¢2 657
#92173D
CLAMP
$1.43¢713
#92173E
CLAMP
$1.43¢713
#92173
CLAMP,12MM DIA.
$4.61¢2 306
#92173F
CLAMP
$2.46¢1 231
