CAMSHAFT S BEVEL GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

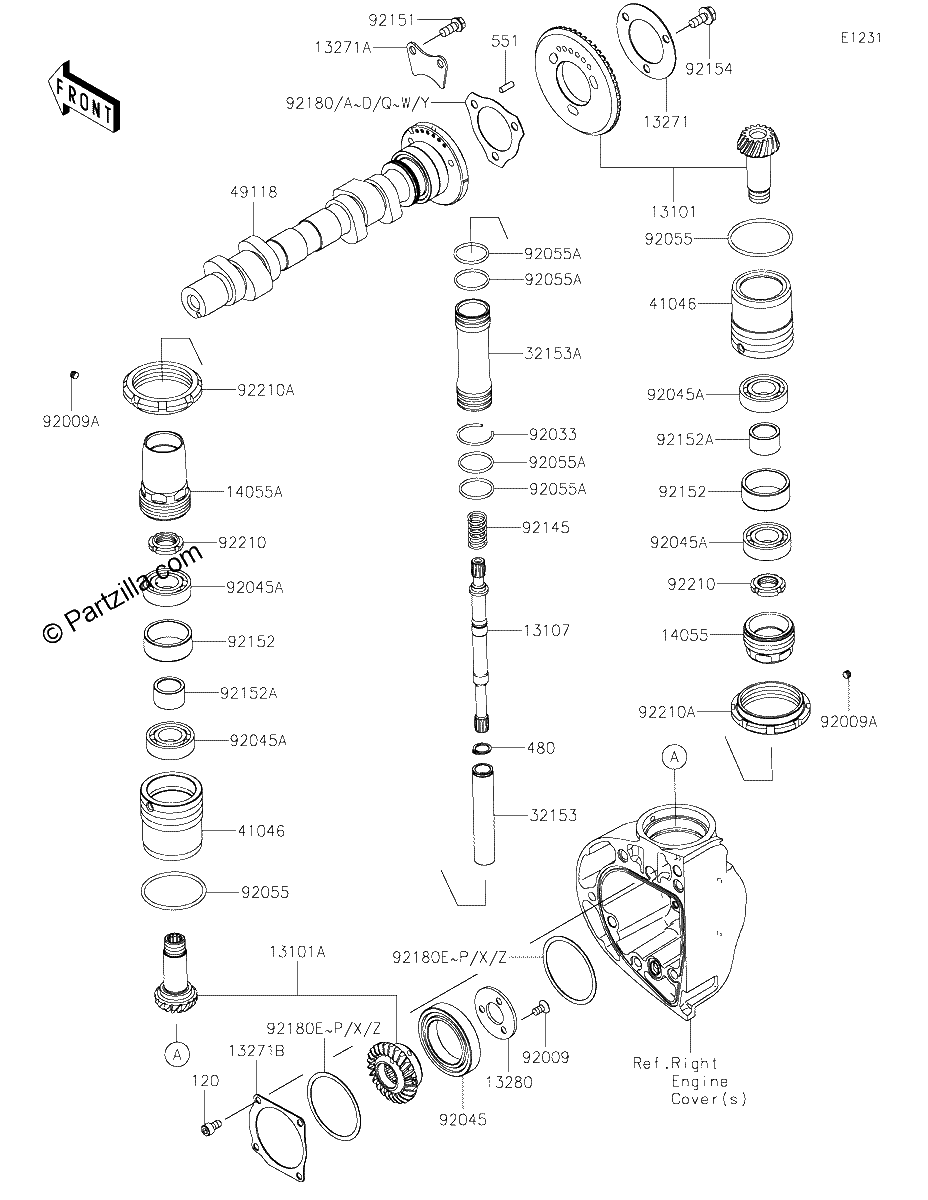

Diagrama de CAMSHAFT S BEVEL GEAR

Repuestos

#120
120CB0510
BOLT SOCKET,5X10
$1.47¢736
1
#480
480J1100
CIRCLIP-TYPE-C,11MM
$1.14¢569
1
#551
551A0412
PIN-DOWEL
$1.49¢747
1
#13101
13101-0580
GEAR Assembly,CAMSHAFT
$558.87¢279 433
1
#13101A
13101-1289
GEAR Assembly,CRANKSHAFT
$514.49¢257 243
1
#13107
13107-1424
SHAFT
$127.14¢63 572
1
#13271
13271-1190
PLATE,PIN
$4.62¢2 311
1
#13271A
13271-1191
PLATE,CAMSHAFT BEARING
$4.00¢2 001
1
#13271B
13271-1192
PLATE,BEARING
$7.92¢3 962
1
#13280
13280-1123
HOLDER,BEARING
$8.51¢4 255
1
#14055
14055-1161
CASE-GEAR
$54.69¢27 347
1
#14055A
14055-1162
CASE-GEAR
$104.74¢52 371
1
#32153
32153-1096
PIPE
$31.71¢15 853
1
#32153A
32153-1097
PIPE
$56.98¢28 491
1
#41046
41046-1104
HOUSING-BEARING
$77.34¢38 669
1
#49118
49118-0162
CAMSHAFT COMP
$750.09¢375 044
1
#92009
92009-1828
SCREW,5X10
$2.10¢1 052
1
#92009A
92009-1883
SCREW,NUT LOCK
$2.10¢1 052
1
#92033
92033-1307
RING SNAP
$3.29¢1 644
1
#92045
92045-1373
BEARING BALL,6907C2
$32.95¢16 474
1
#92045A
92045-1383
BEARING-BALL,6003SH2-T2
$17.87¢8 936
1
#92055
92055-1593
RING-O,CAMSHAFT BEVEL GEAR
$9.63¢4 813
1
#92055A
92055-1617
RING-O,22.1X1.9
$2.27¢1 133
1
#92145
92145-1285
SPRING
$2.33¢1 167
1
#92151
92151-1647
BOLT,6X14
$2.10¢1 052
1
#92152
92152-1150
COLLAR
$11.30¢5 652
1
#92152A
92152-1151
COLLAR
$9.02¢4 508
1
#92154
92154-0482
BOLT,FLANGED,6X14
$1.55¢776
1
#92180E
92180-1296
SHIM,T=1.20
$3.45¢1 725
1
#92180E
92180-1294
SHIM,T=0.90
$3.51¢1 754
1
#92180E
92180-1293
SHIM,T=0.80
$3.51¢1 754
1
#92180E
92180-1292
SHIM,T=0.70
$3.51¢1 754
1
#92180E
92180-1291
SHIM,T=0.60
$3.51¢1 754
1
#92180E
92180-1289
SHIM,T=0.40
$2.83¢1 414
1
#92180E
92180-1324
SHIM,T=0.13
$3.39¢1 696
1
#92180E
92180-1306
SHIM,T=0.08
$3.39¢1 696
1
#92180
92180-1300
SHIM,T=0.50
$3.51¢1 754
1
#92180
92180-1303
SHIM,T=0.90
$3.51¢1 754
1
#92180
92180-1299
SHIM,T=0.40
$2.83¢1 414
1
#92180
92180-1304
SHIM,T=1.00
$4.00¢2 001
1
#92180
92180-1305
SHIM,T=0.08
$3.39¢1 696
1
#92180
92180-1301
SHIM,T=0.60
$3.51¢1 754
1
#92180
92180-1323
SHIM,T=0.13
$3.39¢1 696
1
#92180
92180-1302
SHIM,T=0.80
$3.51¢1 754
1
#92180E
92180-1290
SHIM,T=0.50
$3.51¢1 754
1
#92180
92180-1279
SHIM,T=0.70
$3.45¢1 725
1
#92180E
92180-1288
SHIM,T=0.30
$2.83¢1 414
1
#92180E
92180-1287
SHIM,T=0.20
$2.83¢1 414
1
#92180
92180-1280
SHIM,T=0.10
$2.83¢1 414
1
#92180
92180-1281
SHIM,T=0.15
$2.83¢1 414
1
#92180
92180-1282
SHIM,T=0.20
$2.83¢1 414
1
#92180
92180-1283
SHIM,T=0.30
$3.51¢1 754
1
#92180E
92180-1284
SHIM,T=1.00
$3.51¢1 754
1
#92180E
92180-1285
SHIM,T=0.10
$2.83¢1 414
1
#92180E
92180-1286
SHIM,T=0.15
$2.83¢1 414
1
#92210
92210-1175
NUT,BEVEL GEAR
$25.45¢12 725
1
#92210A
92210-1176
NUT,BEVEL GEAR HOUSING
$53.74¢26 870
1
