SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

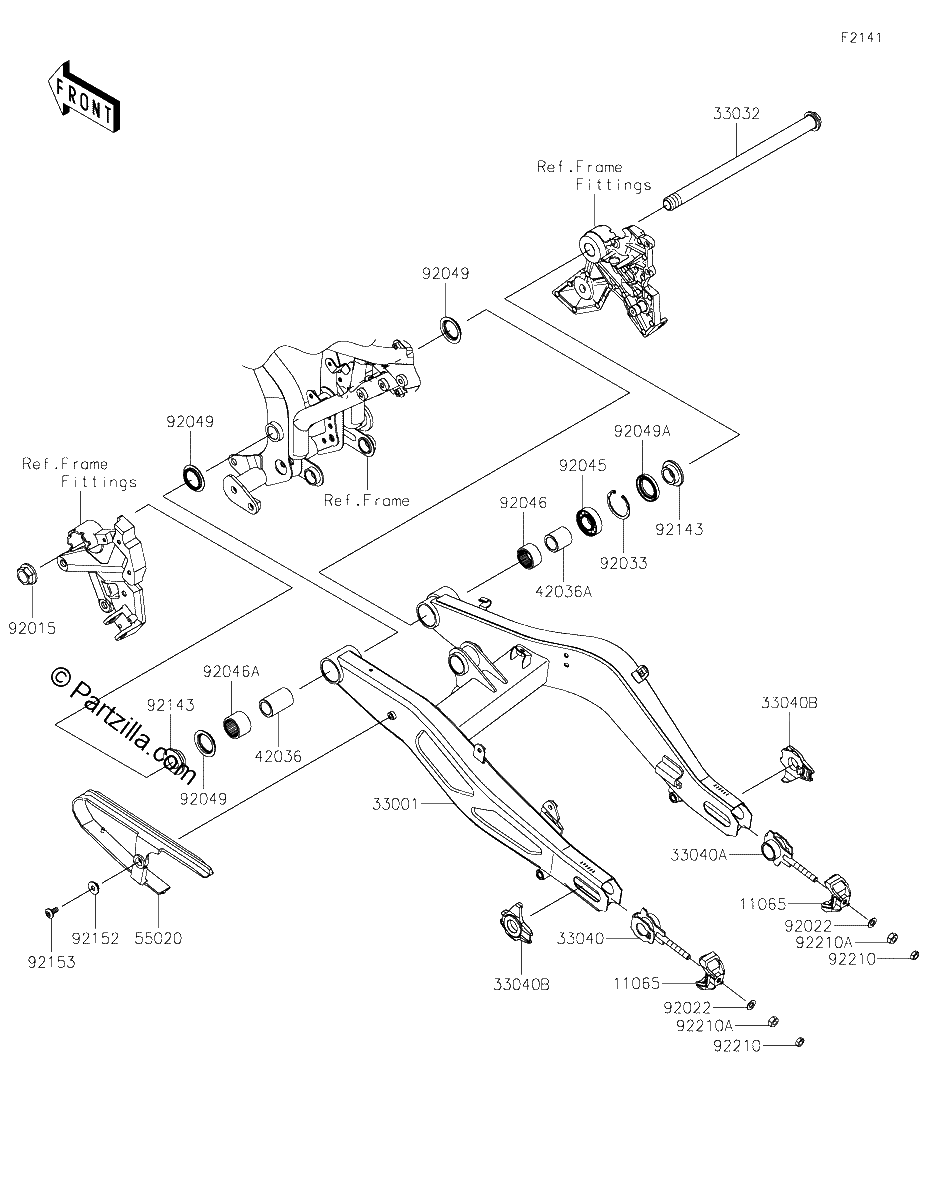

Diagrama de SWINGARM

Repuestos

#11065
11065-0957-10
CAP,BLACK
$14.80¢7 400
1
#33001
33001-0663-10
ARM-COMP-SWING,BLACK
$785.78¢392 892
1
#33032
33032-0050
SHAFT-SWING ARM,20X298
$110.78¢55 390
1
#33040
33040-0085
ADJUSTER-CHAIN,IN,LH
$26.53¢13 265
1
#33040B
33040-0087-10
ADJUSTER CHAIN,OUTER,BLACK
$20.10¢10 051
1
#33040A
33040-0086
ADJUSTER-CHAIN,IN,RH
$26.53¢13 265
1
#42036
42036-0785
SLEEVE,20.1X28X43.5
$35.74¢17 871
1
#42036A
42036-0786
SLEEVE,20.1X28X29.5
$32.02¢16 008
1
#55020
55020-2359
GUARD,CHAIN
$48.37¢24 185
1
#92015
92015-1724
NUT,FLANGED,20MM
$13.56¢6 779
1
#92022
92022-1582
WASHER,8.5X16X1.2
$0.97¢483
1
#92033
92033-1041
RING SNAP,42MM
$5.55¢2 777
1
#92045
92045-0017
BEARING BALL,6004UL11
$13.10¢6 549
1
#92046A
92046-1202
BEARING-NEEDLE,BM2824
$24.39¢12 196
1
#92046
92046-0008
BEARING NEEDLE,7E HVS 28X34X17
$20.87¢10 436
1
#92049A
92049-0138
SEAL OIL
$9.80¢4 899
1
#92049
92049-0132
SEAL OIL
$8.57¢4 284
1
#92143
92143-1727
COLLAR,SWING ARM,RH,L=12.5
$19.75¢9 873
1
#92152
92152-2786
COLLAR
$3.76¢1 880
1
#92153
92153-1361
BOLT,SOCKET,6X14
$2.32¢1 162
1
#92210
92210-0116
NUT,8MM
$1.71¢857
1
#92210A
92210-0117
NUT,8MM
$1.71¢857
1
