HEADLIGHT S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

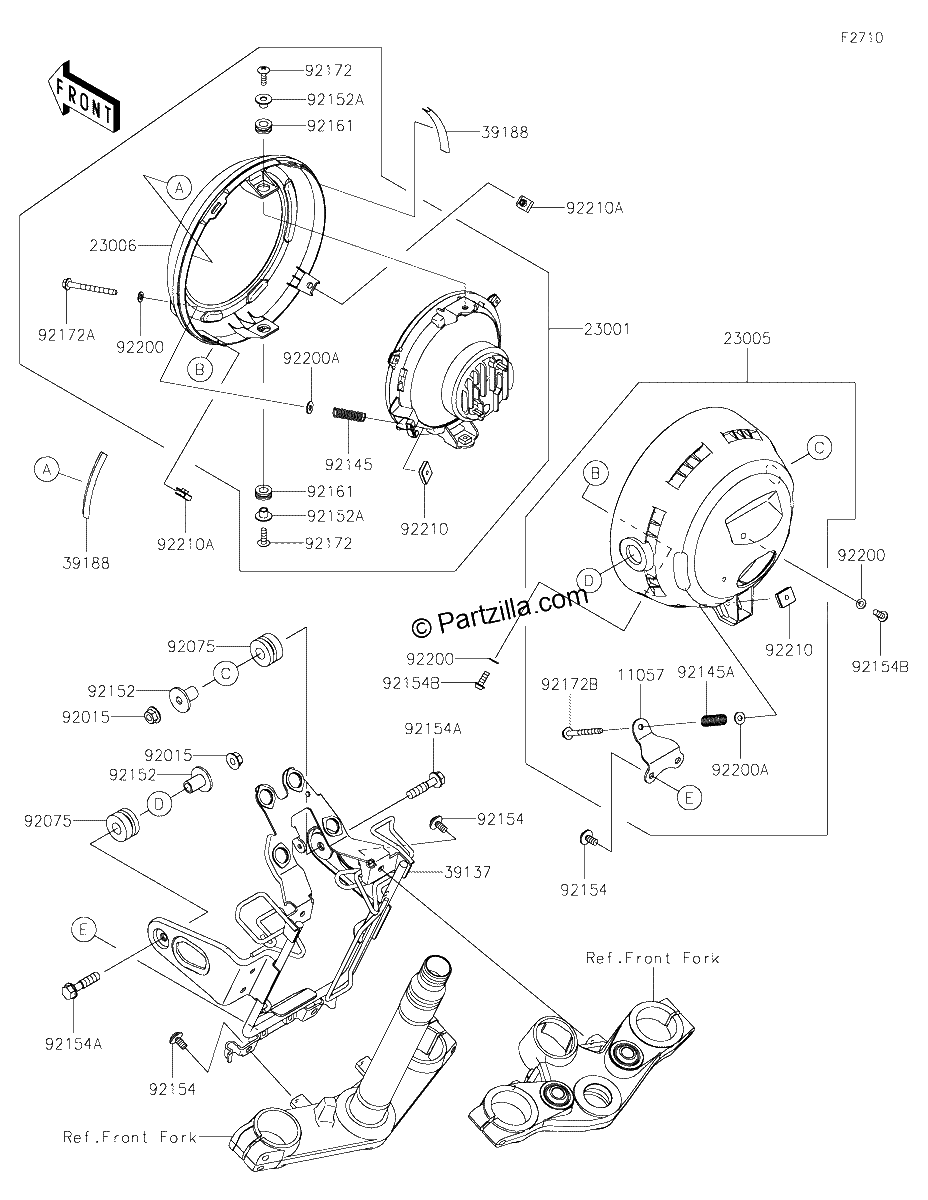

Diagrama de HEADLIGHT S

Repuestos

#11057
11057-7150
BRACKET,HEAD LAMP BODY
$14.11¢7 056
1
#23001
23001-0071
LAMP-ASSY-HEAD,LED
$1820.76¢910 381
1
#23005
23005-0315
BODY-COMP-HEAD LAMP
$179.27¢89 637
1
#23006
23006-0026
RIM-LAMP
$110.55¢55 275
1
#39137
39137-0714
STAY COMP
$128.81¢64 406
1
#39188
39188-0597
TAPE,70X15
$2.66¢1 331
1
#92015
92015-1014
NUT,FLANGED,8MM
$0.74¢369
1
#92075
92075-1736
DAMPER
$6.42¢3 213
1
#92145A
92145-1991
SPRING
$24.01¢12 006
1
#92145
92145-1990
SPRING
$24.01¢12 006
1
#92152A
92152-2785
Collar
$2.54¢1 269
1
#92152
92152-2433
COLLAR,8X12X20.3
$9.09¢4 544
1
#92154
92154-2706
BOLT,SOCKET,6X12
$1.72¢862
1
#92154B
92154-4228
BOLT,HEX HEAD,5X14
$2.58¢1 288
1
#92154A
92154-2923
BOLT,FLANGED,8X35
$6.69¢3 344
1
#92161
92161-2376
Damper
$11.39¢5 694
1
#92172B
92172-1409
SCREW,FLANGED,5X52
$4.25¢2 125
1
#92172A
92172-1408
SCREW,FLANGED,5X52
$4.25¢2 125
1
#92172
92172-1407
SCREW,PAN-CROSS,5X15
$2.13¢1 063
1
#92200A
92200-2436
WASHER,5.2X12X1
$1.01¢506
1
#92200
92200-2435
WASHER,5.2X10X1
$0.56¢281
1
#92210
92210-1850
Nut
$4.19¢2 094
1
#92210A
92210-1851
Nut
$4.25¢2 125
1
