ENGINE COVER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

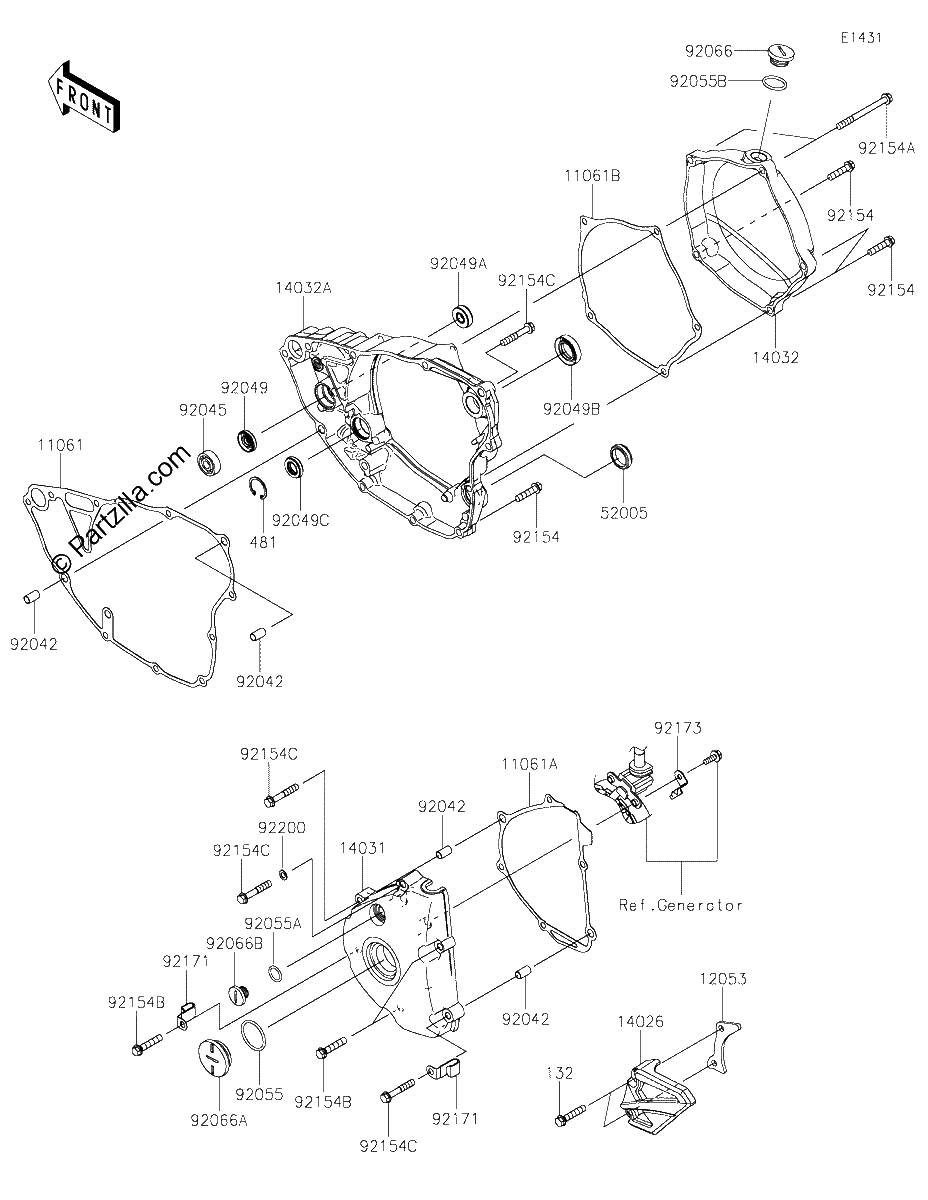

Diagrama de ENGINE COVER S

Repuestos

#132
132BA0630
BOLT-FLANGED-SMALL,6X30
$2.44¢1 219
1
#481
481J2200
CIRCLIP-TYPE-C,22MM
$1.06¢531
1
#11061
11061-1199
GASKET,INNER
$25.46¢12 731
1
#11061A
11061-1200
GASKET,GENERATOR
$17.05¢8 525
1
#11061B
11061-1201
GASKET,OUTER
$23.39¢11 694
1
#12053
12053-0227
GUIDE-CHAIN
$5.09¢2 544
1
#14026
14026-0120
COVER CHAIN
$27.68¢13 838
1
#14031
14031-0605
COVER-GENERATOR
$258.20¢129 100
1
#14032A
14032-0668
COVER CLUTCH,INNER
$297.21¢148 606
1
#14032
14032-0626
COVER-CLUTCH,OUTER
$166.10¢83 050
1
#52005
52005-1009
GAUGE,OIL LEVEL
$18.06¢9 031
1
#92042
92042-007
PIN,DOWEL,6.3X8X14
$5.61¢2 806
1
#92045
92045-1123
BEARING-BALL,#628
$24.53¢12 263
1
#92049C
92049-0762
SEAL OIL,TVCX13X22X5.5
$17.60¢8 800
1
#92049B
92049-013
SEAL-OIL,SB18307
$14.21¢7 106
1
#92049A
92049-0061
SEAL OIL
$11.69¢5 844
1
#92049
92049-0060
SEAL OIL,SD 8 22 5 ZS
$11.69¢5 844
1
#92055B
92055-1146
RING-O,20X2
$8.53¢4 263
1
#92055A
92055-1011
RING O,13.0X1.9
$7.57¢3 787
1
#92055
92055-091
RING O,27.7X2.4
$6.09¢3 044
1
#92066B
92066-0835
PLUG,12X9.1
$13.55¢6 775
1
#92066A
92066-0834
PLUG,30X8
$16.66¢8 331
1
#92066
92066-0833
PLUG,18X9
$17.63¢8 813
1
#92154C
92154-2100
BOLT,FLANGED,6X35
$1.96¢981
1
#92154B
92154-1942
BOLT,FLANGED,6X30
$2.78¢1 388
1
#92154A
92154-1929
BOLT,FLANGED,6X65
$1.55¢775
1
#92154
92154-0520
BOLT,FLANGED,6X25
$3.01¢1 506
1
#92171
92171-0761
CLAMP
$9.90¢4 950
1
#92173
92173-0058
CLAMP,HARNESS
$1.95¢975
1
#92200
92200-0190
WASHER,6.1X10.0X1.0
$2.41¢1 206
1
