SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

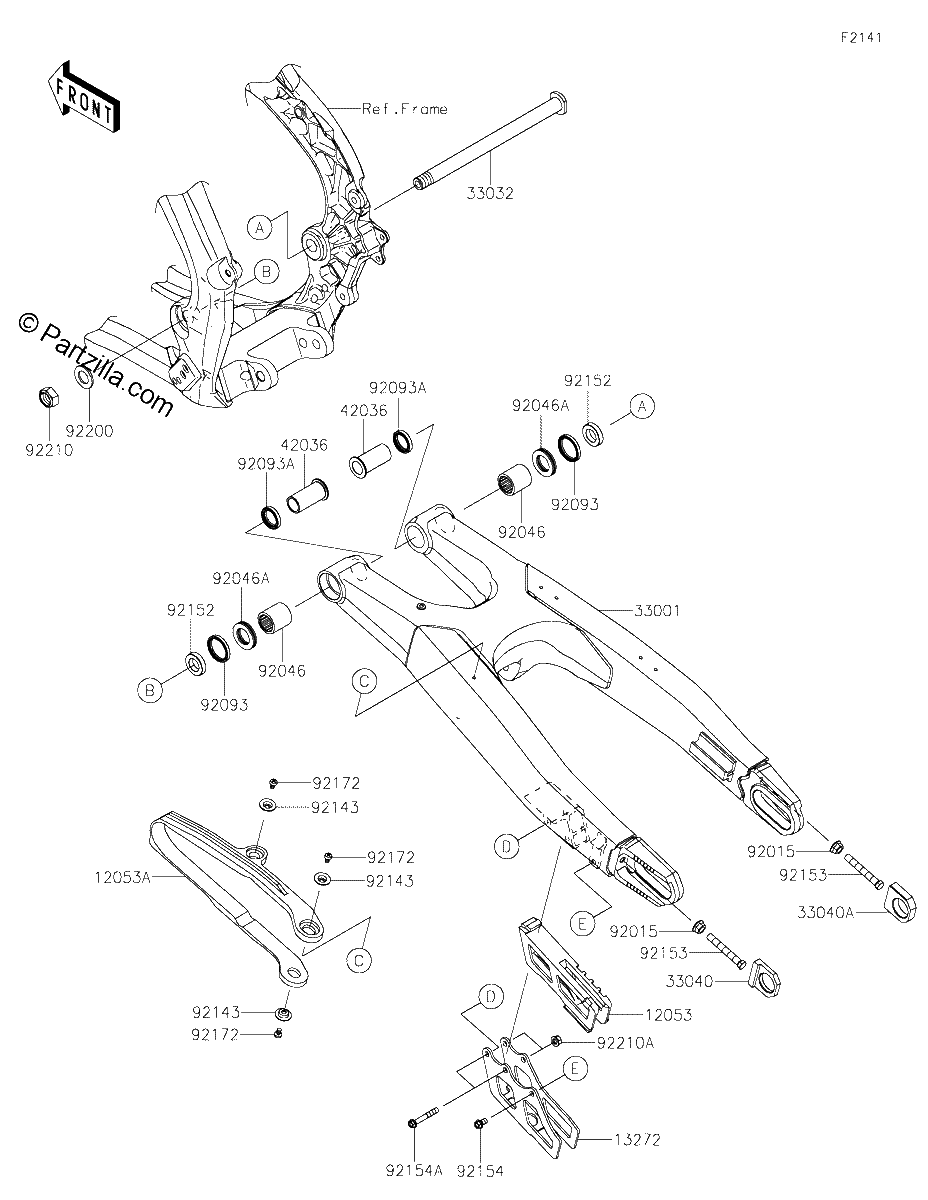

Diagrama de SWINGARM

Repuestos

#12053
12053-0125
GUIDE-CHAIN
$68.83¢34 414
1
#12053A
12053-0223
GUIDE CHAIN
$99.96¢49 979
1
#13272
13272-1169
PLATE,CHAIN GUIDE
$41.20¢20 602
1
#33001
33001-0728
ARM-COMP-SWING
$1204.14¢602 071
1
#33032
33032-0012
SHAFT-SWING ARM
$52.88¢26 438
1
#33040
33040-0050
ADJUSTER CHAIN,Left Hand
$15.51¢7 757
1
#33040A
33040-0080
ADJUSTER-CHAIN,RH
$15.51¢7 757
1
#42036
42036-0784
SLEEVE,17X22X47.3
$31.43¢15 715
1
#92015
92015-1014
NUT,FLANGED,8MM
$0.68¢339
1
#92046
92046-1174
BEARING-NEEDLE,TA2230Z
$38.65¢19 326
1
#92046A
92046-1240
BEARING NEEDLE,NTBR22356E01
$17.28¢8 642
1
#92093A
92093-1435
SEAL,SDO22X29X5
$8.03¢4 013
1
#92093
92093-1434
SEAL,SDO29X35X4.5
$8.33¢4 163
1
#92143
92143-1676
COLLAR
$5.60¢2 800
1
#92152
92152-2222
COLLAR,17.1X29X6.7
$12.93¢6 463
1
#92153
92153-0620
BOLT,8X56
$3.40¢1 702
1
#92154A
92154-2968
BOLT,6X40
$0.95¢477
1
#92154
92154-2963
BOLT,6X10
$0.75¢374
1
#92172
92172-0119
SCREW,5X8
$1.84¢920
1
#92200
92200-0285
WASHER,17.2X30X2.3
$3.58¢1 788
1
#92210
92210-0285
NUT,LOCK,16MM
$19.79¢9 896
1
#92210A
92210-0630
NUT,FLANGED,6MM
$1.75¢874
1
