CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

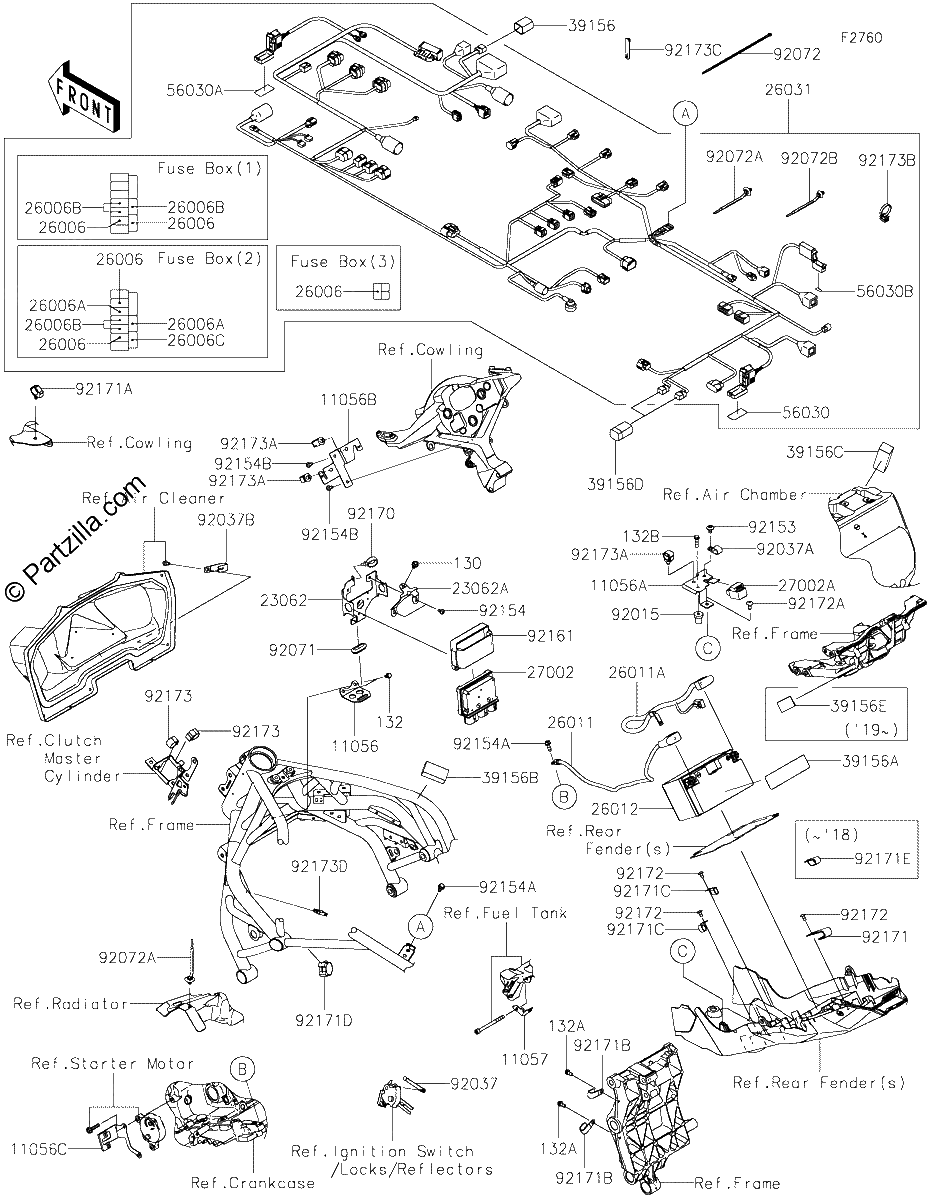

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.66¢831
1
#132A
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.26¢631
1
#132B
132BA0622
BOLT FLANGED SMALL,6X22
$1.95¢975
1
#11056
11056-7100
BRACKET,RELAY BRKT.,LWR
$148.76¢74 381
1
#11056A
11056-7175
BRACKET,RR WHEEL SPEED SENSOR
$298.45¢149 225
1
#11056B
11056-7378
BRACKET,HARNESS CONNECTOR
$82.66¢41 331
1
#11056C
11056-7543
BRACKET,STARTER
$10.97¢5 488
1
#11057
11057-0040
BRACKET,FUEL PUMP CONNECTOR
$5.40¢2 700
1
#23062
23062-0844
BRACKET COMP,RELAY BOX
$646.55¢323 275
1
#23062A
23062-0845
BRACKET-COMP,RELAY BRKT.,UPP
$447.24¢223 619
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26011
26011-0908
WIRE LEAD,BATTERY( )
$59.23¢29 613
1
#26011A
26011-0909
WIRE LEAD,BATTERY(+)
$81.61¢40 806
1
#26012
26012-0564
BATTERY,YTZ10S,12V 8.6AH
No Disponible
1
#26031
26031-2190
HARNESS,MAIN
$3214.29¢1 607 144
1
#27002
27002-0042
RELAY-ASSY
$162.96¢81 481
1
#27002A
27002-1062
RELAY-ASSY
$51.68¢25 838
1
#39156
39156-1886
PAD,DIAG. CONNECTOR
$2.10¢1 050
1
#39156A
39156-1895
PAD,30X115X0.36
$15.20¢7 600
1
#39156B
39156-1940
PAD,25X50X20
$2.10¢1 050
1
#39156C
39156-1945
PAD,25X65X20
$2.10¢1 050
1
#39156D
39156-2112
PAD,DIAG CONNECTOR
$15.79¢7 894
1
#39156E
39156-2495
PAD,30X15X1
$1.04¢519
1
#56030B
56030-0906
LABEL,FUSE BOX 3
$3.10¢1 550
1
#56030A
56030-0903
LABEL,FUSE BOX 1
$3.10¢1 550
1
#56030
56030-0902
LABEL,FUSE BOX 2
$3.10¢1 550
1
#92015
92015-1692
NUT,RUBBER,6MM
$7.30¢3 650
1
#92037A
92037-1608
CLAMP
$8.05¢4 025
1
#92037B
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.99¢994
1
#92037
92037-1163
CLAMP,SPEED,L=58
$6.42¢3 213
1
#92071
92071-1187
GROMMET
$4.92¢2 463
1
#92072A
92072-1392
BAND
$3.70¢1 850
1
#92072B
92072-1414
BAND
$3.70¢1 850
1
#92072
92072-0782
BAND,202X3.6
$1.96¢981
1
#92153
92153-0410
BOLT,SOCKET,6X10
$2.58¢1 288
1
#92154A
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92154B
92154-0917
BOLT,SOCKET,5X12
$4.68¢2 338
1
#92154
92154-0211
BOLT,SOCKET,5X10
$2.00¢1 000
1
#92161
92161-0203
DAMPER,RELAY BOX
$11.73¢5 863
1
#92170
92170-1067
CLAMP
$7.41¢3 706
1
#92171B
92171-0739
CLAMP
$5.79¢2 894
1
#92171A
92171-0316
CLAMP,BRAKE HOSE
$3.81¢1 906
1
#92171C
92171-0766
CLAMP
$5.79¢2 894
1
#92171D
92171-1559
CLAMP,25MM DIA.
$6.31¢3 156
1
#92171E
92171-1597
CLAMP
$10.97¢5 488
1
#92171
92171-0305
CLAMP
$8.34¢4 169
1
#92172A
92172-0284
SCREW,6X16
$1.17¢587
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92173A
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173C
92173-1229
CLAMP,RUBBER PLATE
$4.16¢2 081
1
#92173B
92173-0791
CLAMP
$12.56¢6 281
1
#92173
92173-0127
CLAMP,CLIP
$17.30¢8 650
1
#92173D
92173-1513
CLAMP
$3.85¢1 925
1
