CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

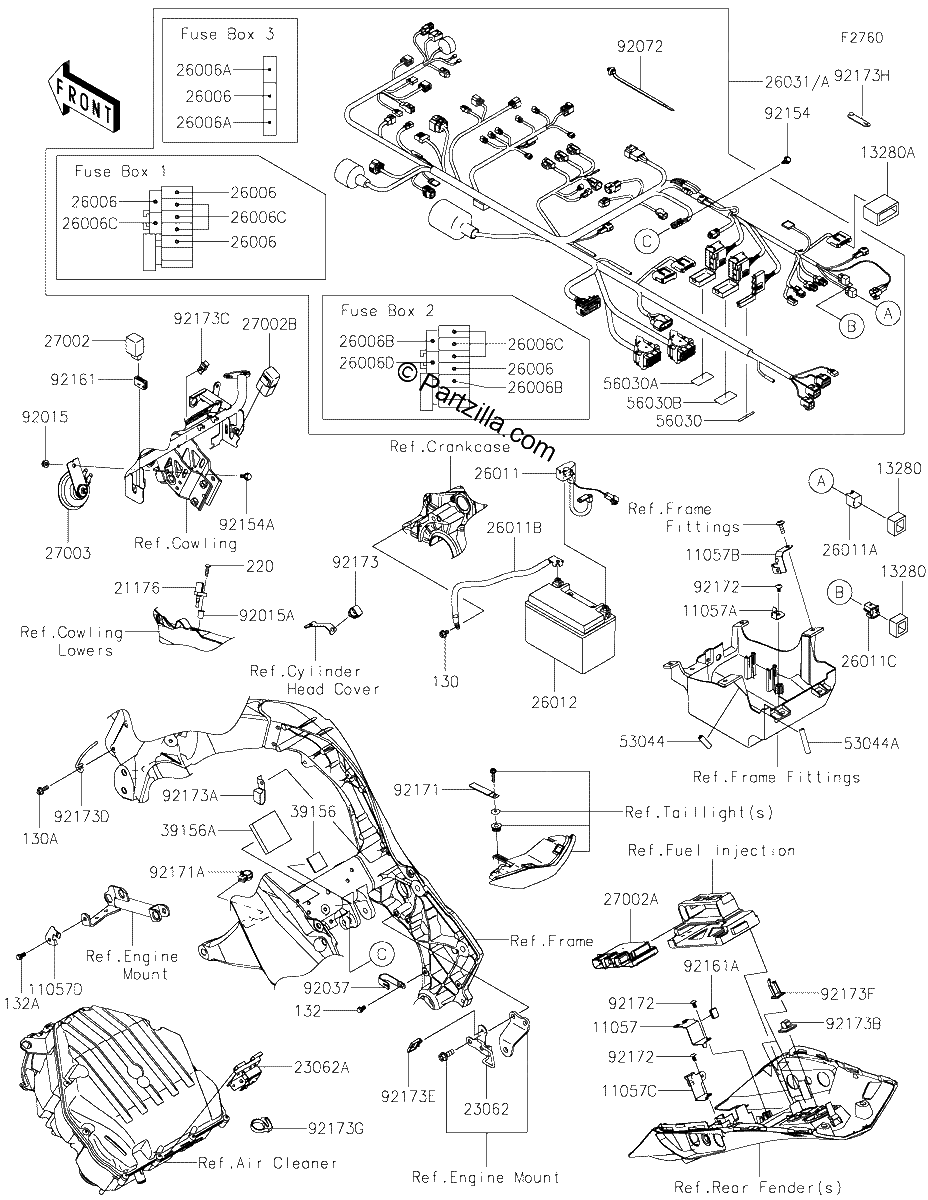

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.26¢631
1
#130A
130BB0616
BOLT FLANGED,6X16
$1.94¢969
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.66¢831
1
#132A
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.26¢631
1
#220
220AB0518
SCREW-PAN-CROS,5X18
$3.65¢1 825
1
#11057
11057-2891
BRACKET,RR SIGNAL LAMP
$4.30¢2 150
1
#11057A
11057-2892
BRACKET,BATTERY(+)
$3.08¢1 538
1
#11057B
11057-2893
BRACKET,FUEL PUMP
$5.74¢2 869
1
#11057C
11057-2894
BRACKET
$5.74¢2 869
1
#11057D
11057-2907
BRACKET,QUICK-SHIFTER CONNECTO
$2.68¢1 338
1
#13280
13280-0959
HOLDER,DIAG CONNECTOR
$2.06¢1 031
1
#13280A
13280-0994
HOLDER
$10.18¢5 088
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$28.36¢14 181
1
#23062A
23062-1263
BRACKET-COMP,O2 SENSOR
$18.35¢9 175
1
#23062
23062-0811
BRACKET COMP,CABLE GUIDE
$20.75¢10 375
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26006B
26006-0054
FUSE,MINI BLADE,3A,VIOLET
$6.69¢3 344
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
1
#26011
26011-0252
WIRE LEAD,BATTERY(+)
$52.46¢26 231
1
#26011A
26011-0275
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
1
#26011B
26011-0822
WIRE LEAD,BATTERY( )
$35.85¢17 925
1
#26011C
26011-1901
WIRE-LEAD,DIAG CONNECTOR
$44.84¢22 419
1
#26012
26012-0838
BATTERY,YTX9 BS,12V 8AH
No Disponible
1
#26031
26031-2864
HARNESS,MAIN
$1517.76¢758 881
1
#26031
26031-2865
HARNESS,MAIN
$1517.76¢758 881
1
#27002B
27002-1086
RELAY Assembly
$42.02¢21 013
1
#27002A
27002-0042
RELAY-ASSY
$162.96¢81 481
1
#27002
27002-0006
RELAY Assembly,SIGNAL LAMP
$65.61¢32 806
1
#27003
27003-0126
HORN
$84.98¢42 488
1
#39156A
39156-2216
PAD,60X60X10
$14.70¢7 350
1
#39156
39156-1766
PAD,30X30X3
$1.38¢688
1
#53044A
53044-0012
TRIM,L=40
$2.84¢1 419
1
#53044
53044-0001
TRIM,L=30
$2.68¢1 338
1
#56030A
56030-1376
LABEL,FUSE BOX1
$3.05¢1 525
1
#56030B
56030-1528
LABEL,FUSE BOX2
$2.90¢1 450
1
#56030
56030-0400
LABEL,FUSE BOX3
$4.59¢2 294
1
#92015A
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92037
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.99¢994
1
#92072
92072-1414
BAND
$3.70¢1 850
1
#92154A
92154-1851
BOLT,FLANGED,6X16
$2.04¢1 019
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92161A
92161-1696
DAMPER,16X23X2
$1.09¢544
1
#92161
92161-0283
DAMPER,SIGNAL RELAY
$2.84¢1 419
1
#92171A
92171-1722
CLAMP,EDGE CLIP
$9.25¢4 625
1
#92171
92171-0652
CLAMP,L=60
$2.41¢1 206
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.35¢675
1
#92173G
92173-1632
CLAMP,SNP-22-0W
$5.84¢2 919
1
#92173F
92173-1269
CLAMP,LOCKING WIRE SADDLE
$4.88¢2 438
1
#92173E
92173-1242
CLAMP,CABLE CLIP
$1.72¢862
1
#92173D
92173-1199
CLAMP,IRON WIRE
$6.13¢3 063
1
#92173C
92173-1163
CLAMP
$1.63¢813
1
#92173B
92173-1055
CLAMP,DRAIN
$6.49¢3 244
1
#92173A
92173-1008
CLAMP,84MM
$5.47¢2 738
1
#92173
92173-0736
CLAMP,12MM DIA.
$5.01¢2 506
1
#92173H
92173-2198
CLAMP
$1.55¢775
1
