COWLING UPPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

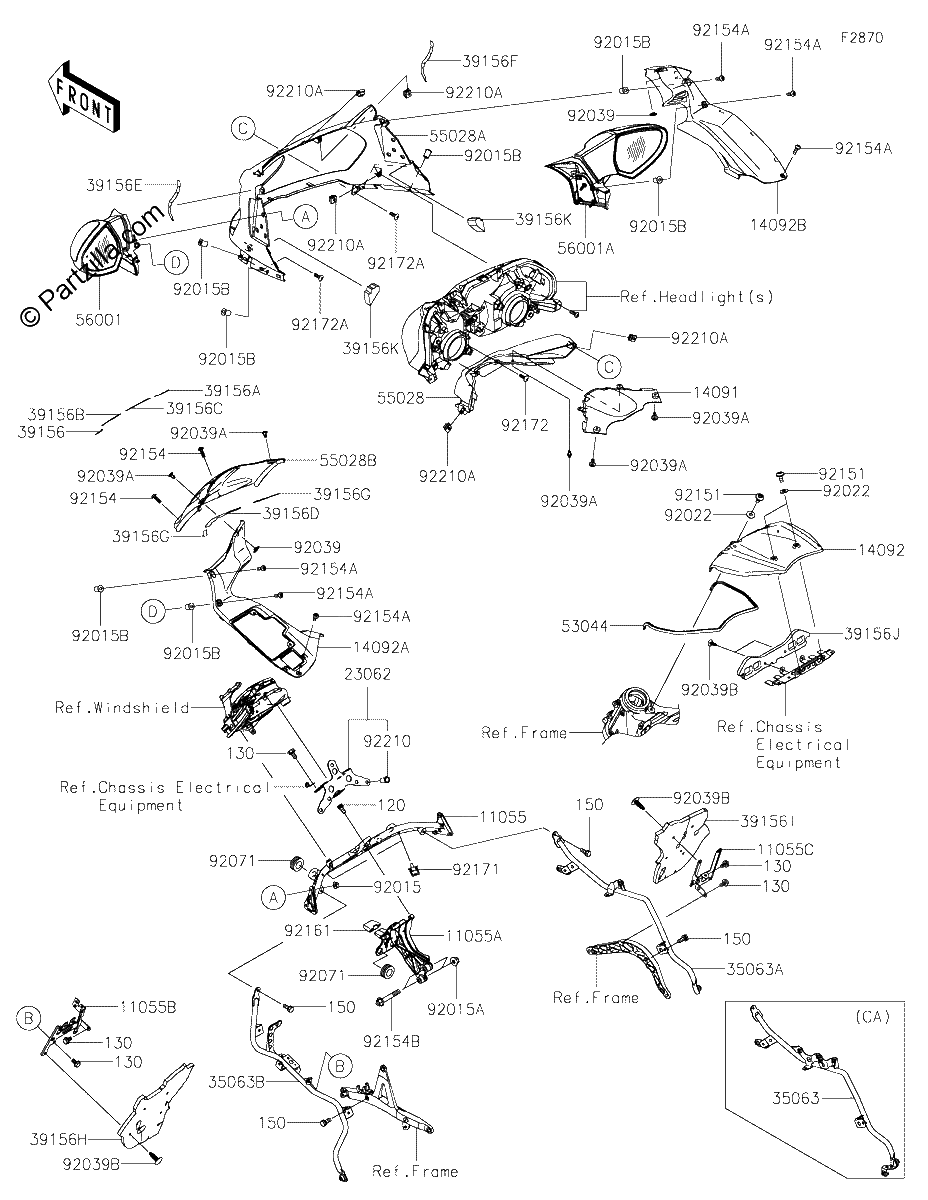

Diagrama de COWLING UPPER

Repuestos

#120
120CA0612
BOLT-SOCKET,6X12
$1.53¢765
1
#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#150
150R0616
BOLT WS,6X16
$3.45¢1 725
1
#11055
11055-0143
BRACKET,MIRROR
$200.77¢100 384
1
#11055A
11055-1804
BRACKET,COWLING
$197.49¢98 745
1
#11055B
11055-1835
BRACKET,PAD,LH
$13.87¢6 935
1
#11055C
11055-1836
BRACKET,PAD,Right Hand
$10.91¢5 457
1
#14091
14091-0859
COVER,SHROUD,CNT
$42.08¢21 039
1
#14092
14092-0112
COVER,FUEL TANK
$149.11¢74 554
1
#14092A
14092-0113
COVER,INNER,LH
$94.40¢47 202
1
#14092B
14092-0114
COVER,INNER,Right Hand
$94.40¢47 202
1
#23062
23062-0036
BRACKET-COMP,METER
$203.91¢101 953
1
#35063
35063-0663
STAY,COWLING,Right Hand
$289.29¢144 647
1
#35063A
35063-0675
STAY,COWLING,RH | [CN,US]
$289.29¢144 647
1
#35063B
35063-0685
STAY,COWLING,Left Hand
$289.29¢144 647
1
#39156K
39156-2155
PAD
$14.52¢7 262
1
#39156J
39156-0590
PAD,CNT
$7.85¢3 927
1
#39156I
39156-0589
PAD,RH
$26.45¢13 225
1
#39156
39156-0378
PAD,UPP COWLING,CNT,LH
$6.24¢3 122
1
#39156A
39156-0379
PAD,Upper COWLING,CNT,Right Hand
$6.24¢3 122
1
#39156B
39156-0380
PAD,UPP COWLING,CNT,LH
$7.77¢3 887
1
#39156C
39156-0381
PAD,UPP COWLING,CNT,RH
$7.77¢3 887
1
#39156D
39156-0382
PAD,UPP COWLING,CNT
$20.14¢10 068
1
#39156E
39156-0384
PAD,Upper COWLING,Left Hand
$24.62¢12 311
1
#39156F
39156-0385
PAD,UPP COWLING,RH
$7.77¢3 887
1
#39156G
39156-0398
PAD,UPP COWLING,CNT
$2.28¢1 138
1
#39156H
39156-0588
PAD,Left Hand
$26.45¢13 225
1
#53044
53044-0054
TRIM
$48.12¢24 058
1
#55028
55028-0192
COWLING,INTAKE
$65.11¢32 556
1
#55028A
55028-0198-60S
COWLING,Upper,M M F SILVER
$582.59¢291 295
1
#55028B
55028-0306
COWLING,CNT
$101.29¢50 646
1
#56001
56001-0182-60S
MIRROR Assembly,Left Hand,M M F SILVER
$289.03¢144 515
1
#56001A
56001-0183-60S
MIRROR Assembly,Right Hand,M M F SILVER
$270.77¢135 384
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92015A
92015-1432
NUT,8MM
$5.91¢2 956
1
#92015B
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92022
92022-1143
WASHER,6.5X16X1
$3.59¢1 794
1
#92039A
92039-0051
RIVET
$4.24¢2 122
1
#92039
92039-0048
RIVET
$4.45¢2 225
1
#92039B
92039-0090
RIVET
$3.22¢1 610
1
#92071
92071-1131
GROMMET
$7.11¢3 553
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.17¢1 087
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154B
92154-1348
BOLT,FLANGED,8X53
$3.78¢1 892
1
#92161
92161-0412
DAMPER,HEAD LAMP
$9.11¢4 554
1
#92171
92171-1665
CLAMP
$2.60¢1 299
1
#92172
92172-0265
SCREW,TAPPING,5X14
$1.24¢621
1
#92172A
92172-0322
SCREW,5X16
$1.87¢937
1
#92210
92210-0324
NUT,POP,6MM,L=16.5
$5.04¢2 519
1
#92210A
92210-0571
NUT
$3.22¢1 610
1
