REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

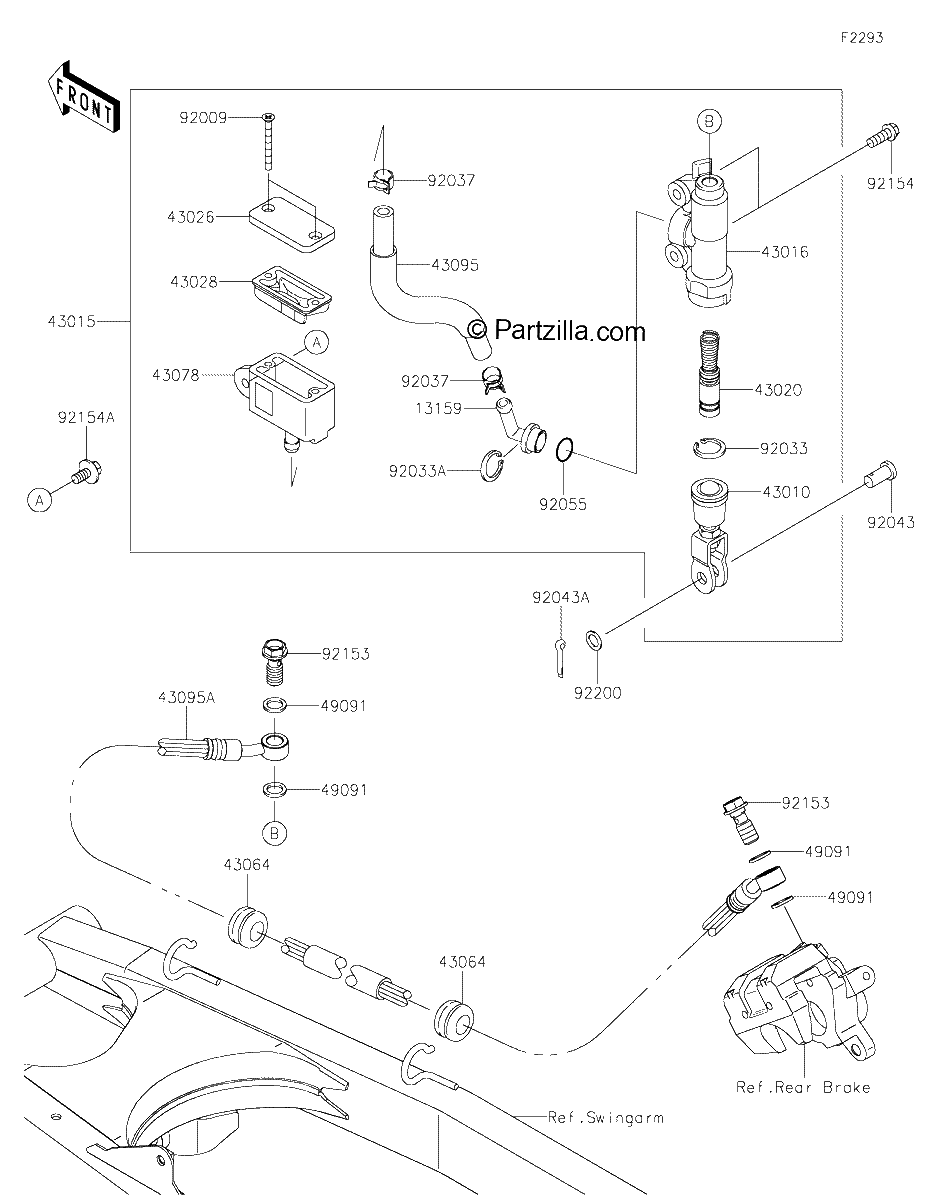

Diagrama de REAR MASTER CYLINDER

Repuestos

#13159
13159-1056
CONNECTOR
$13.95¢6 975
1
#43010
43010-1068
ROD-ASSY-BRAKE
$58.34¢29 169
1
#43015
43015-0587
CYLINDER-ASSY-MASTER,RR
$375.51¢187 756
1
#43016
43016-1149
CYLINDER-MASTER
$244.13¢122 063
1
#43020
43020-1094
PISTON-COMP-BRAKE
$74.31¢37 156
1
#43026
43026-1075
CAP-BRAKE
$13.47¢6 738
1
#43028
43028-1067
DIAPHRAGM
$18.39¢9 194
1
#43064
43064-006
GROMMET,HOSE CLAMP
$4.29¢2 144
1
#43078
43078-1189
RESERVOIR
$34.54¢17 269
1
#43095
43095-0550
HOSE-BRAKE,RR MASTER CYLINDER
$18.17¢9 087
1
#43095A
43095-0803
HOSE-BRAKE,589MM
$113.25¢56 625
1
#49091
49091-0001
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
1
#92009
92009-1596
SCREW,4X40
$3.93¢1 963
1
#92033A
92033-1186
RING-SNAP,20.5MM
$4.92¢2 463
1
#92033
92033-0079
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
1
#92037
92037-1710
CLAMP
$9.83¢4 913
1
#92043A
92043-0766
PIN,COTTER,2.0X15
$1.24¢619
1
#92043
92043-0004
PIN
$11.06¢5 531
1
#92055
92055-0766
RING-O,14.8X2.4
$8.39¢4 194
1
#92153
92153-0029
BOLT,OIL,L=23
$1.69¢844
1
#92154A
92154-1231
BOLT,FLANGED,6X14
$2.73¢1 363
1
#92154
92154-0460
BOLT,FLANGED,6X16
$1.76¢881
1
#92200
92200-1980
WASHER,8.5X13X1
$4.13¢2 063
1
